| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |

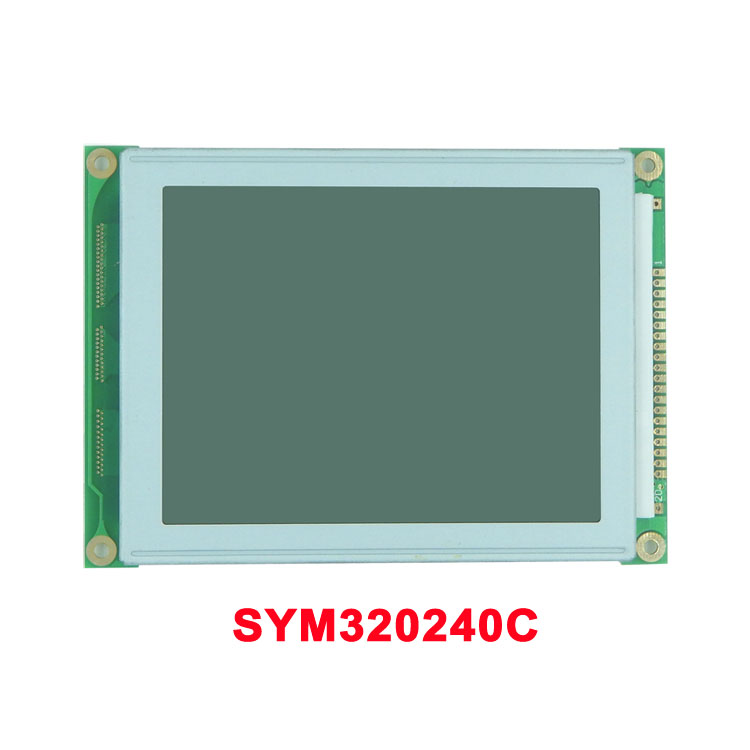

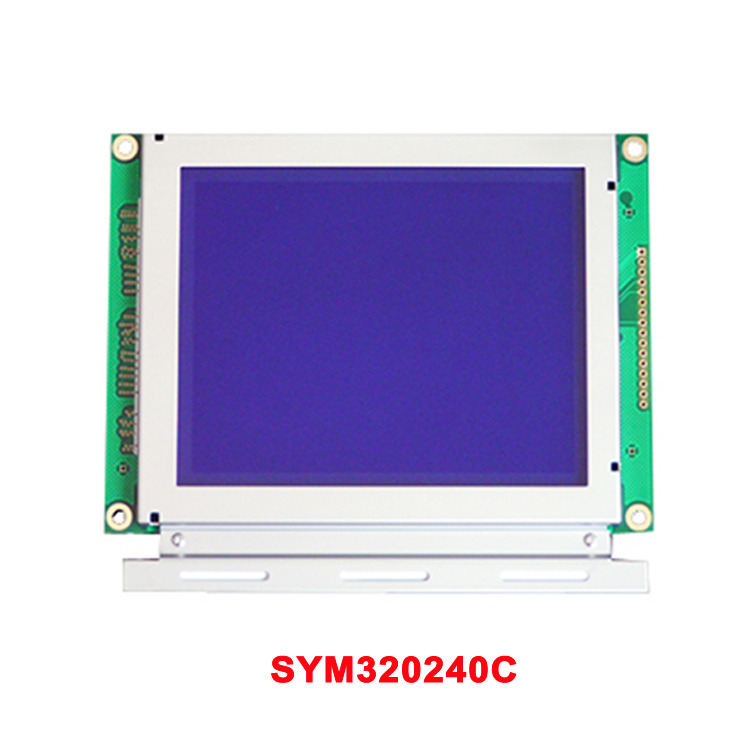

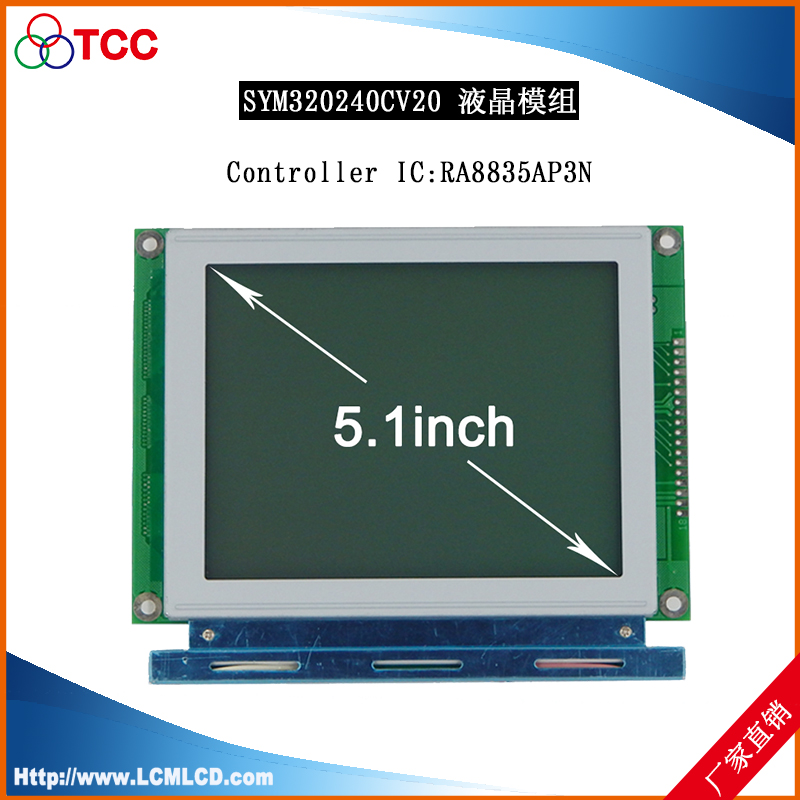

SYM320240CV20  |
320240 | 139.0*114.8*13.0 | 103.0*79.0 | 0.27*0.27 | 5V | CCFL | S1D13305/RA8835 | 圖片 |

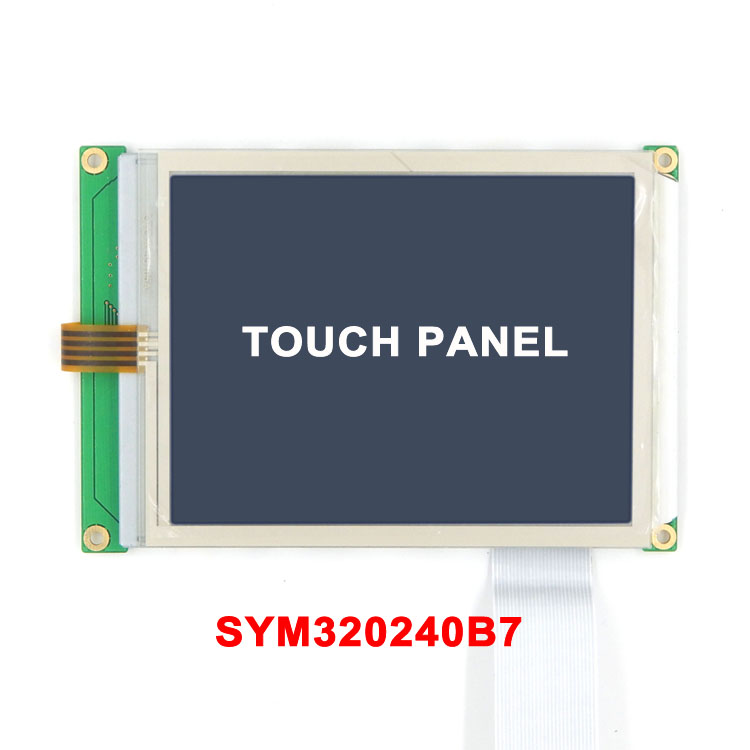

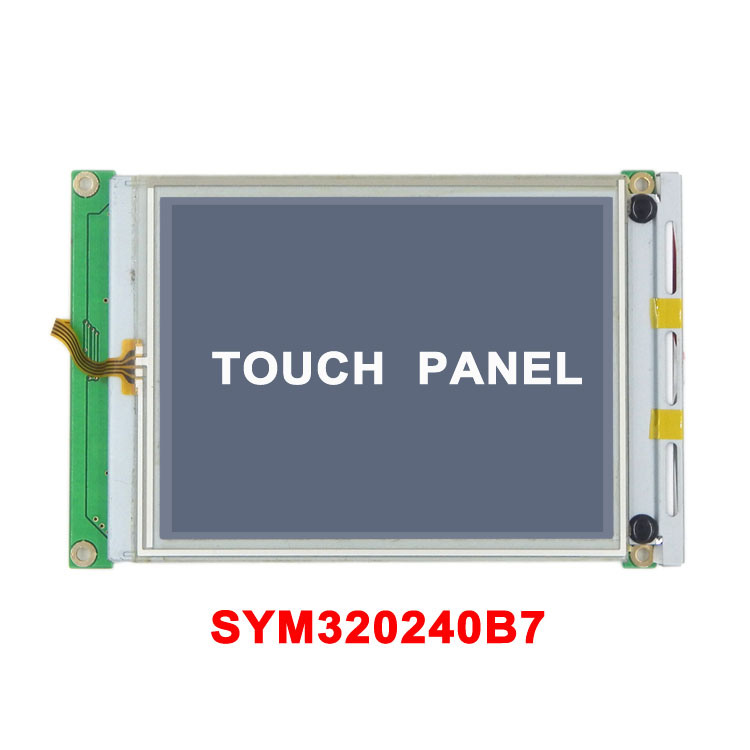

| SYM320240B7V351 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8835+TSD2046 | 圖片 |
| SYM320240B7V62 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8835+ADS7843 | 圖片 |

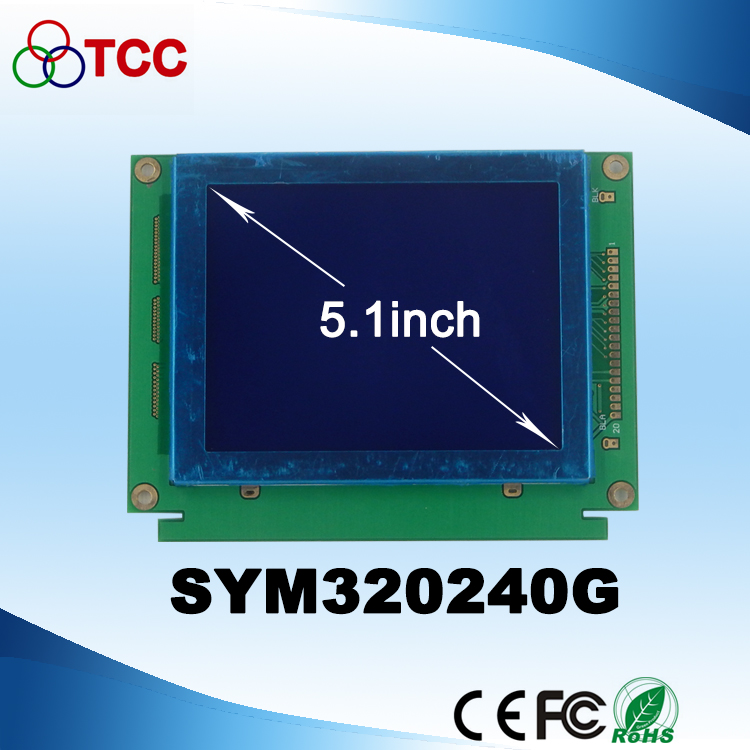

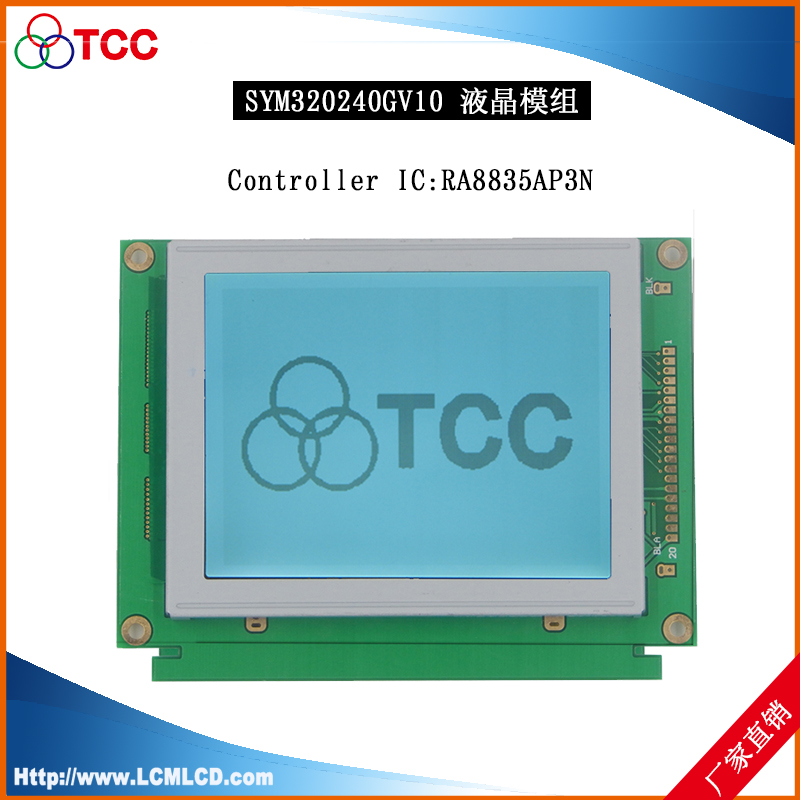

| SYM320240GV10 |
320x240 | 148.0*114.5*13.0 | 103.0*79.0 | 0.27*0.27 | 5Vor3.3V | LED | RA8835 | 圖片 |

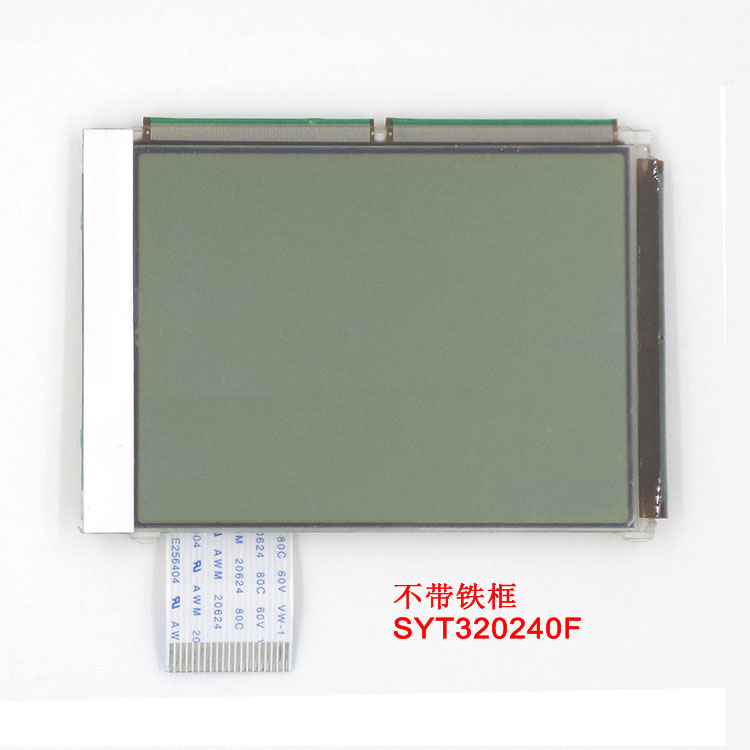

| SYT320240FV10 |
320240 | 94.0*66.6*8.5 | 78.8*59.6 | 0.23*0.23 | 5V | LED | RA8835 | 圖片 |

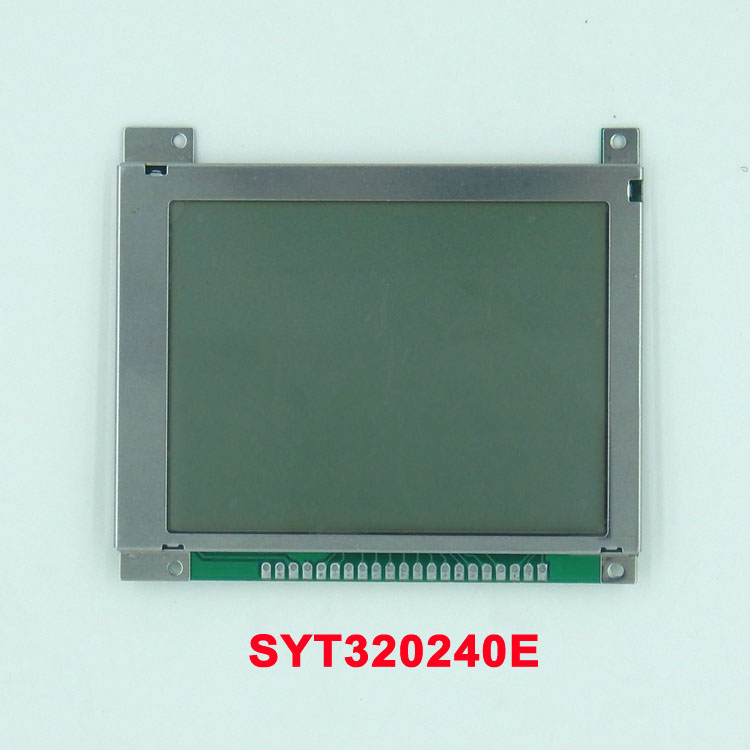

| SYT320240EV11 |
320240 | 96.5*83.5*9.5 | 80.5*61.1 | 0.23*0.23 | 5V | LED | RA8835 | 圖片 |

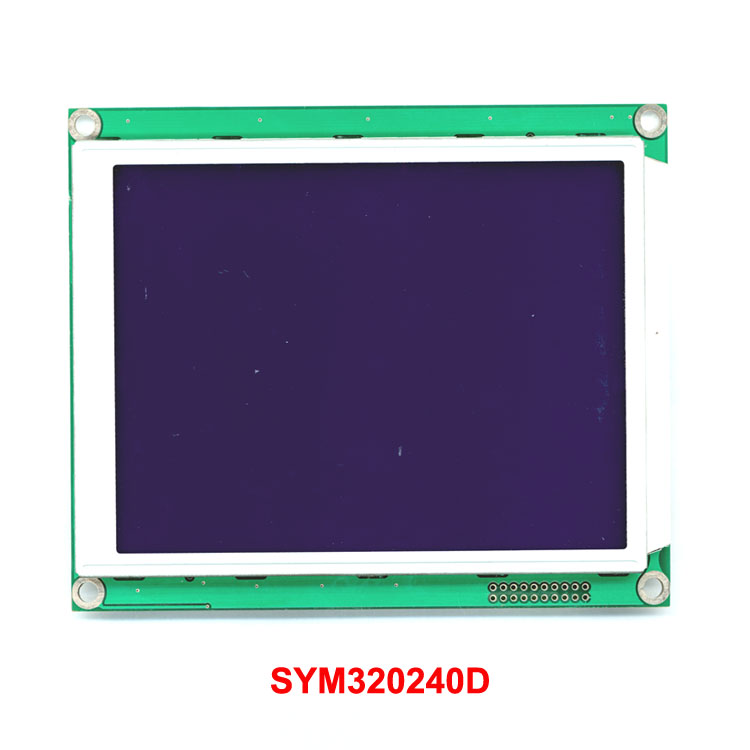

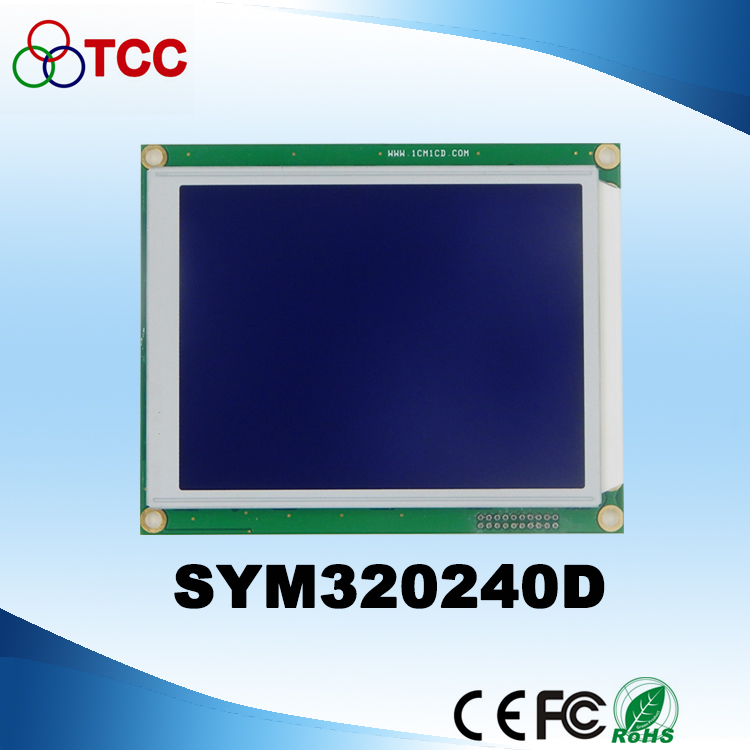

| SYM320240D3V10 |
320240 | 148.0*120.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | S1D13700 | 圖片 |
| SYM320240DV21 |
320240 | 148.0*120.0*11.0 | 120.0*92.0 | 0.34*0.34 | 5V | LED | RA8835P3N | 圖片 |
| SYM320240C1V11 |
320240 | 139.0*100.0*13.0 | 103.0*79.0 | 0.27*0.27 | 5Vor3.3V | LED/CCFL | RA8835 | 圖片 |
| SYM50081CV10 |
320240 | 139.0*114.8*13.0 | 103.0*79.0 | 0.27*0.27 | 5V | LED/CCFL | NC | 圖片 |

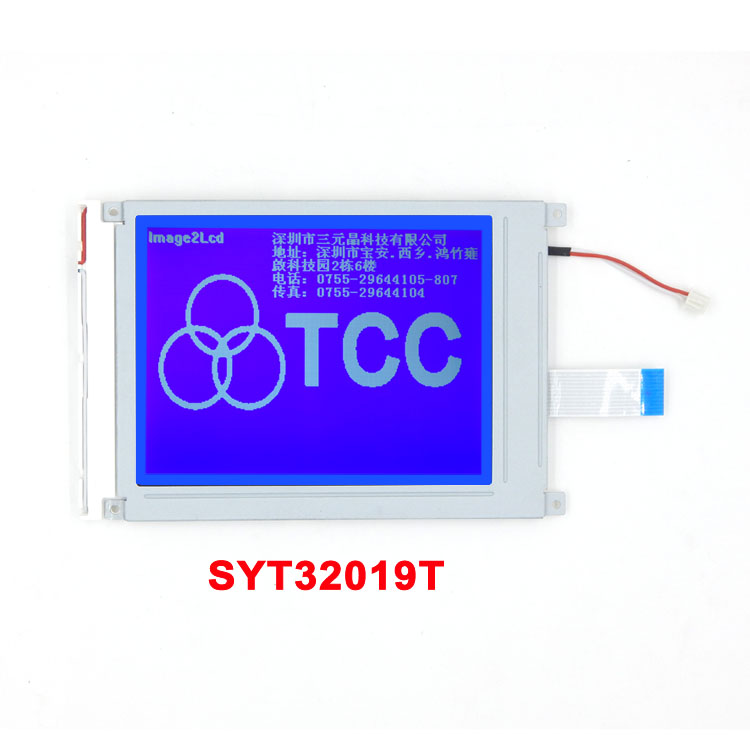

| SYT32019TV16 |
320240 | 165.6*109.0*7.5 | 121.0*91.7 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | NC | 圖片 |

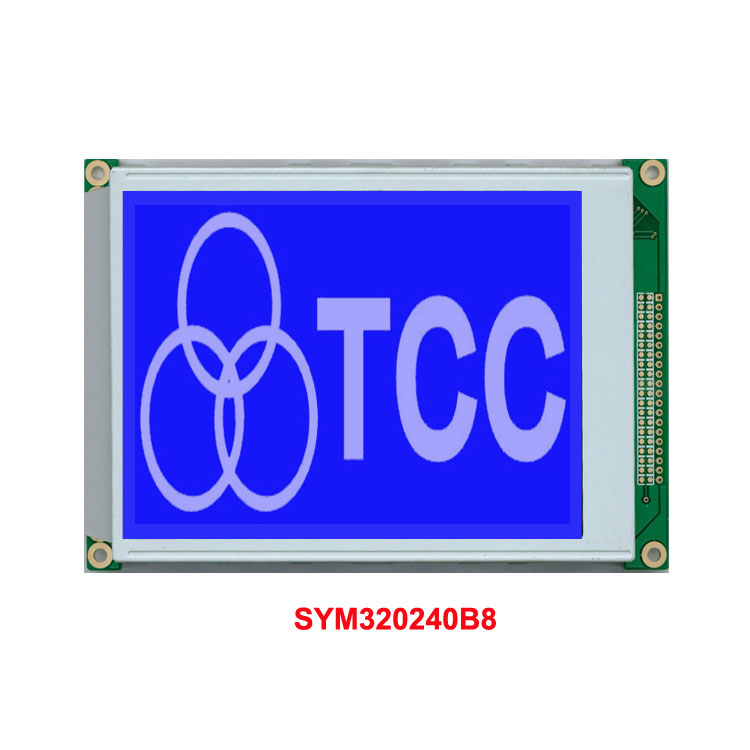

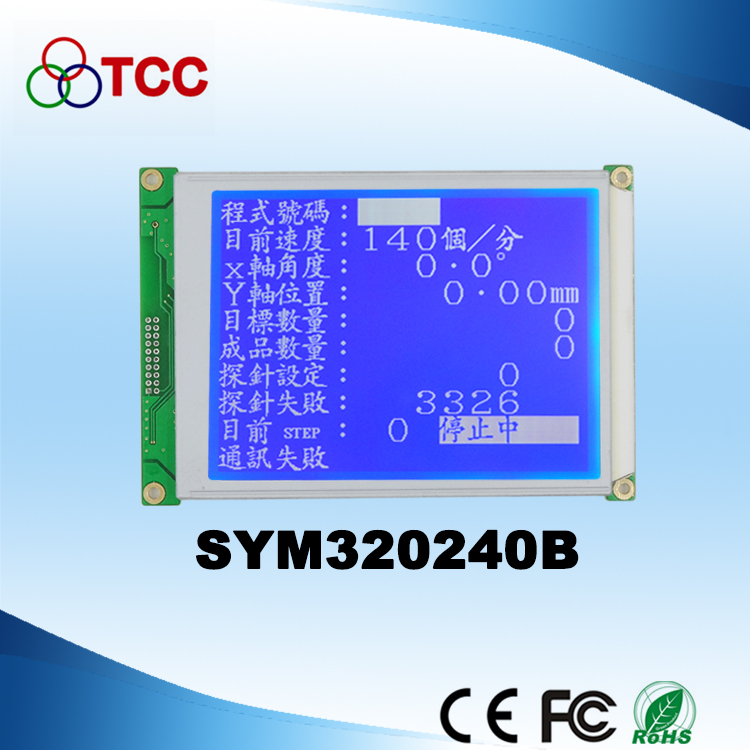

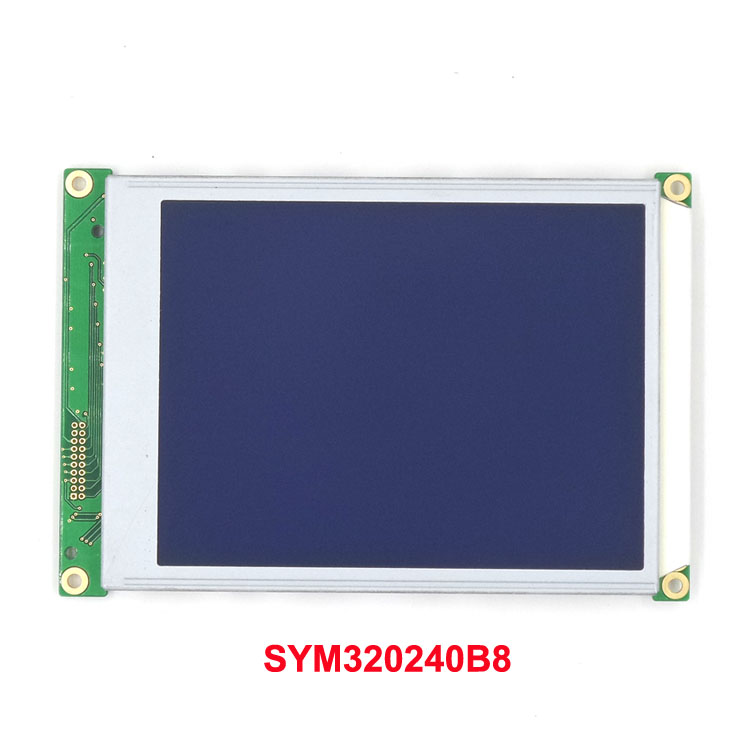

| SYM320240B8V50 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8835 | 圖片 |
| SYM320240B8V40 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8835 | 圖片 |
| SYM320240B8V32 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8835 | 圖片 |
| SYM320240B7V61 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8835+ADS7843 | 圖片 |

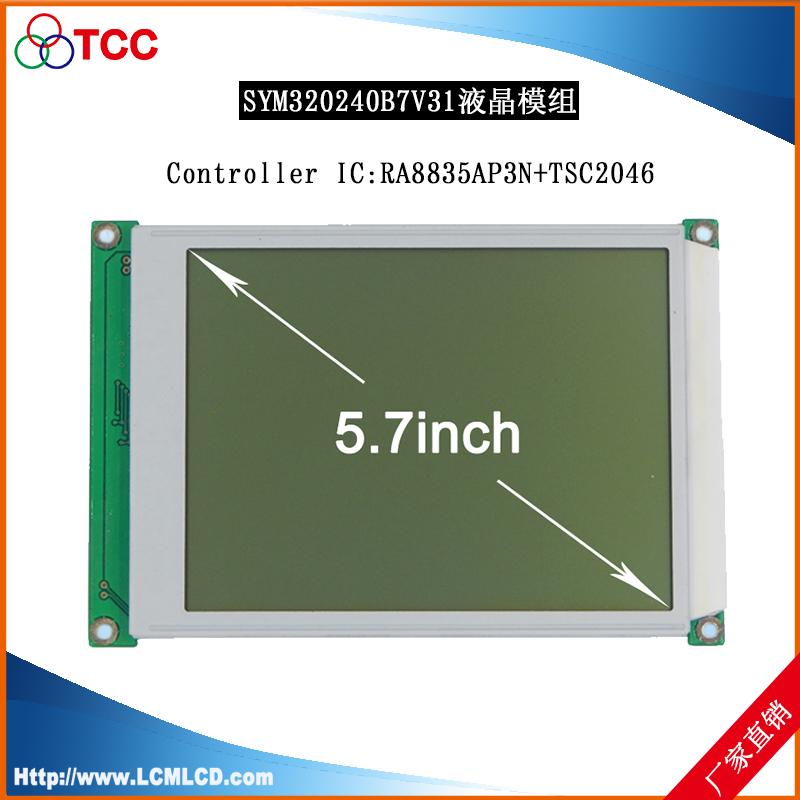

| SYM320240B7V31 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8835+TSD2046 | 圖片 |

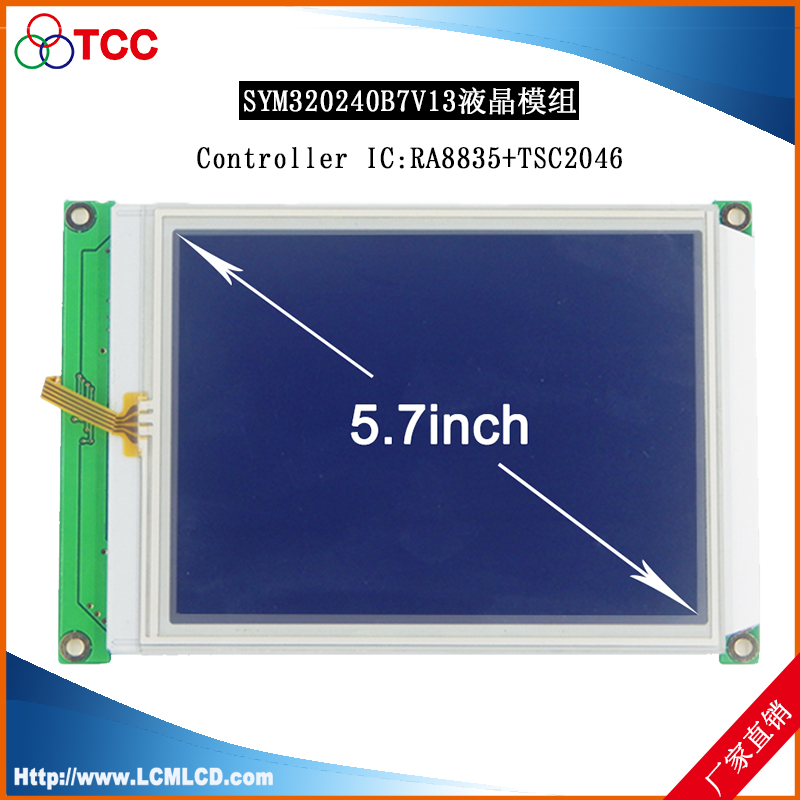

| SYM320240B7V13 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8835+TSD2046 | 圖片 |
| SYM320240B7V12 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8835+TSD2046 | 圖片 |

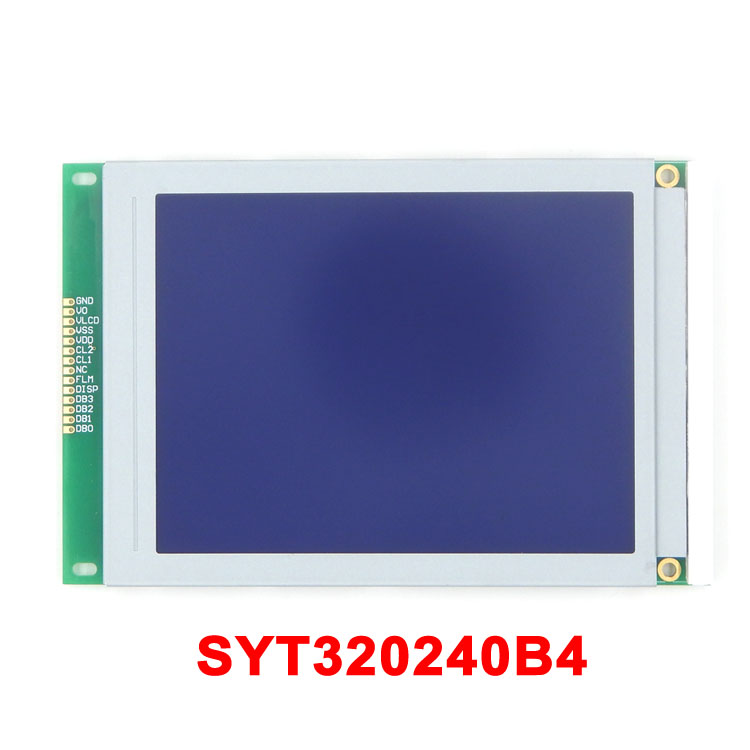

| SYT320240B4V11 |
320240 | 167.0*109.0*8.6 | 122.0*92.0 | 0.33*0.33 | 5V | LED/CCFL | NC | 圖片 |
| SYT320240B4V10 |
320240 | 167.0*109.0*8.6 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | NC | 圖片 |

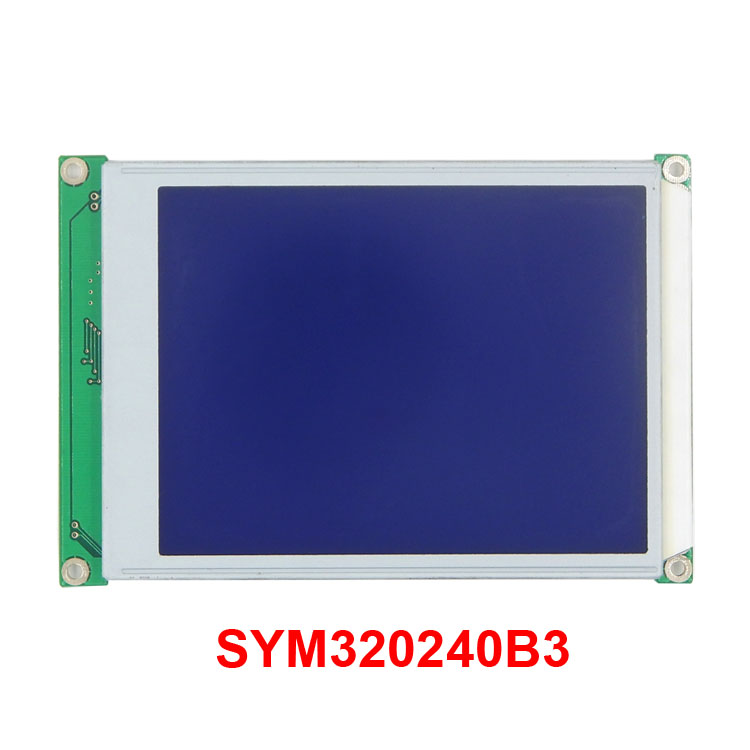

| SYM320240B3V20 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5V | LED/CCFL | S1D13700 | 圖片 |
| SYM320240AV11 |
320240 | 143.0*96.8*10.0 | 104.0*79.3 | 0.27*0.27 | 5Vor3.3V | LED | RA8835 | 圖片 |

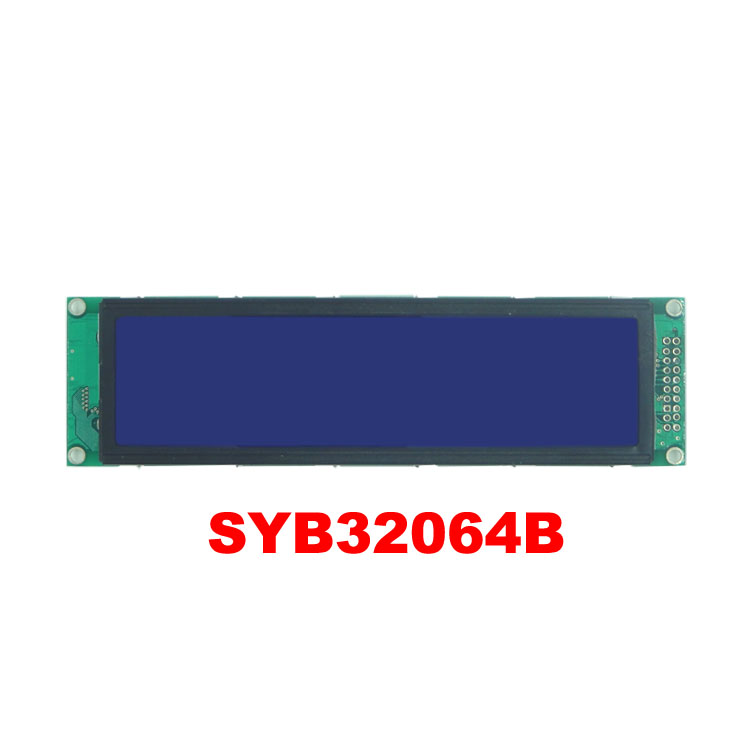

| SYB32064BV10 |
32064 | 165.0*45.0*13.5 | 135.8*33.6 | 0.36*0.36 | 5V | LED | T6963orSAP1024B | 圖片 |
| SYM32064AV22 |
32064 | 165.0*45.0*13.5 | 135.8*33.6 | 0.36*0.36 | 5V | LED | LC7981 | 圖片 |

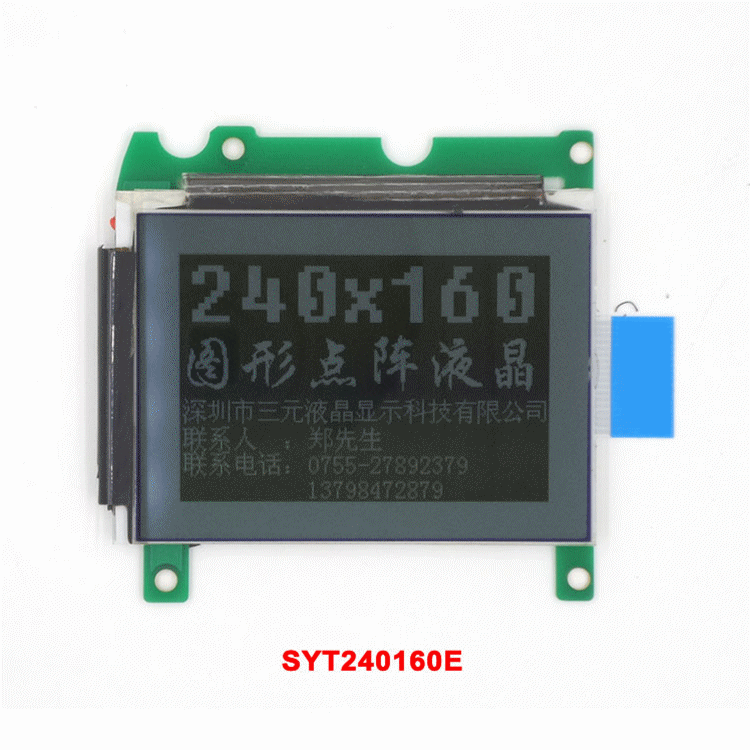

| SYT240160EV20 |
240160 | 74.6*54.9*6.5 | 67.6*47.5 | 0.225*0.225 | 5Vor3.3V | LED | NC | 圖片 |
| SYB240160DV31 |
240160 | 138.9*96.5*10.5 | 103.5*80.0 | 0.37*0.40 | 5V | LED | RA8835 | 圖片 |

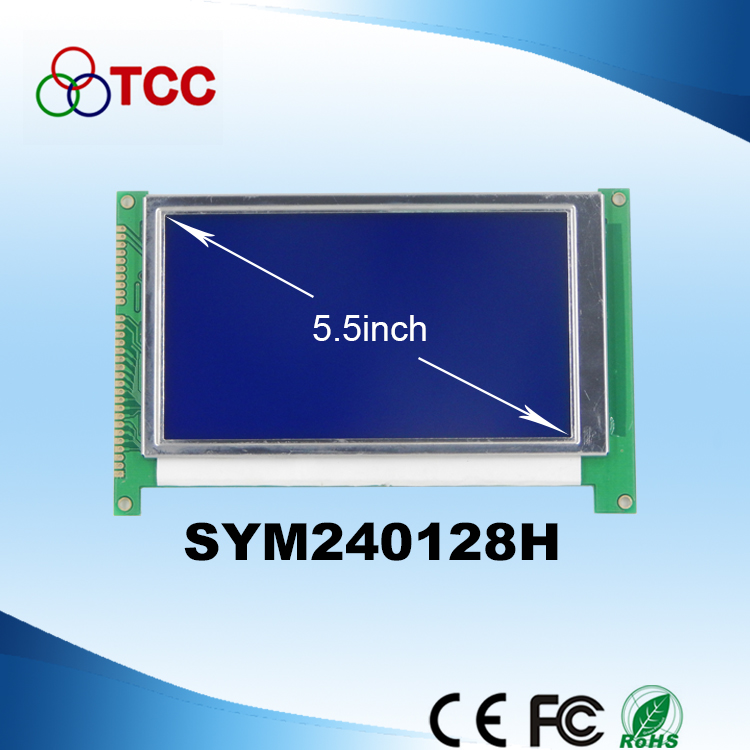

| SYM240128HV21 |
240x128 | 159.0*101.0*11.0 | 124.0*70.0 | 0.47*0.47 | 5Vor3.3V | LED | LC7981orT6963 | 圖片 |

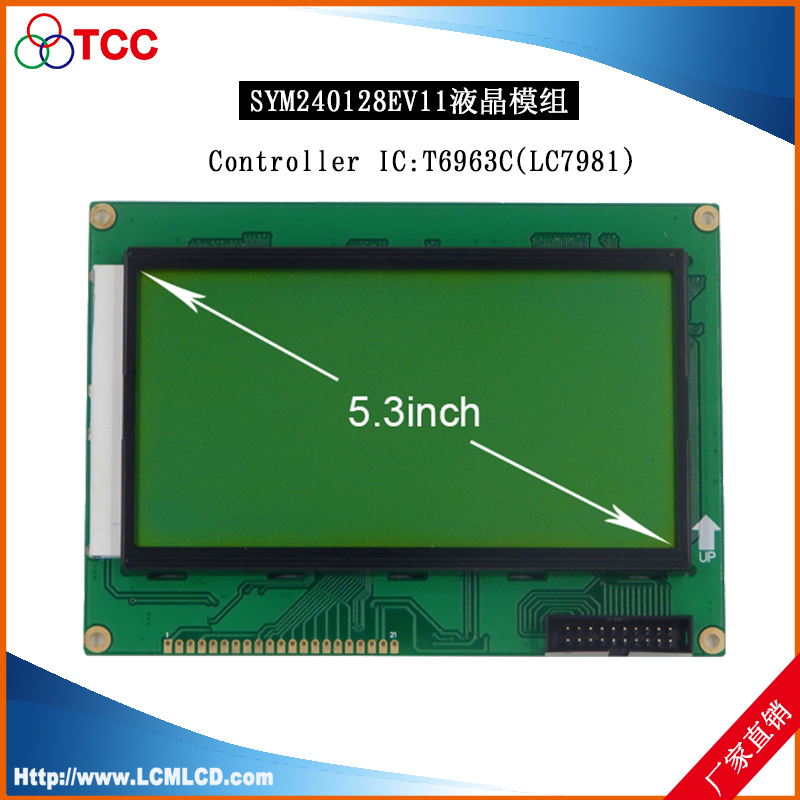

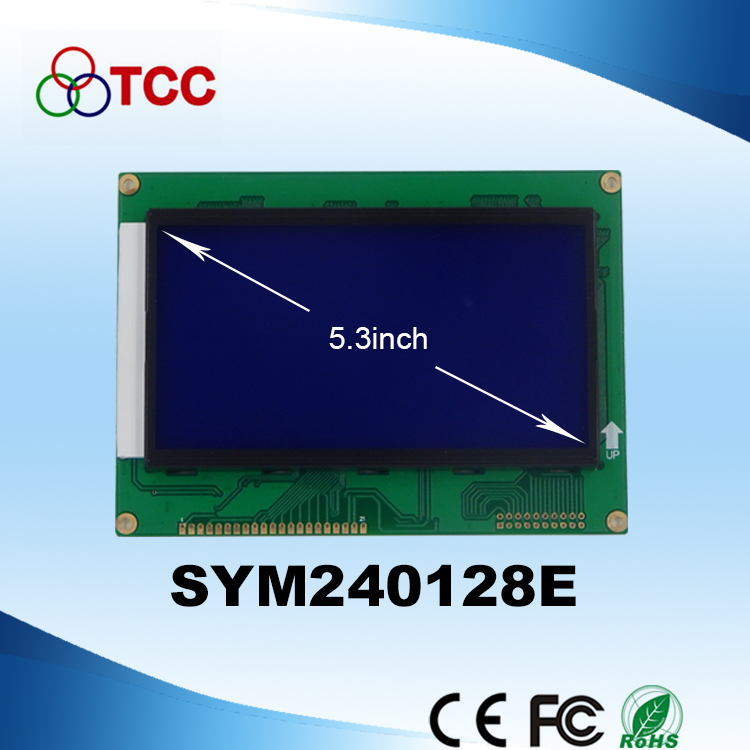

| SYM240128EV11 |
240x128 | 144.0*104.0*13.5 | 121.4*63.5 | 0.42*0.42 | 5Vor3.3V | LED | LC7981orT6963 | 圖片 |

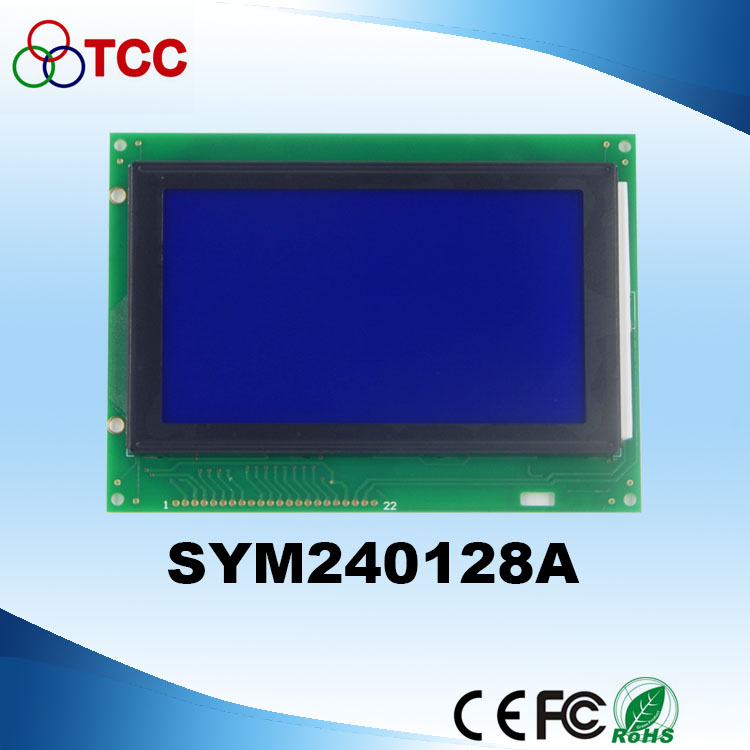

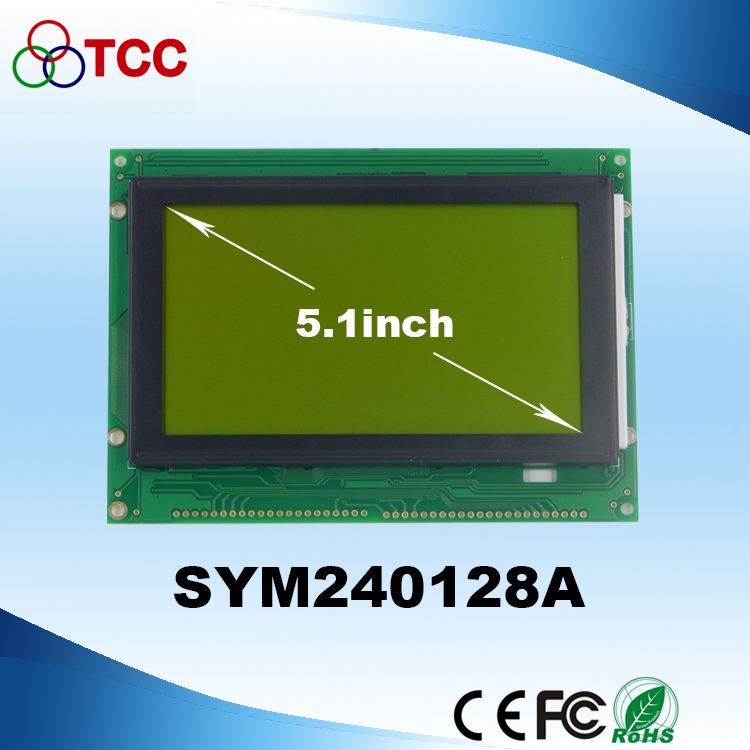

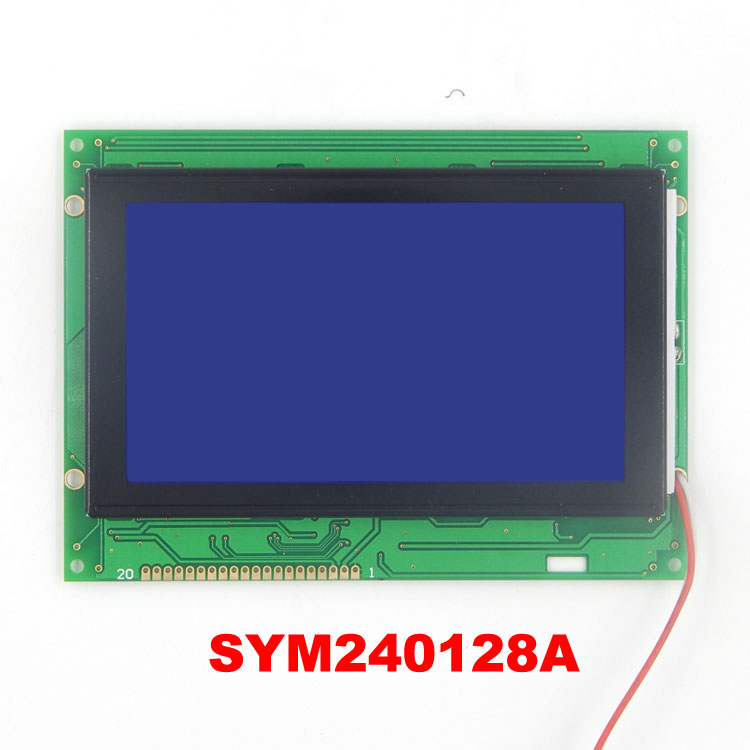

| SYM240128A4V10 |
240128 | 144.0*104.0*13.0 | 114.0*64.0 | 0.40*0.40 | 5Vor3.3V | LED | T6963orSAP1024B | 圖片 |
| SYM240128A3V10 |
240128 | 144.0*104.0*13.0 | 114.0*64.0 | 0.40×0.40 | 5Vor3.3V | LED | T6963 | 圖片 |
| SYM240128A2V22 |
240128 | 144.0×104.0×13.0 | 114.0×64.0 | 0.40×0.40 | 5Vor3.3V | LED | T6963orSAP1024B | 圖片 |

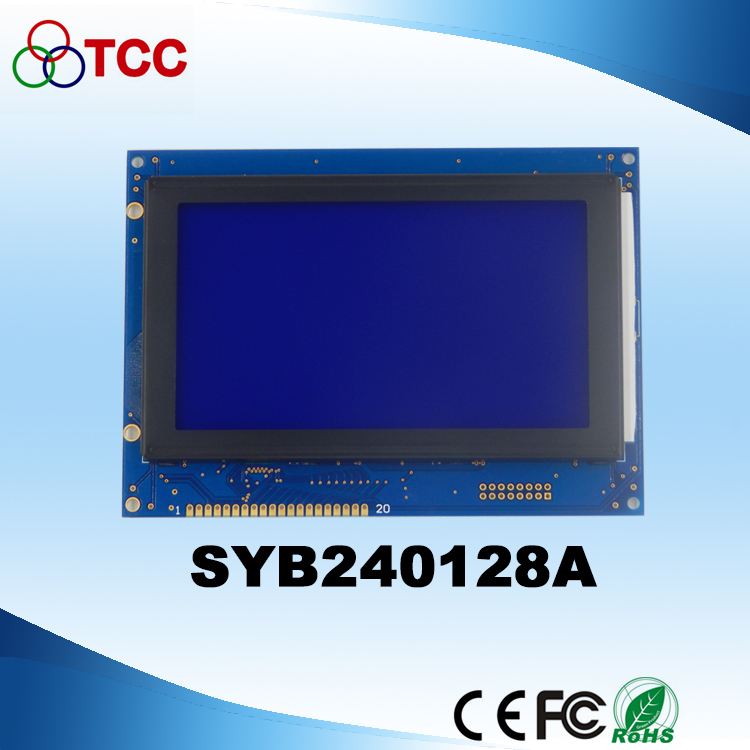

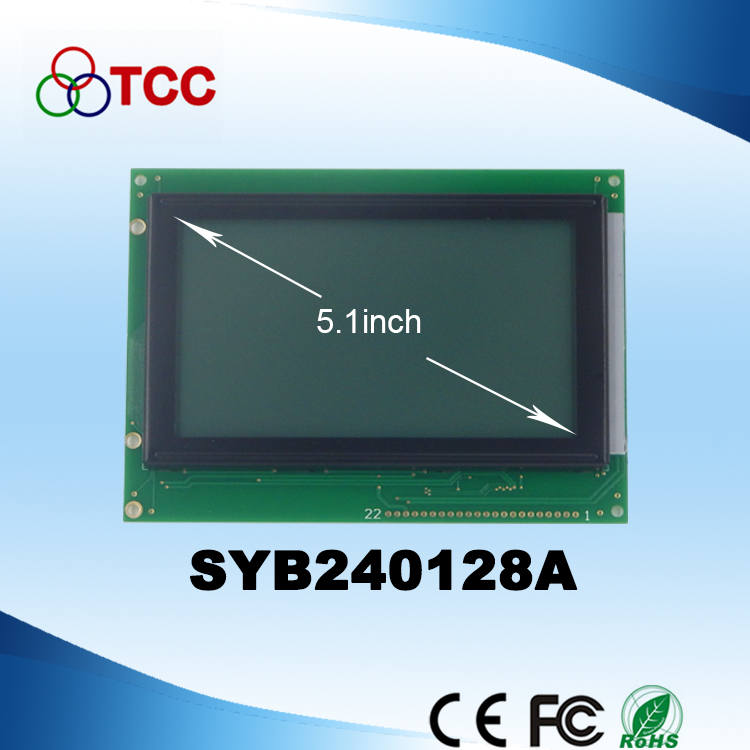

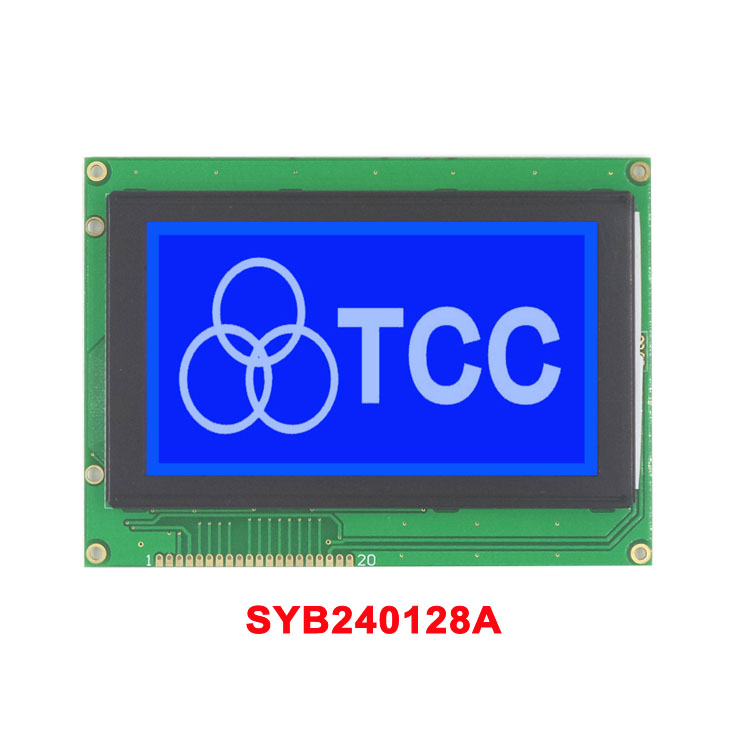

| SYB240128A5V10 |
240128 | 144.0*104.0*13.0 | 114.0*64.0 | 0.40*0.40 | 5Vor3.3V | LED | RA8835 | 圖片 |
| SYB240128A4V10 |
240128 | 144.0*104.0*13.0 | 114.0*64.0 | 0.40*0.40 | 5Vor3.3V | LED | T6963orSAP1024B | 圖片 |
| SYM240128A3V20 |
240x128 | 144.0*104.0*13.0 | 114.0*64.0 | 0.40*0.40 | 5Vor3.3V | LED | T6963C | 圖片 |
| SYB240128A3V21 |
240x128 | 144.0*104.0*13.0 | 114.0*64.0 | 0.40*0.40 | 5Vor3.3V | LED | T6963C | 圖片 |

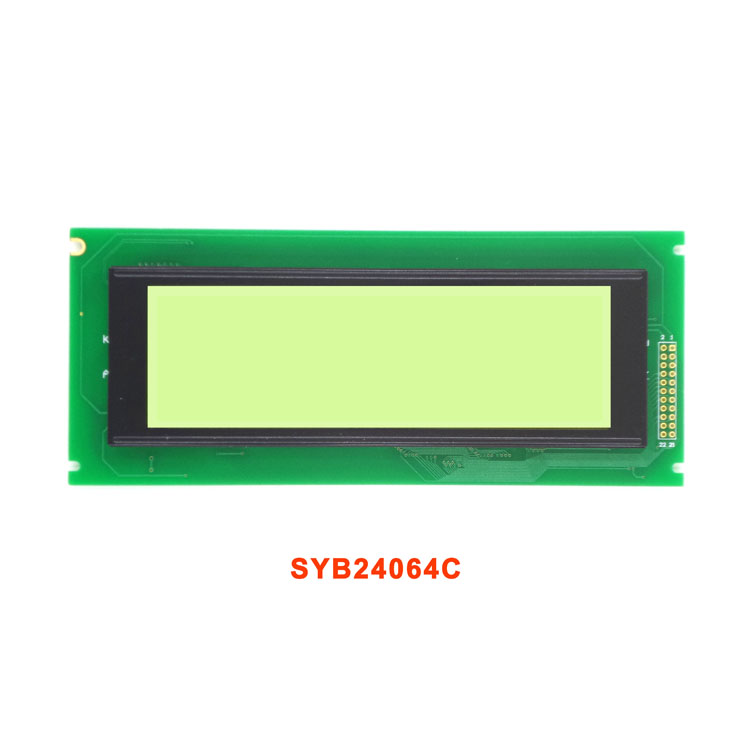

| SYB24064CV11 |
24064 | 180.0*75.0*13.5 | 134.0*41.0 | 0.49*0.49 | 5V | LED | KS0107 | 圖片 |

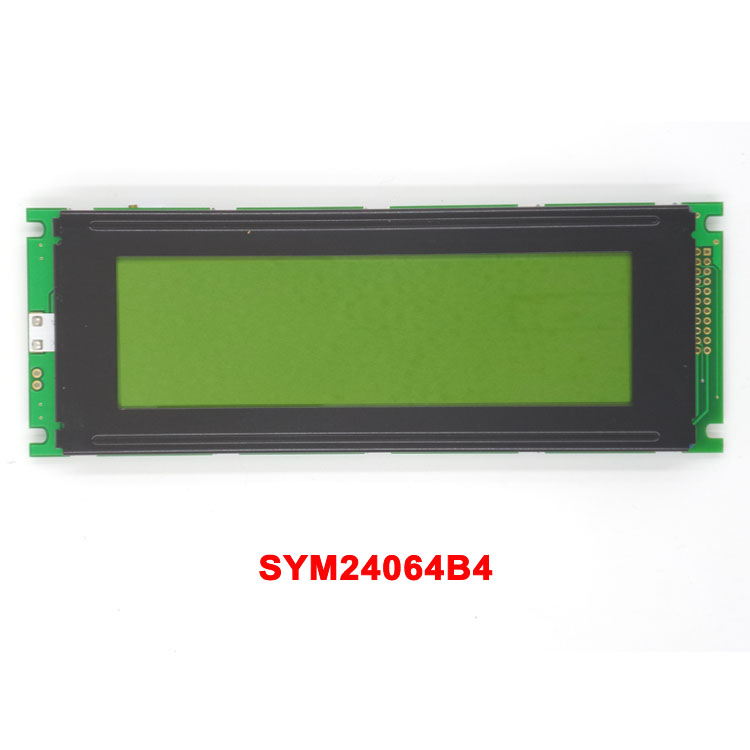

| SYM24064B4V12 |
24064 | 180.0*65.0*13.5 | 132.6*39.0 | 0.48*0.48 | 5V | LED | T6963orSAP1024B | 圖片 |

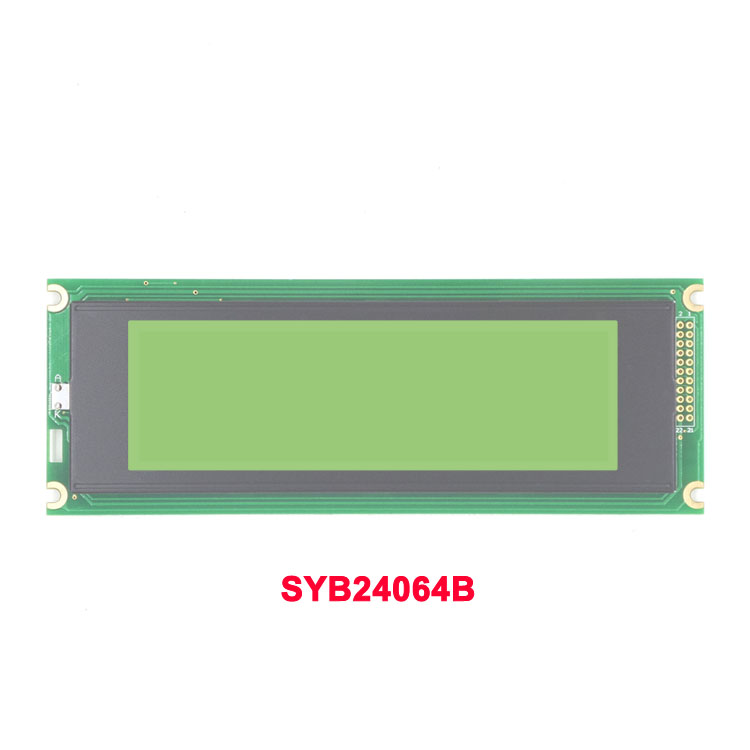

| SYB24064BV10 |
24064 | 180.0*65.0*13.5 | 132.6*39.0 | 0.49*0.49 | 5V | LED | T6963orSAP1024B | 圖片 |

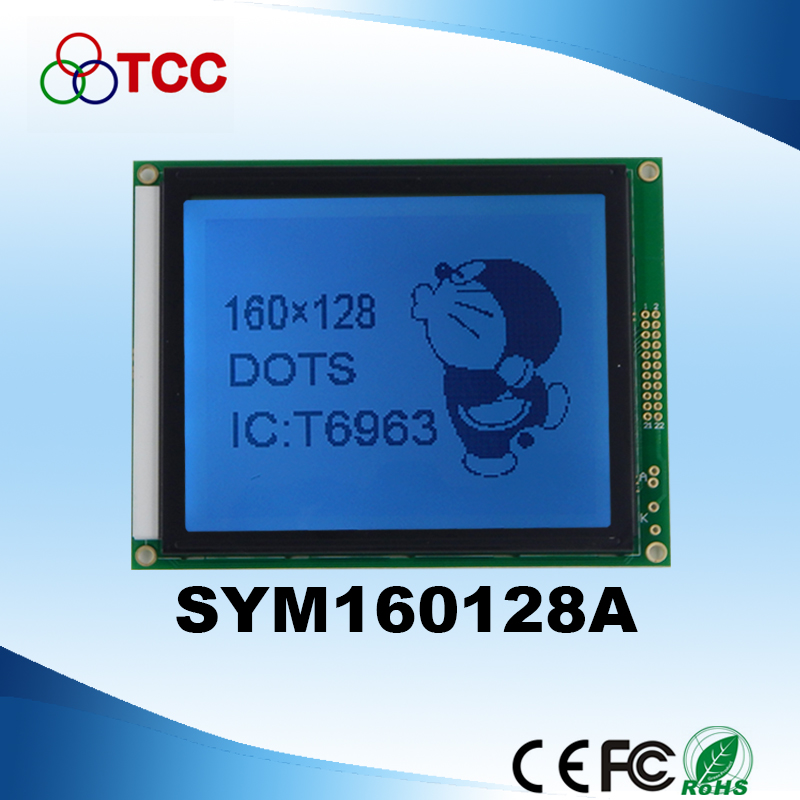

| SYM160128A1V13 |
160128 | 129.0*102.0*13.0 | 101.0x82.0 | 0.54x0.54 | 5V | LED | T6963C | 圖片 |
| SYB128128DV10 |
128*128 | 85.0*100.0*13.5 | 62.0*62.0 | 0.39*0.39 | 5V | LED | KS0107 | 圖片 |
| SYB19264D1V10 |
19264 | 113.0*71.0*12.5 | 98.0*49.0 | 0.62*0.44 | 5Vor3.3V | LED | AIP31107/8 | 圖片 |

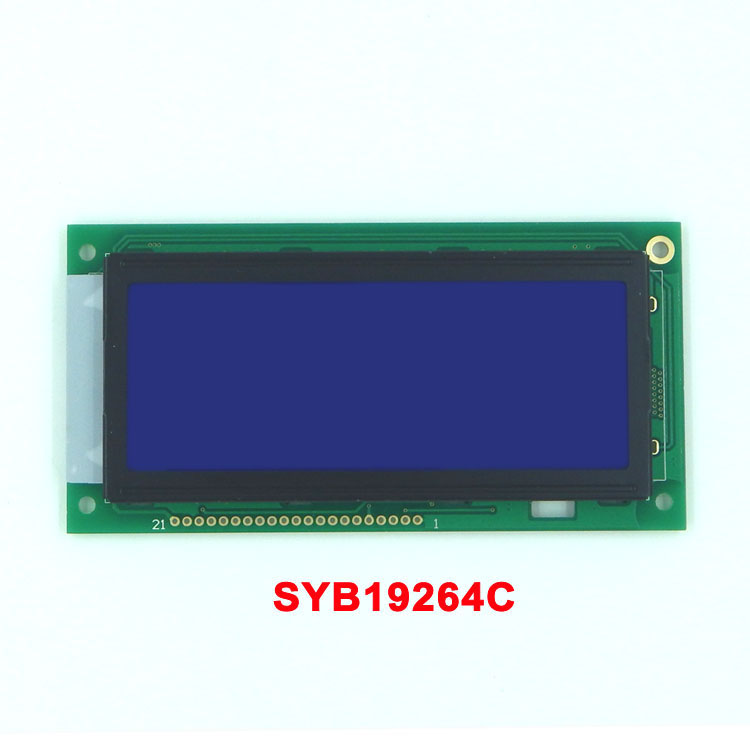

| SYB19264C1V11 |
19264 | 130.0*65.0*13.0 | 104.0*39.0 | 0.46*0.46 | 5Vor3.3V | LED | AIP31107/8 | 圖片 |

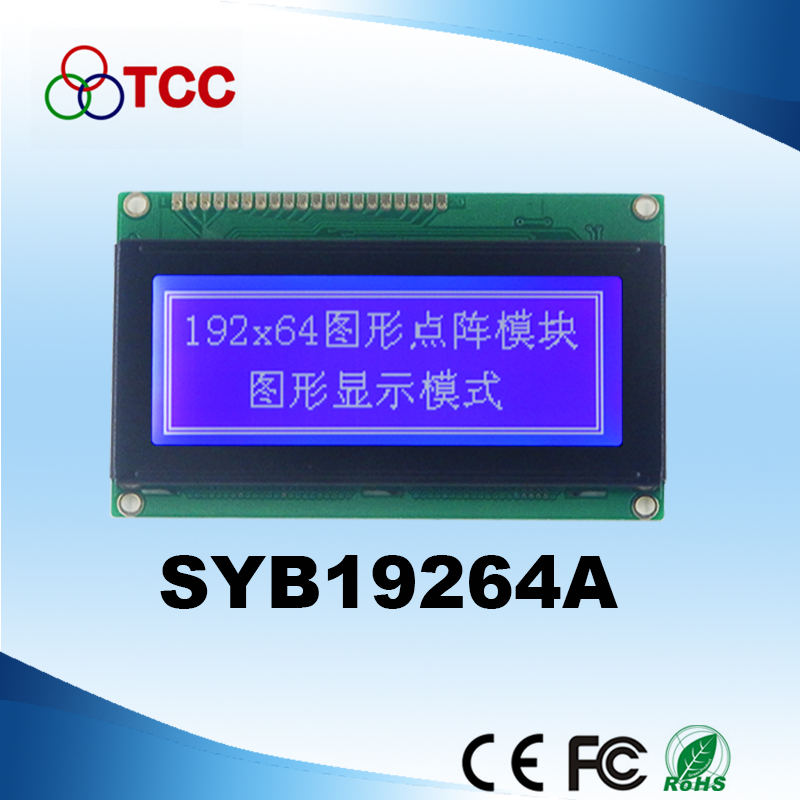

| SYB19264A2V30 |
19264 | 100.0*60.0*12.0 | 84.0*31.0 | 0.36*0.36 | 5V | LED | S6B0107+AIP31107 | 圖片 |
| SYB19264AV11 |
192x64 | 100.0x60.0x12.0 | 84.0x31.0 | 0.36x0.36 | 5V | LED | AIP31107/8 | 圖片 |

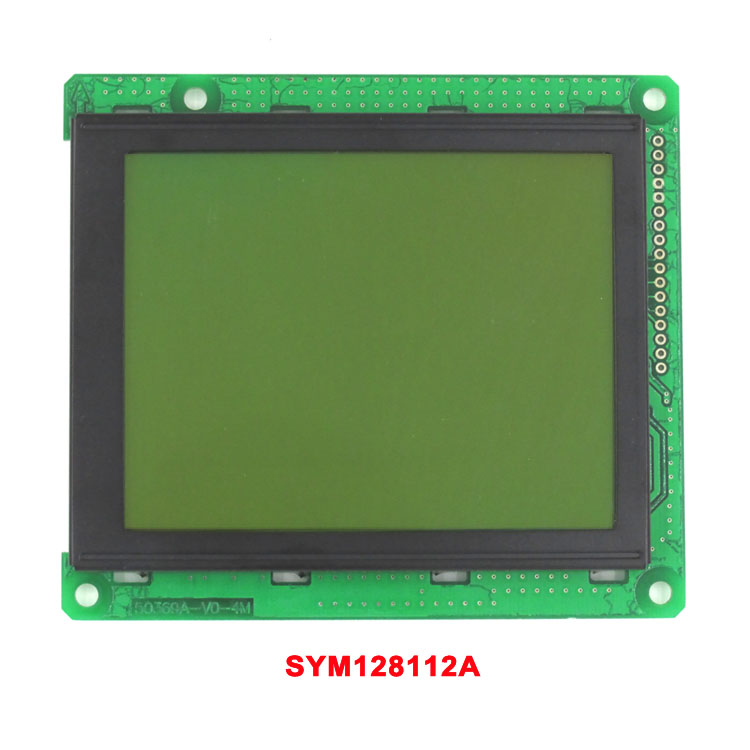

| SYM128112AV10 |
128112 | 110.0*97.0*13.0 | 85.0*66.0 | 0.58*0.49 | 5V | LED | NC | 圖片 |
| SYB12864XV10 |
128x64 | 63.2*54.0*9.5 | 54.0*35.9 | 0.35*0.45 | 5V | LED | AIP31107/8 | 圖片 |

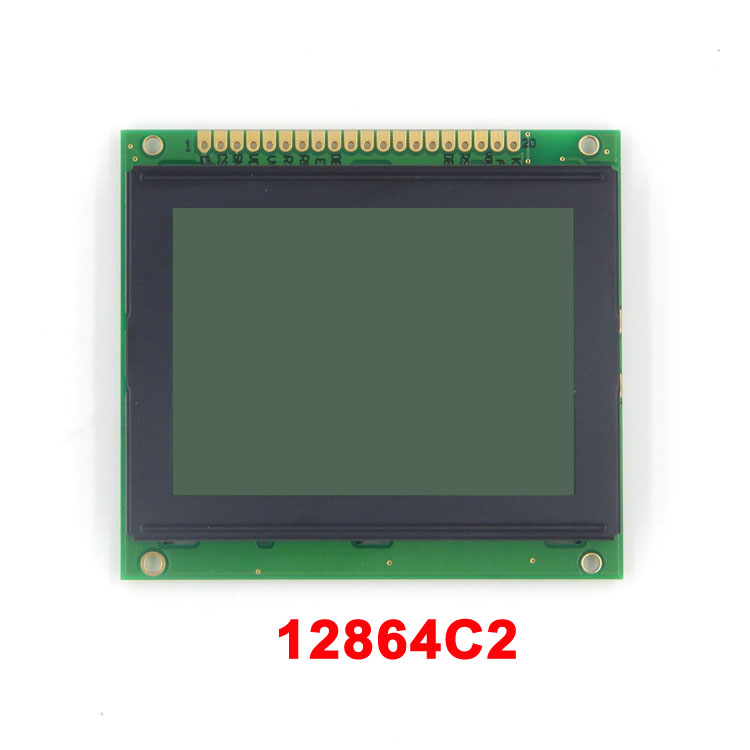

| SYB12864C2L1-2 |
12864 | 78.0*70.0*12.5 | 62.0*44.0 | 0.40*0.56 | 5Vor3.3V | LED | AIP31107/8 | 圖片 |

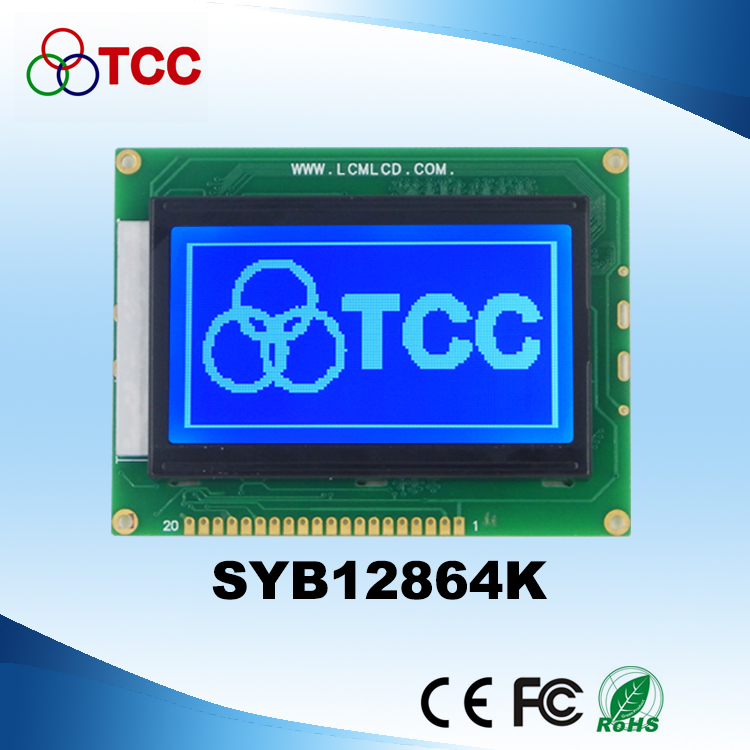

| SYB12864K5V10 |
12864 | 93.0*70.0*14 | 72.0*39.0 | 0.48*0.48 | 3.3v，5v | LED | ST7920 | 圖片 |
| SYB12864IV20 |
128*64 | 54.0*50.0*6.2 | 43.5*29.0 | 0.28*0.35 | 5V | LED | AIP31107/8 | 圖片 |
| SYB12864GV10 |
12864 | 93.0×70.0×12.5 | 72.0×39.0 | 0.48×0.48 | 5V | LED | AIP31107/8 | 圖片 |
| SYB12864D2V20 |
12864 | 75.0*52.7*9.0 | 60.0*32.5 | 0.43*0.43 | 5Vor3.3V | LED | AIP31107/8 | 圖片 |
| SYB12864C5V20 |
12864 | 93*70*12.5 | 72.0*39.0 | 0.48*0.48 | 5V | LED | AIP31107/8 | 圖片 |
| SYB12864C5V12 |
12864 | 93*70*12.5 | 72.0*39.0 | 0.48*0.48 | 5V | LED | AIP31107/8 | 圖片 |

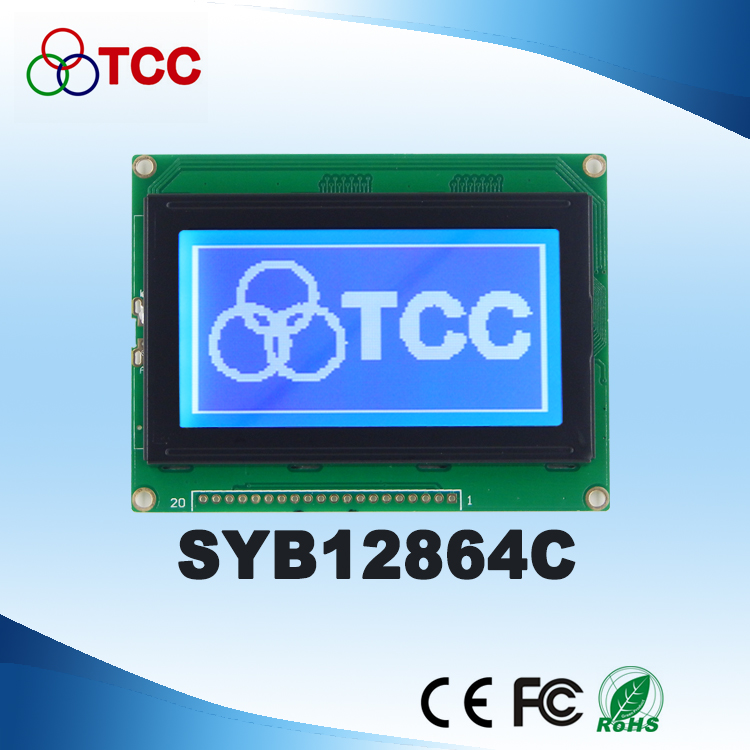

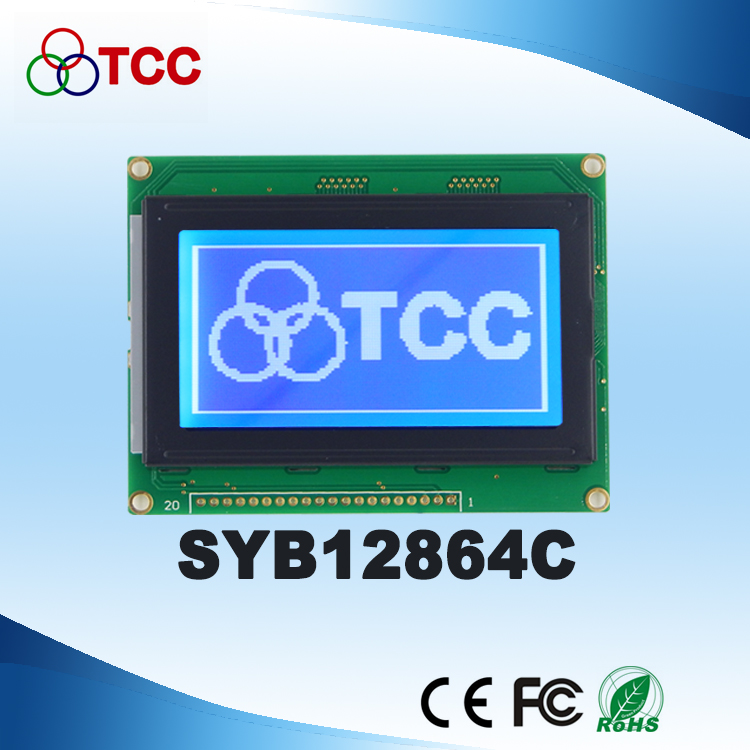

| SYB12864CV15 |
12864 | 93*70*12.5 | 72.0*39.0 | 0.48*0.48 | 5Vor3.3V | LED | S6B0107,S6B0108 | 圖片 |
| SYB12864CV13 |
12864 | 93.0*70.0*12.5 | 72.0*39.0 | 0.48*0.48 | 5Vor3.3V | LED | AIP31107/8 | 圖片 |

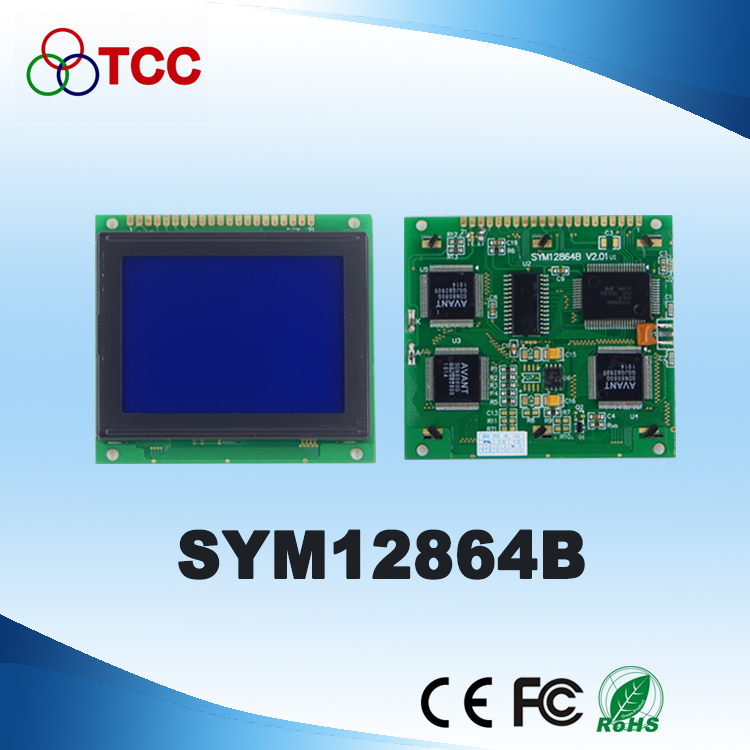

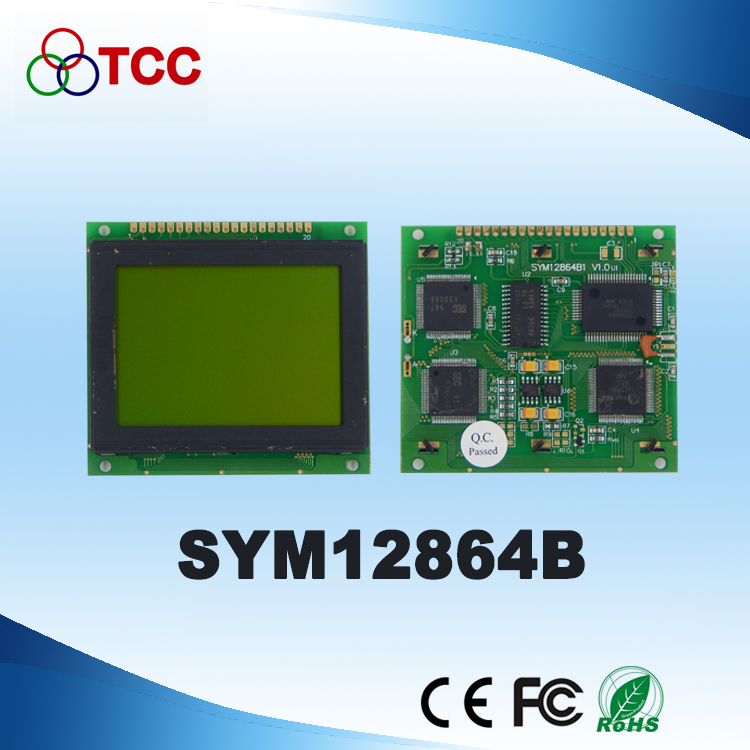

| SYM12864B1V10 |
12864 | 78.0*70.0*12.5 | 62.0*44.0 | 0.40*0.56 | 5V | LED | T6963 | 圖片 |
| SYM12864BV201 |
12864 | 78.0*70.0*12.5 | 62.0*44.0 | 0.40*0.56 | 5V | LED | T6963 | 圖片 |

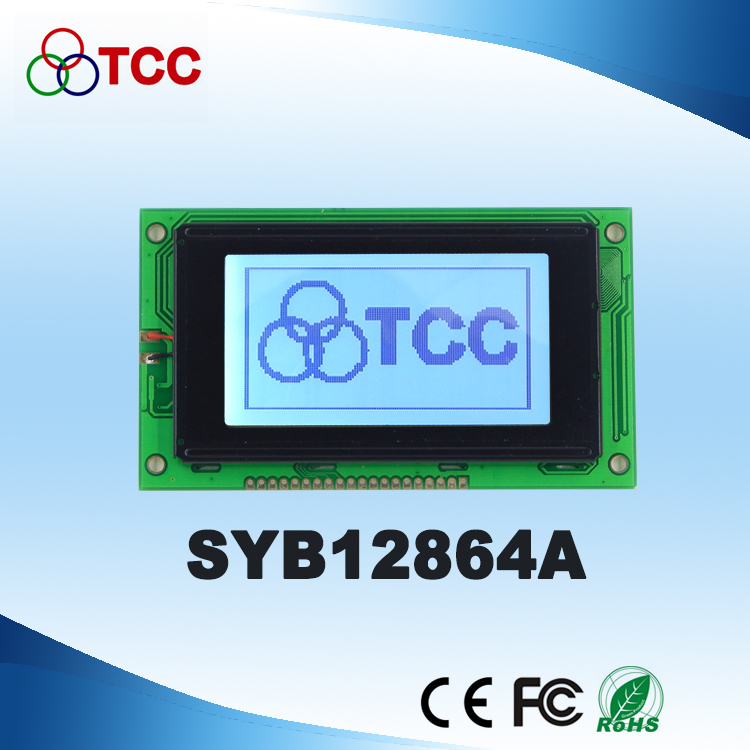

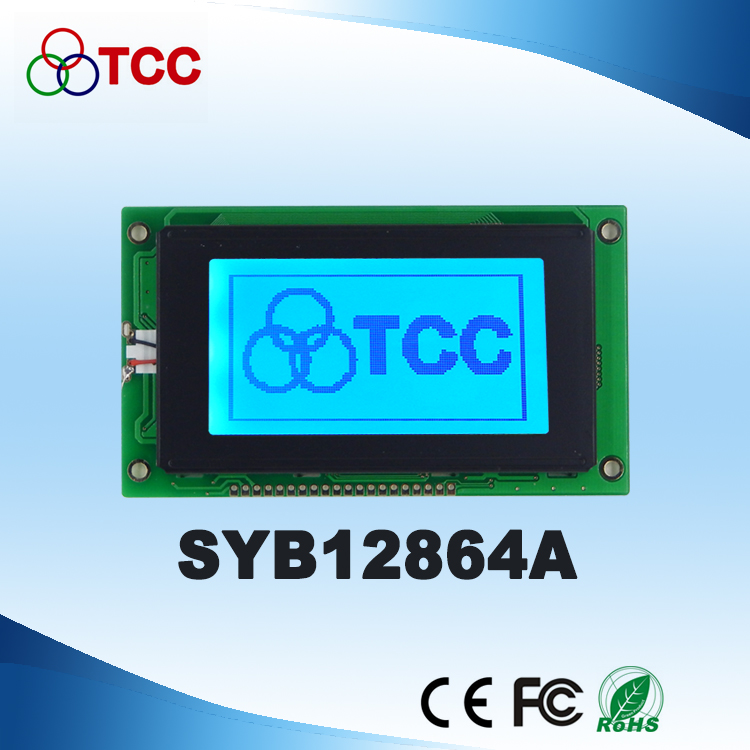

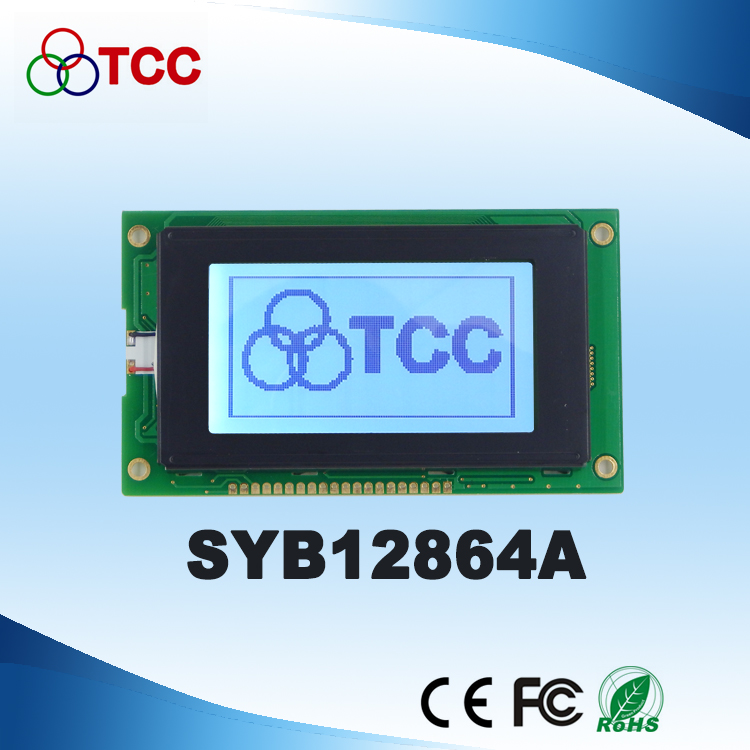

| SYB12864AV30 |
12864 | 113.0*65.0*13.0 | 73.5*39.0 | 0.46*0.46 | 5Vor3.3V | LED | S6B0107 | 圖片 |
| SYB12864AV20 |
12864 | 113.0*65.0*12.0 | 73.4*38.80 | 0.48*0.48 | 5Vor3.3V | LED | S6B0107 | 圖片 |

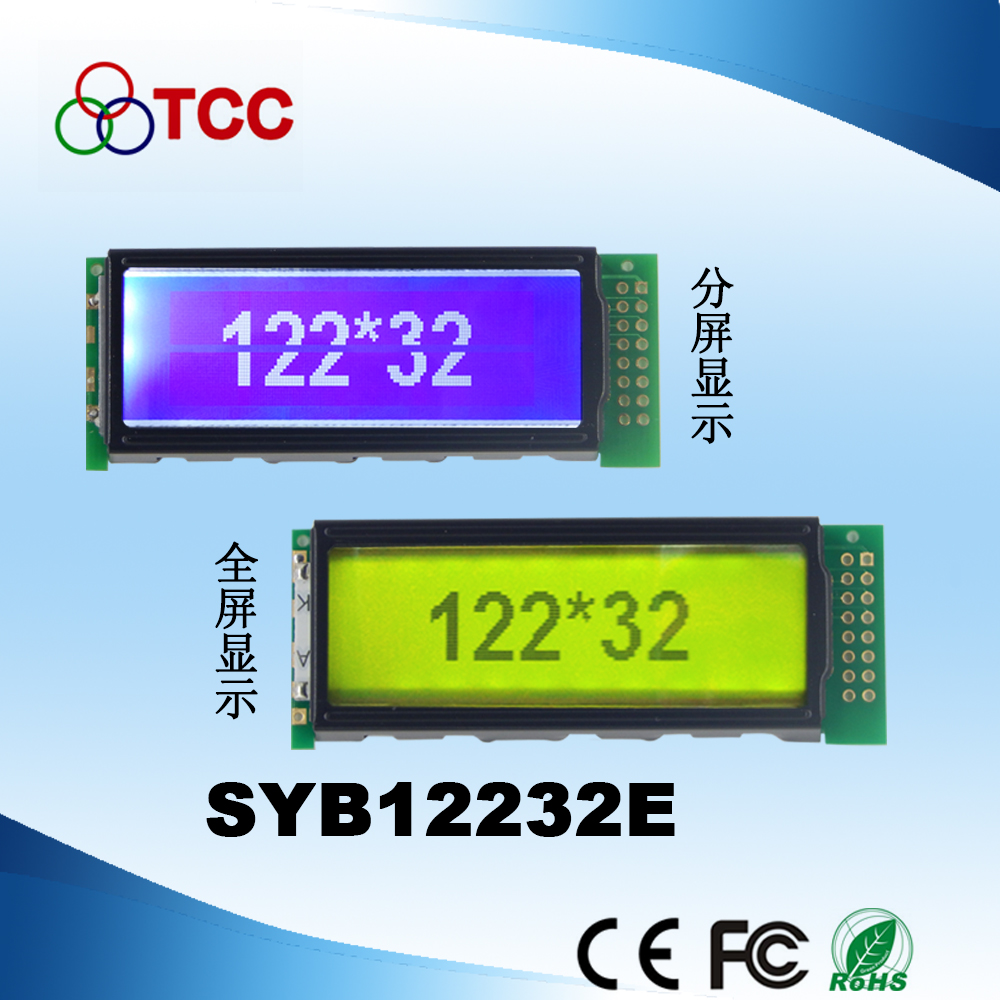

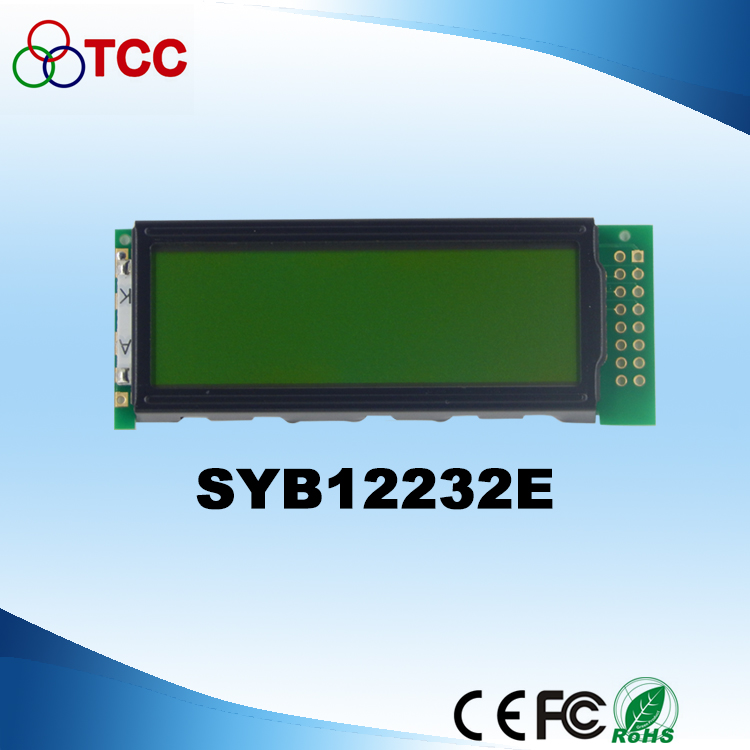

| SYB12232EV11 |
12232 | 76.5*29.0*7.1 | 60.0*21.0 | 0.36*0.41 | 5V | LED | SED1520 | 圖片 |
| SYB12232EV10 |
12232 | 76.5*29.0*7.1 | 60.0*21.0 | 0.36*0.41 | 5V | LED | SED1520 | 圖片 |

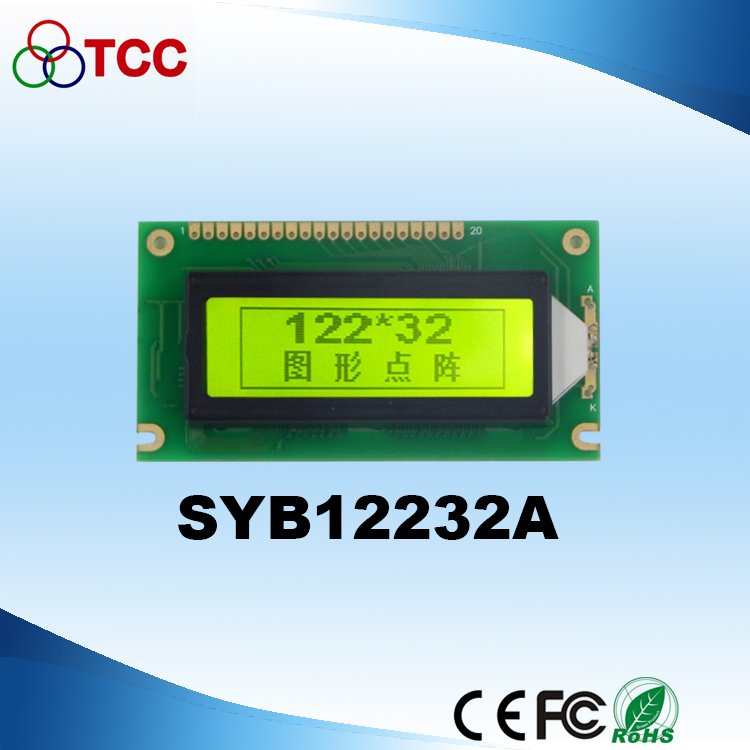

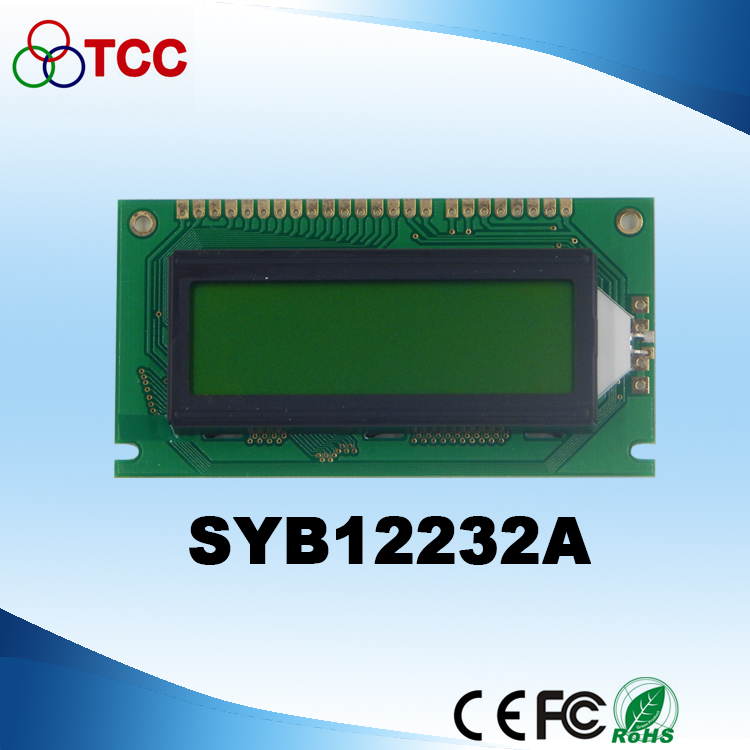

| SYB12232A3V11 |
12232 | 84.0*44.0*12.5 | 60.0*18.0 | 0.36*0.42 | 5V | LED | SBN1661GM18 | 圖片 |
| SYB12232A1V10 |
12232 | 84.0×44.0×12.5 | 60.0×18.0 | 0.36×0.42 | 5V | LED | SBN1661G | 圖片 |

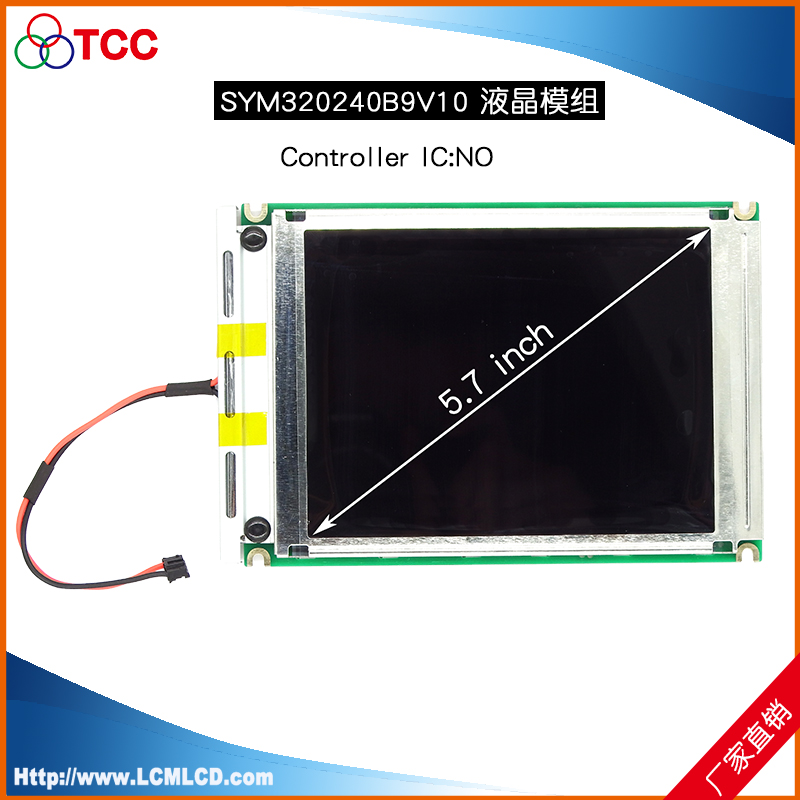

| SYM320240B9V10 |
320x240 | 163.77x109.45x9.62 | 121.00x92.00 | 0.33x0.33 | VDD:5.0v | FSTN/Negative/Transmissive | NO | 圖片 |
| SYB240128EV20 |
240*128 | 144.0*104.0*13.5 | 121.4*63.5 | 0.42*0.42 | 5V | LED | LC7981 | 圖片 |
| SYB12232AZKV12(藍膜) |
122x32 | 84.0x44.0x13.0 | 60.0x18.0 | 0.40x0.45 | VDD:5.0V | STN/Blue/Negative/Transmissive | ST7920 | 圖片 |

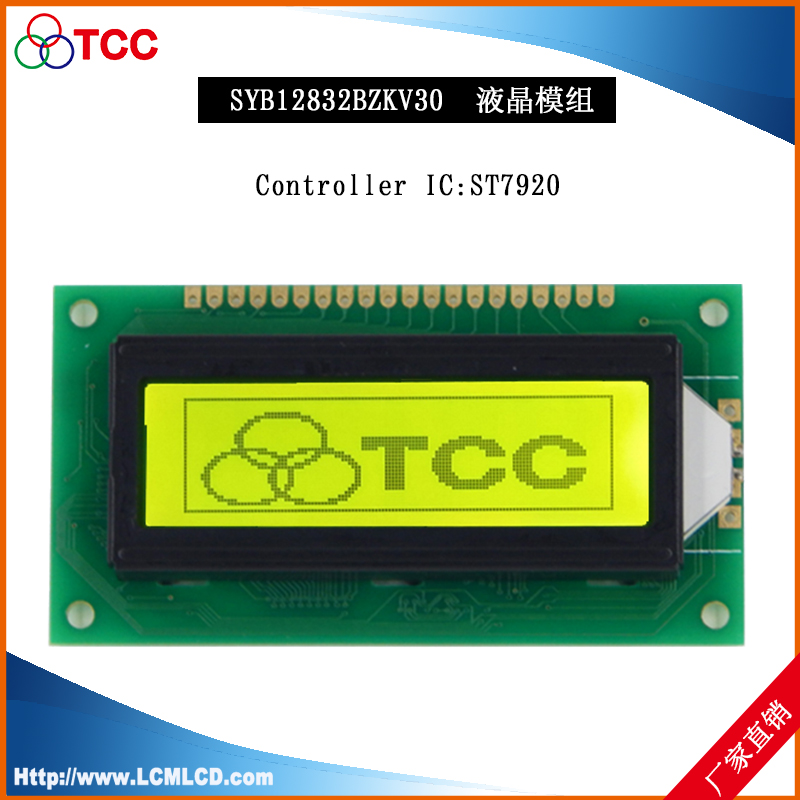

| SYB12832BZKV30(黃綠膜) |
128x32 | 80.6x42.8x13.0 | 60.0x18.0 | 0.36x0.41 | VDD:5.0V | STN Yellow-green Blue,FSTN | ST7920 | 圖片 |

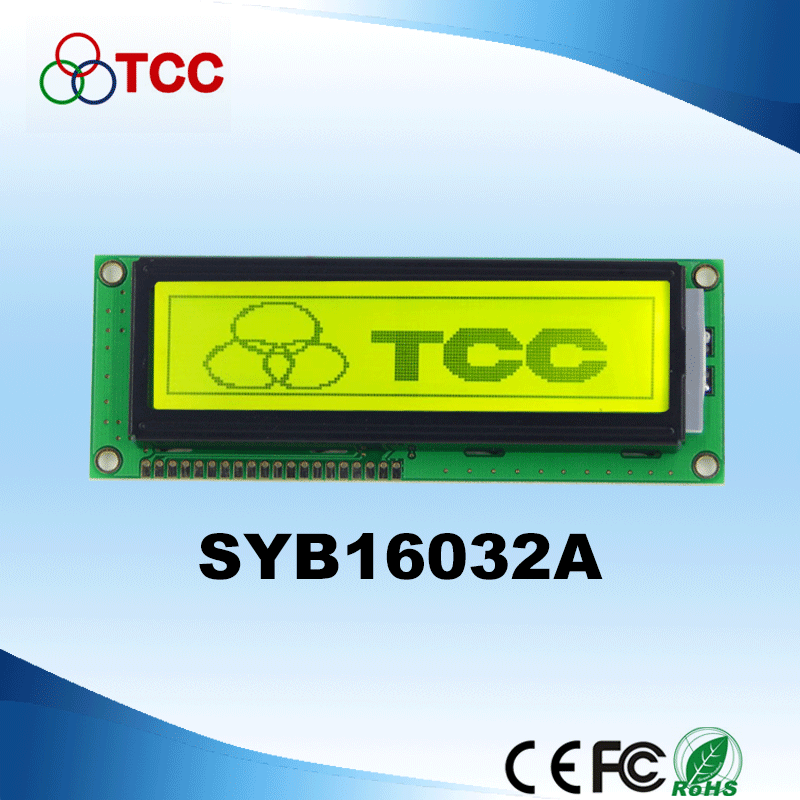

| SYB16032AZKV20(藍膜) |
160x32 | 122.0x44.0x13.0 | 99.0x24.0 | 0.55x0.55 | VDD:5.0V | STN/Positive/Transflective/YG | ST7920 | 圖片 |

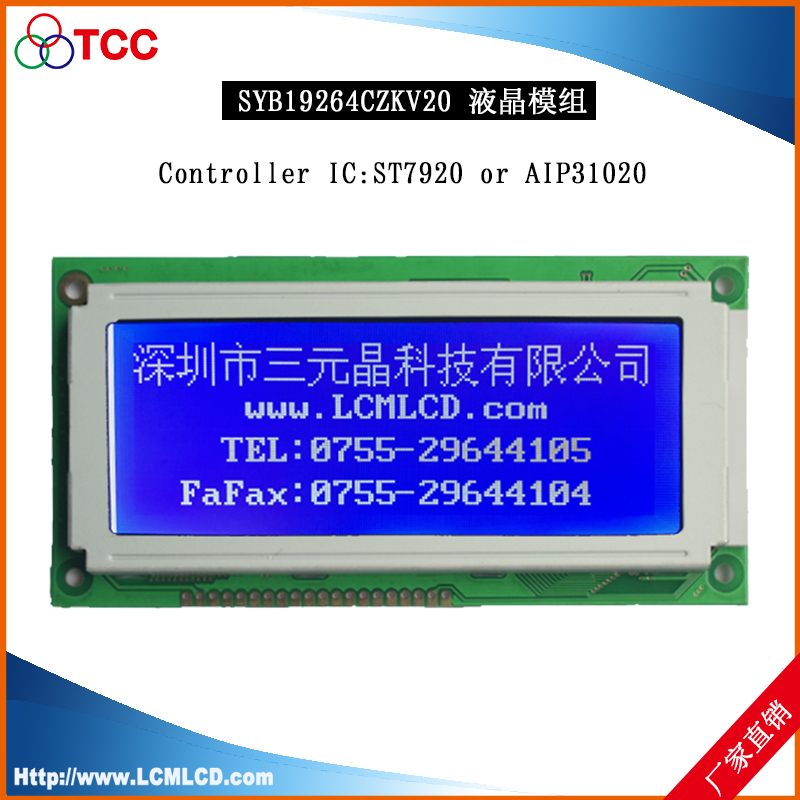

| SYB19264CZKV20 |
192x64 | 130.0x65.0x12.7 | 104.0x39.0 | 0.39x0.55 | VDD:5.0V | STN/Blue/Negative/Transmissive | ST7920 or AIP31020 | 圖片 |

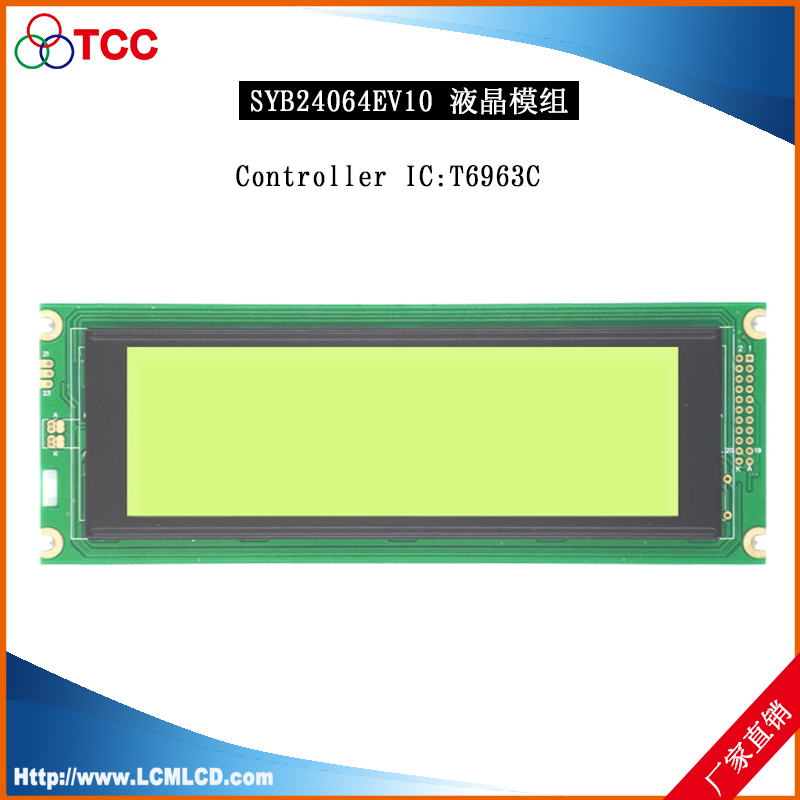

| SYB24064EV10 |
240x64 | 180.0x65.0x13.5 | 134.0x41.0 | 0.49x0.49 | VDD:5.0V | STN/Positive/Transflective/YG | T6963C | 圖片 |
| SYM240128EV11(黃綠膜) |
240x128 | 144.0x104.0x14.0 | 121.4x63.5 | 0.42x0.42 | VDD:5.0V | STN/Blue/Negative/Transmissive | T963C(LC7981) | 圖片 |
| SYB24064AV10 |
240*64 | 180.0*65.0*12.5 | 132.6*39.0 | 0.49*0.49 | 3.3v/5v | LED | LC7981 | 圖片 |

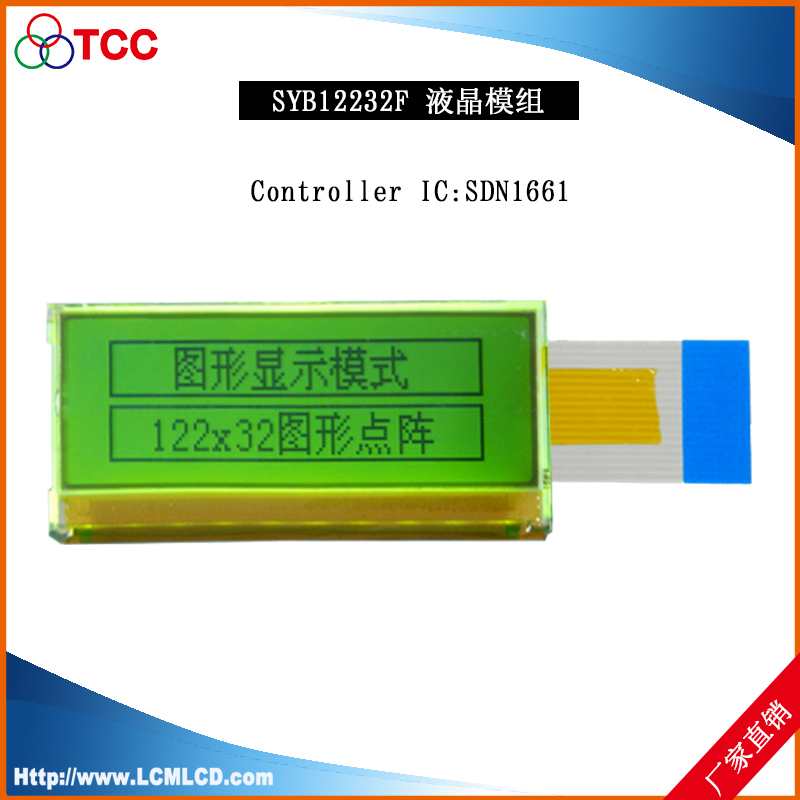

| SYB12232F |
122x32 | 65.4x29.1x6.0 | 54.8x19.1 | 0.36x0.41 | VDD:5.0V | STN/Positive/Transflective/YG | SDN1661 | 圖片 |
| SYM320240BZKM333 |
320*240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5v | LED | RA8806 | 圖片 |

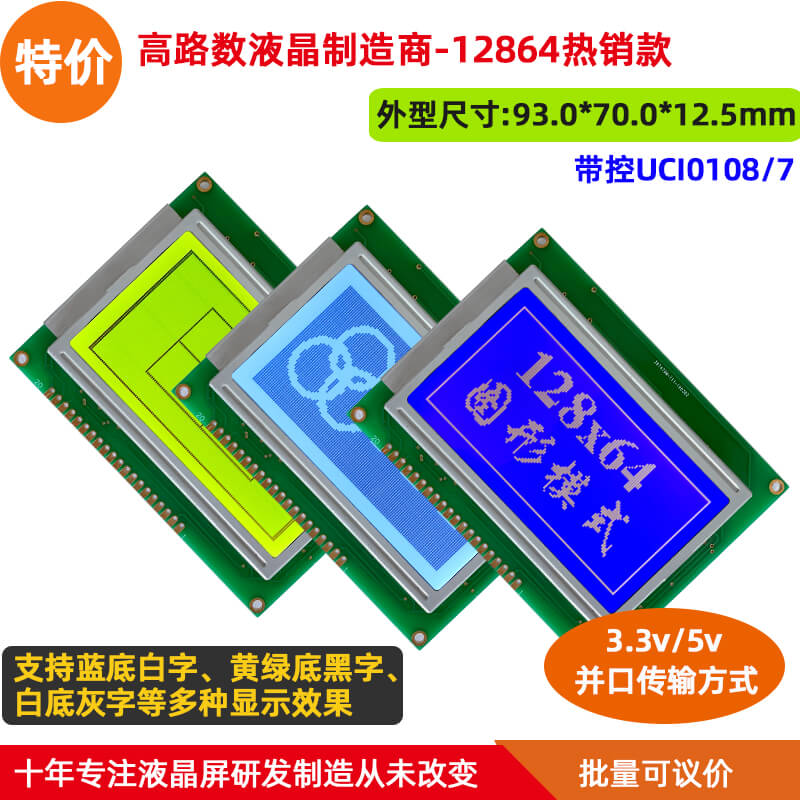

| 12864888V10 |
128*64 | 93.0*70.0*12.5 | 72.0*40.0 | 0.48*0.48 | 5v | LED | UCI0108/7 | 圖片 |
| SYB12864A3V12 |
128x64 | 113.0x65.0x13.0 | 71.6x38.9 | 0.48x0.48 | VDD:5.0V | STN/Blue/Negative/Transmissive | KS0107,KS0108 | 圖片 |

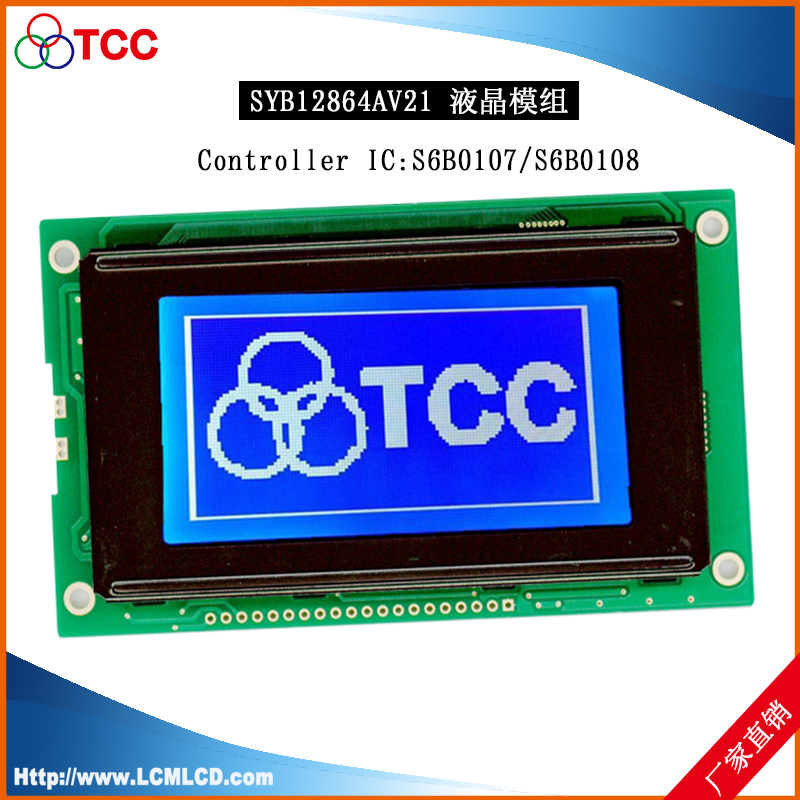

| SYB12864AV21(藍底) |
128x64 | 113.0x65.0x12.7 | 73.5x39.0 | 0.458x0.458 | VDD:5.0V | STN/Positive/reflecttve/YG | S6B0107/S6B0108 | 圖片 |
| SYB19264BV10 |
192x64 | 120.0x62.0x12.5 | 104.0x39.0 | 0.468x0.459 | VDD:5.0V | STN/Blue/Negative/Transmissive | KS0107 | 圖片 |

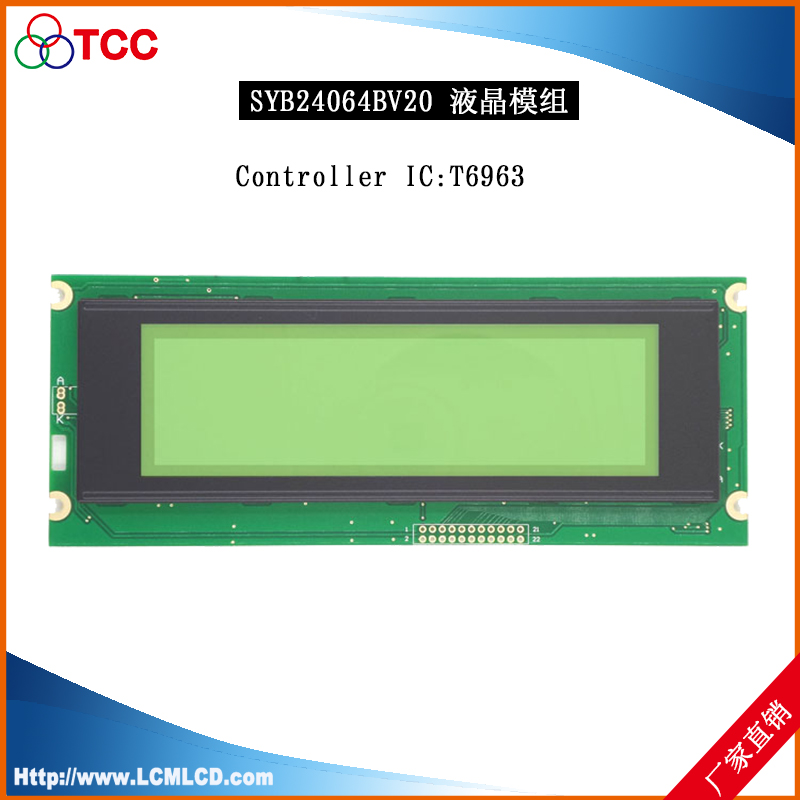

| SYB24064BV20 |
240x64 | 180.0x70.0x13.0 | 132.6x39.0 | 0.49x0.49 | VDD:5.0V | STN/Blue/Negative/Transmissive | T6963 | 圖片 |
| SYB240128EV41 |
240x128 | 144.0x104.0x14.0 | 121.4x63.5 | 0.42x0.42 | VDD:5.0V | STN/Blue/Negative/Transmissive | T6963 or LC7981 | 圖片 |

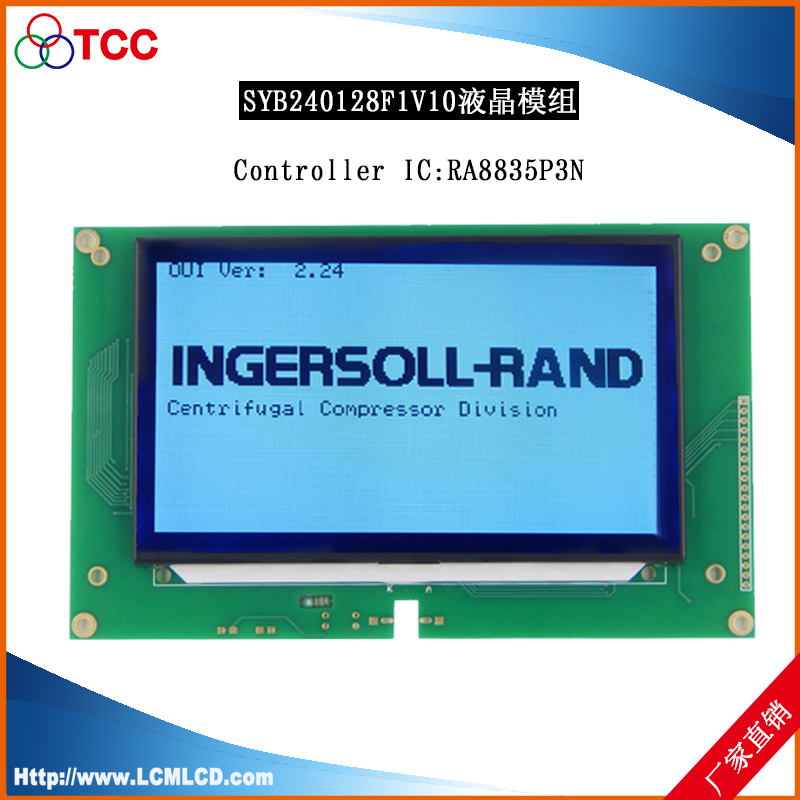

| SYB240128F1V10 |
240x128 | 180.0x110.0x13.0 | 127.8x73.8 | 0.47x0.47 | VDD:5.0V | STN/Negative/Transmissive | RA8835AP3N | 圖片 |

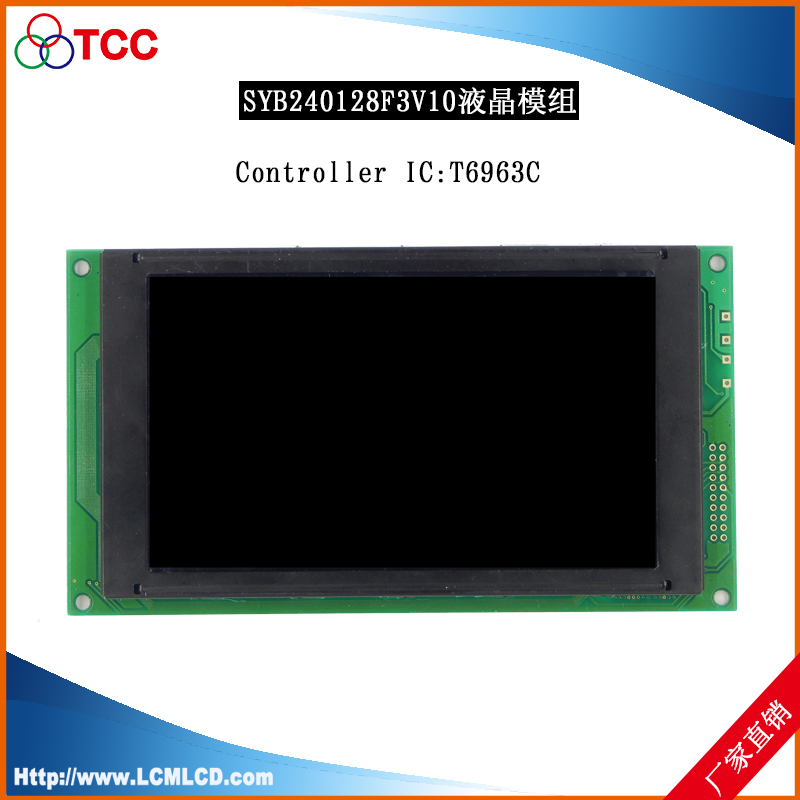

| SYB240128F3V10 |
240x128 | 170.0x93.0x11.9 | 128.0x75.0 | 0.47x0.47 | VDD:5.0V | FSTN/Negative/Transmissive | T6963C | 圖片 |

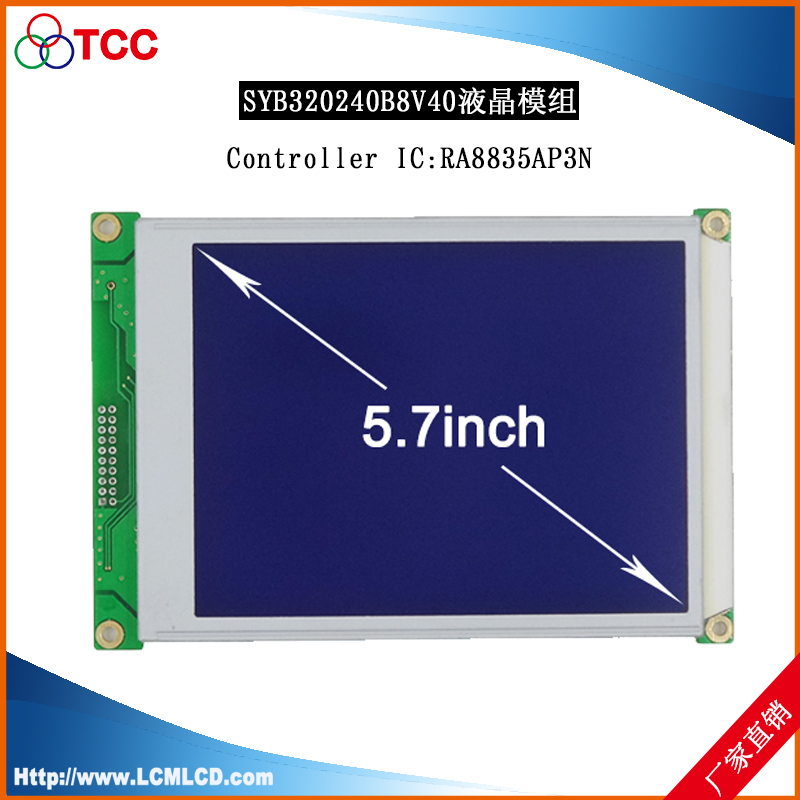

| SYB320240B8V40 |
320x240 | 160.0x109.0x11.0 | 122.0x92.0 | 0.33x0.33 | VDD:5.0V | STN/Blue or FSTN/Negative/Transmissive | RA8835AP3N | 圖片 |

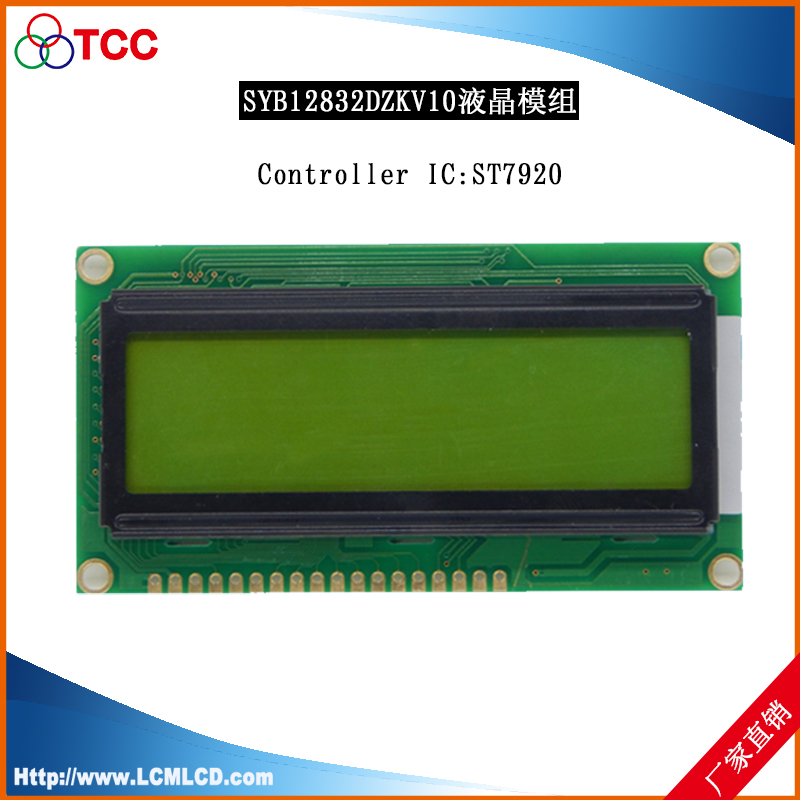

| SYB12832DZKV10 |
128x32 | 84.0x44.0x14.2 | 70.0x20.0 | 0.48x0.48 | VDD:5.0V | STN/Blue/Negative/Transmissive | ST7920 | 圖片 |
| SYM320240C1V10 |
320x240 | 139.0x100.0x13.0 | 103.0x79.0 | 0.27x0.27 | VDD:5.0V | STN/Blue/Negative/Transmissive | RA8835AP3N | 圖片 |

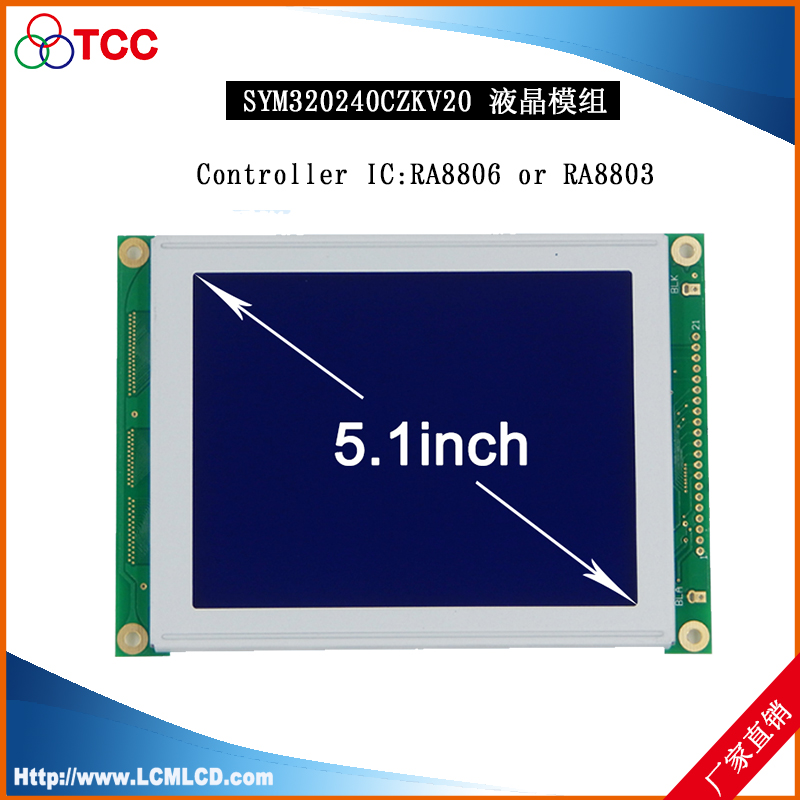

| SYM320240CZKV20 |
320x240 | 139.0x100.0x13.0 | 103.0x79.0 | 0.27x0.27 | VDD:5.0V | STN/Blue/Negative/Transmissive | RA8806 or RA8803 | 圖片 |
| SYM320240GV10(灰膜) |
320x240 | 148.0x114.5x13.0 | 103.0x79.0 | 0.27x0.27 | VDD:5.0V | STN/Blue/Negative/Transmissive | RA8835AP3N | 圖片 |

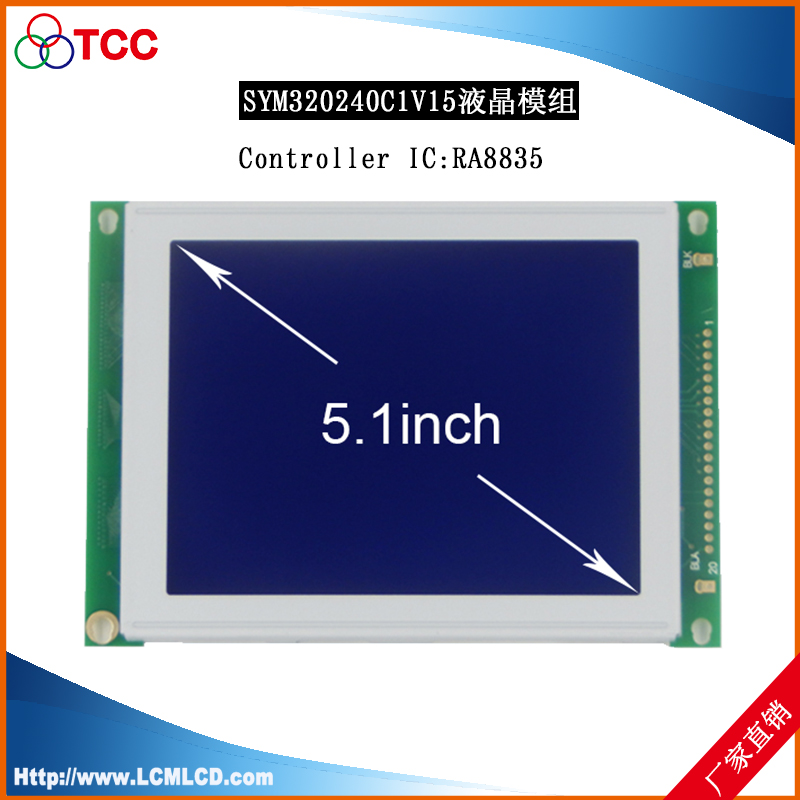

| SYM320240C1V15 |
320x240 | 139.0x100.0x12.3 | 103.0x79.0 | 0.27x0.27 | VDD:5.0V | STN/Blue/Negative/Transmissive | RA8835 | 圖片 |
| SYM320240CV20(綠膜) |
320x240 | 139.0x114.0x13.0 | 103.0x79.0 | 0.27x0.27 | VDD:5.0V | STN Blue or FSTN/Positive/Transmissive | RA8835AP3N | 圖片 |

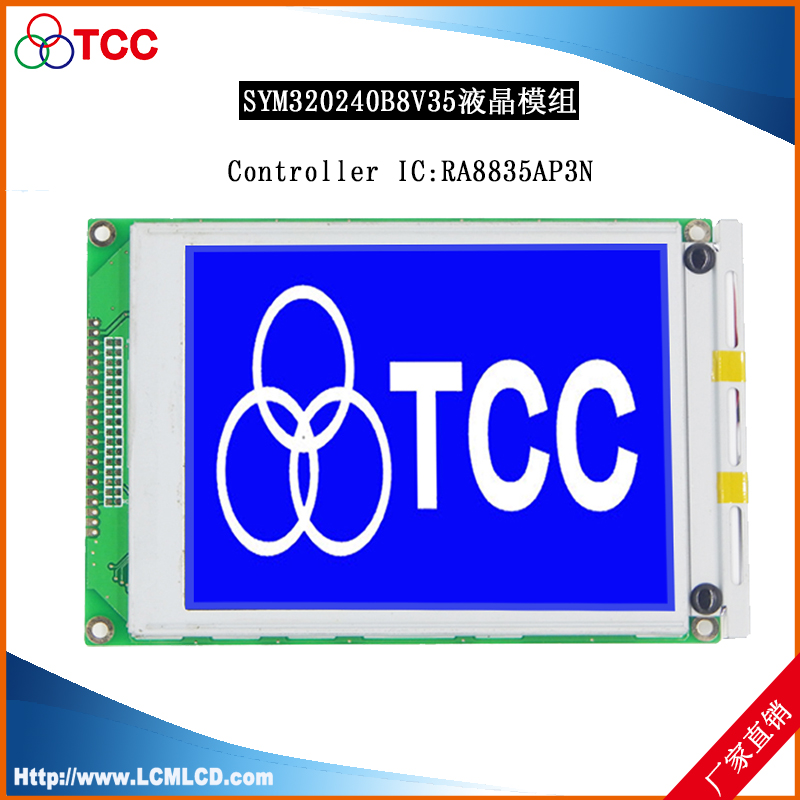

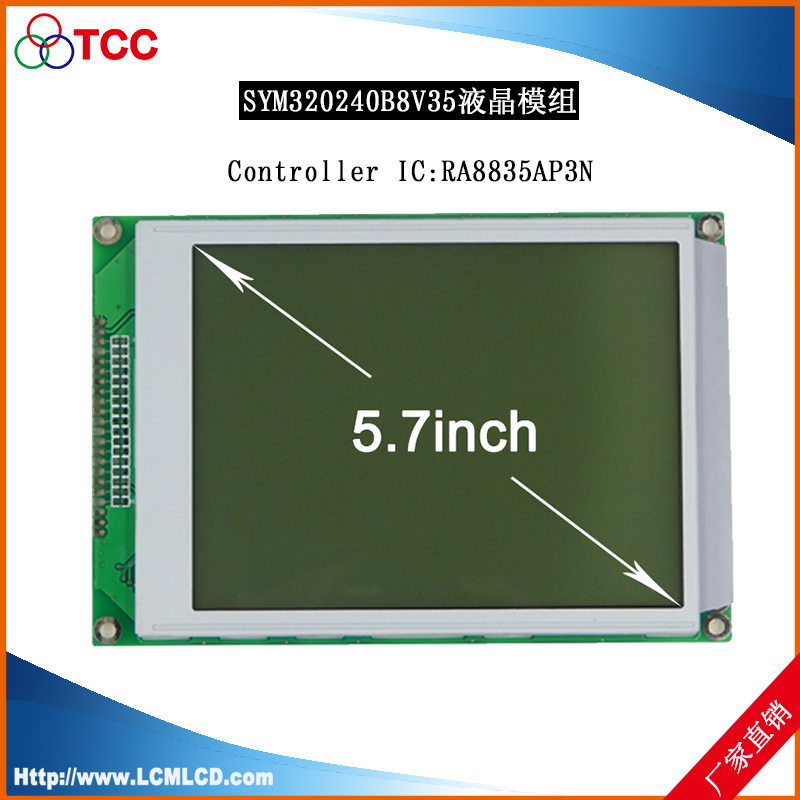

| SYM320240B8V35(灰膜) |
320x240 | 160.0x109.0x11.1 | 122.0x92.0 | 0.33x0.33 | VDD:5.0V | STN/Blue/Negative/Transmissive | RA8835AP3N | 圖片 |
| SYM320240B8V35(藍膜) |
320x240 | 160.0x109.0x11.1 | 122.0x92.0 | 0.33x0.33 | VDD:5.0V | STN/Blue/Negative/Transmissive | RA8835AP3N | 圖片 |
| SYM320240B7V31(黃綠膜) |
320x240 | 160.0x109.0x11.5 | 122.0x92.0 | 0.33x0.33 | VDD:5.0V | FSTN/STN/Blue/Negative/Transmissive | RA8835AP3N+TSC2046 | 圖片 |

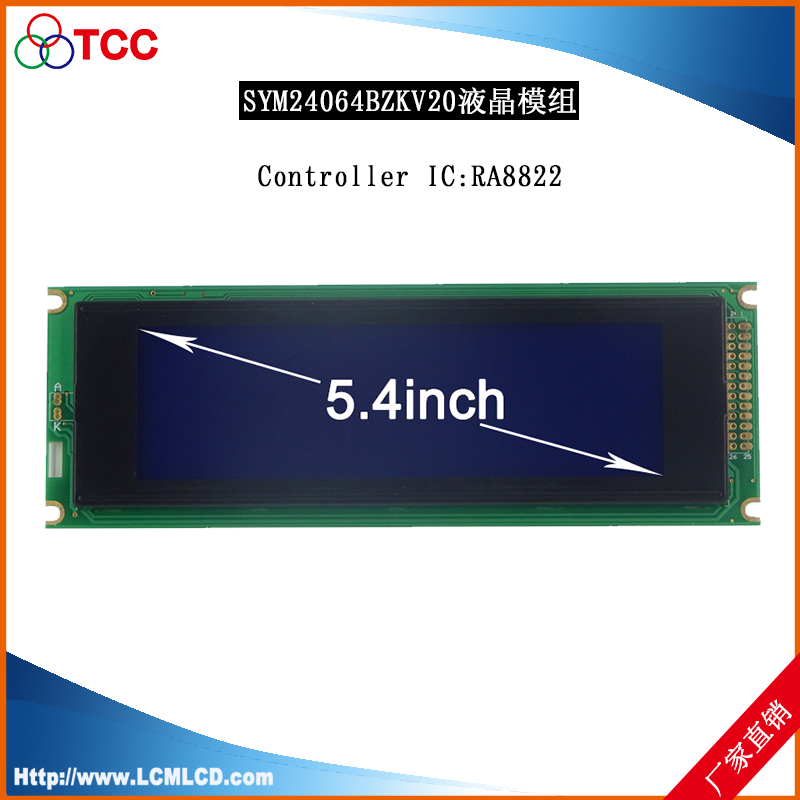

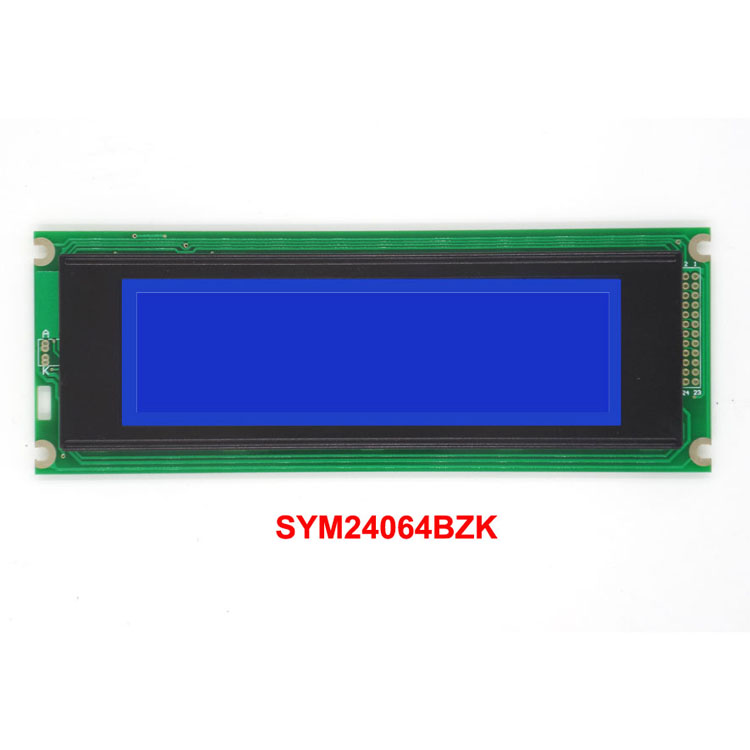

| SYM24064BZKV20 |
240x64 | 180.0x62.0x11.6 | 132.0x39.0 | 0.49x0.49 | VDD:5.0V | STN/Blue/Negative/Transmissive | RA8822 | 圖片 |

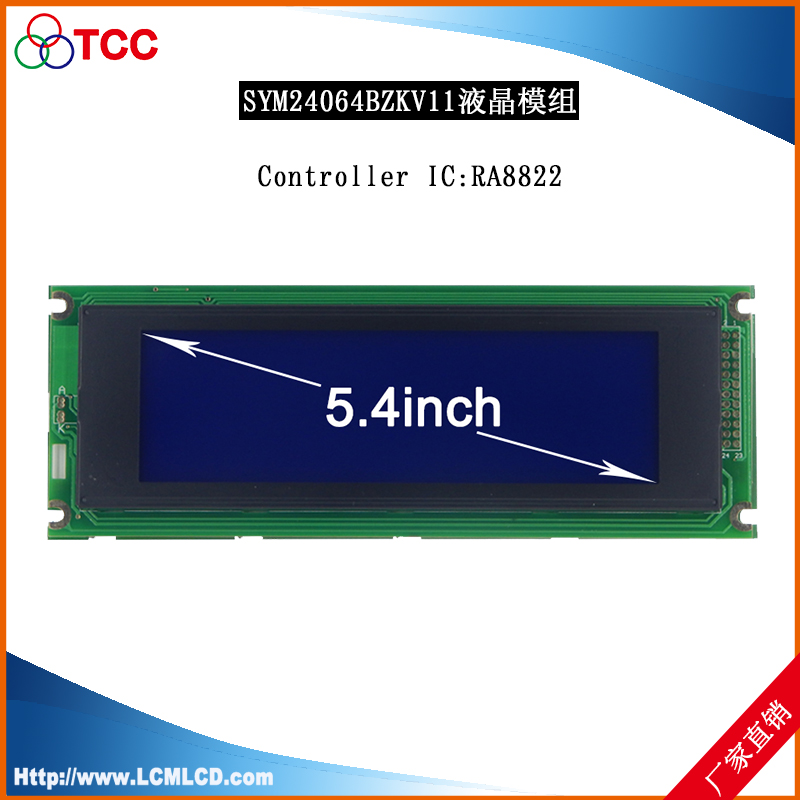

| SYM24064BZK11 |
240x64 | 180.0x65.0x13.0 | 132.0x39.0 | 0.49x0.49 | VDD:5.0V | STN/Positive/Transflective/YG | RA8822 | 圖片 |
| SYG12832008 |
128x32 | 52.0x27.5x3.1 | 46.0x16.0 | 0.31x0.31 | VDD:3.3V | FSTN/Positive/Transflective | UC1705 | 圖片 |

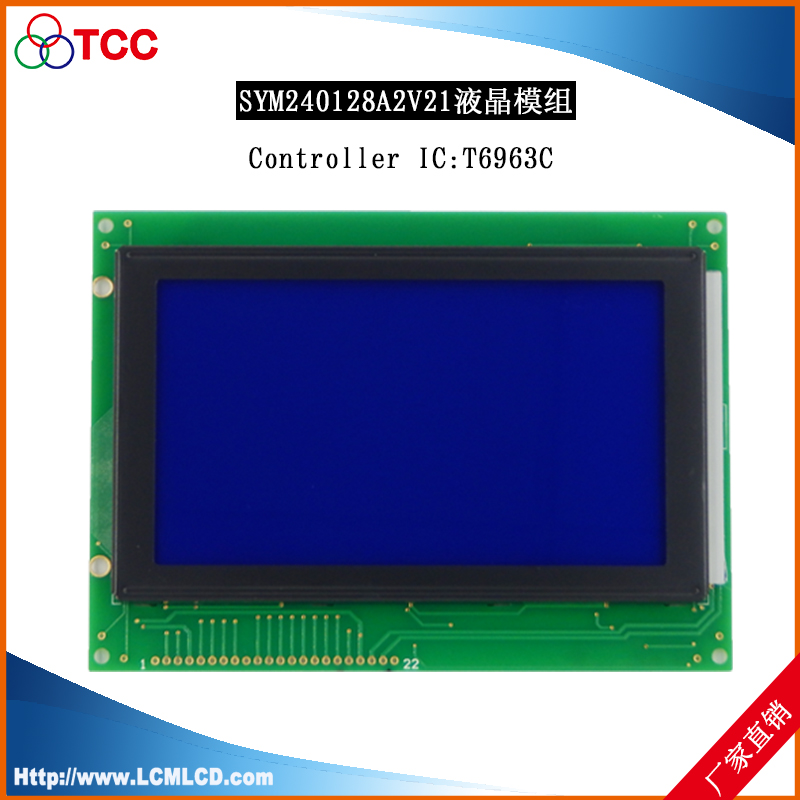

| SYM240128A2V21 |
240x128 | 144.0x104.0x12.0 | 114.0x64.0 | 0.40x0.40 | VDD:5.0V | STN/Blue/Positive/Transflective | T6963 | 圖片 |

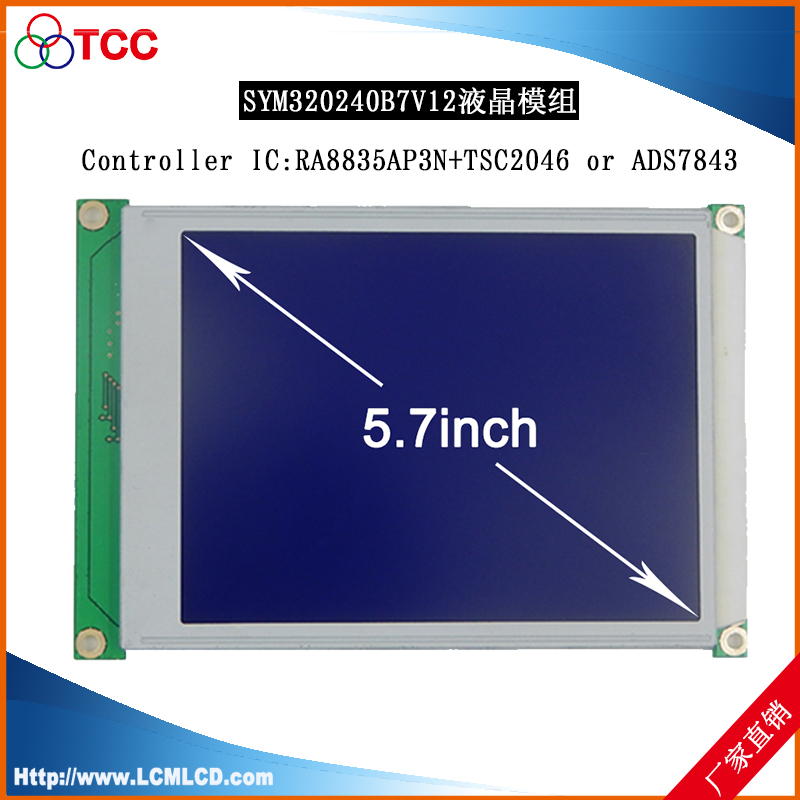

| SYM320240B7V12(藍膜) |
320x240 | 160.0x109.0x11.5 | 122.0x92.0 | 0.33x0.33 | VDD:5.0V | FSTN/STN/Blue/Negative/Transmissive | RA8835AP3N+TSC2046 or ADS7843 | 圖片 |
| SYM320240B7V13(藍膜) |
320x240 | 160.0x109.0x11.1 | 122.0x92.0 | 0.33x0.33 | VDD:5.0V | FSTN/STN/Blue/Negative/Transmissive | RA8835AP3N+TSC2046 | 圖片 |
| 12864666V10 |
128*64 | 93.0*70.0*12.5 | 72.0*40.0 | 0.48*0.48 | 3.3v/5v | LED | AIP31020/1 | 圖片 |

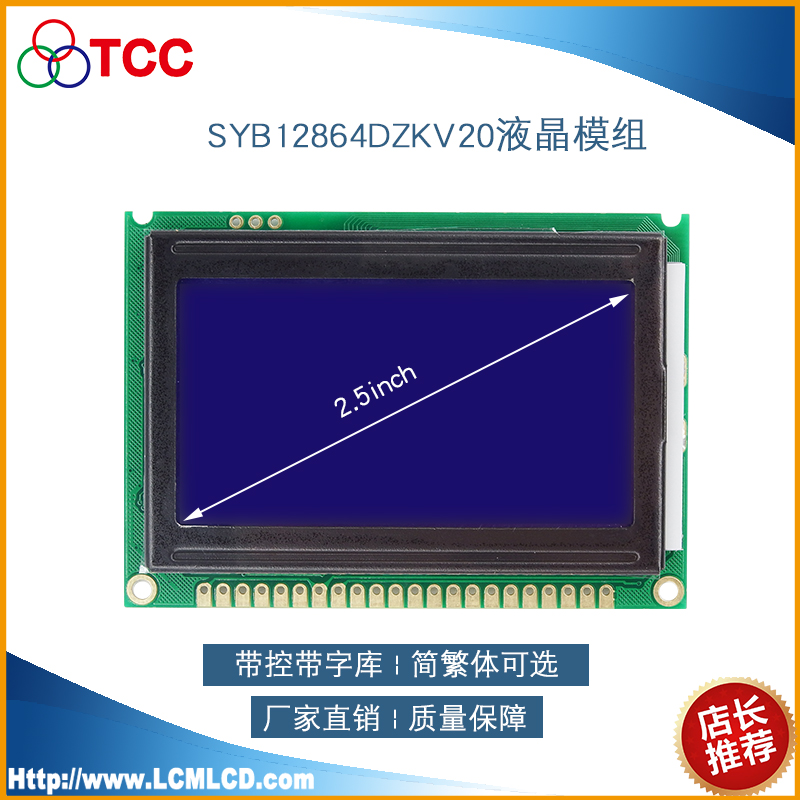

| SYB12864DZKV20 |
128*64 | 75*52.8*9 | 60*32.6 | 0.4*0.4 | 5V | LED | AIP31020orST7920 | 圖片 |
| SYB12232AYV11 |
122*32 | 84.0*44.0*13.0 | 60.0*18.0 | 0.40*0.45 | 3.3v/5v | LED | SBN1661G | 圖片 |
| SYM240128HV30 |
240*128 | 159.4*101.25*11 | 124*70 | 0.47*0.47 | 5V | LED | T6963 | 圖片 |

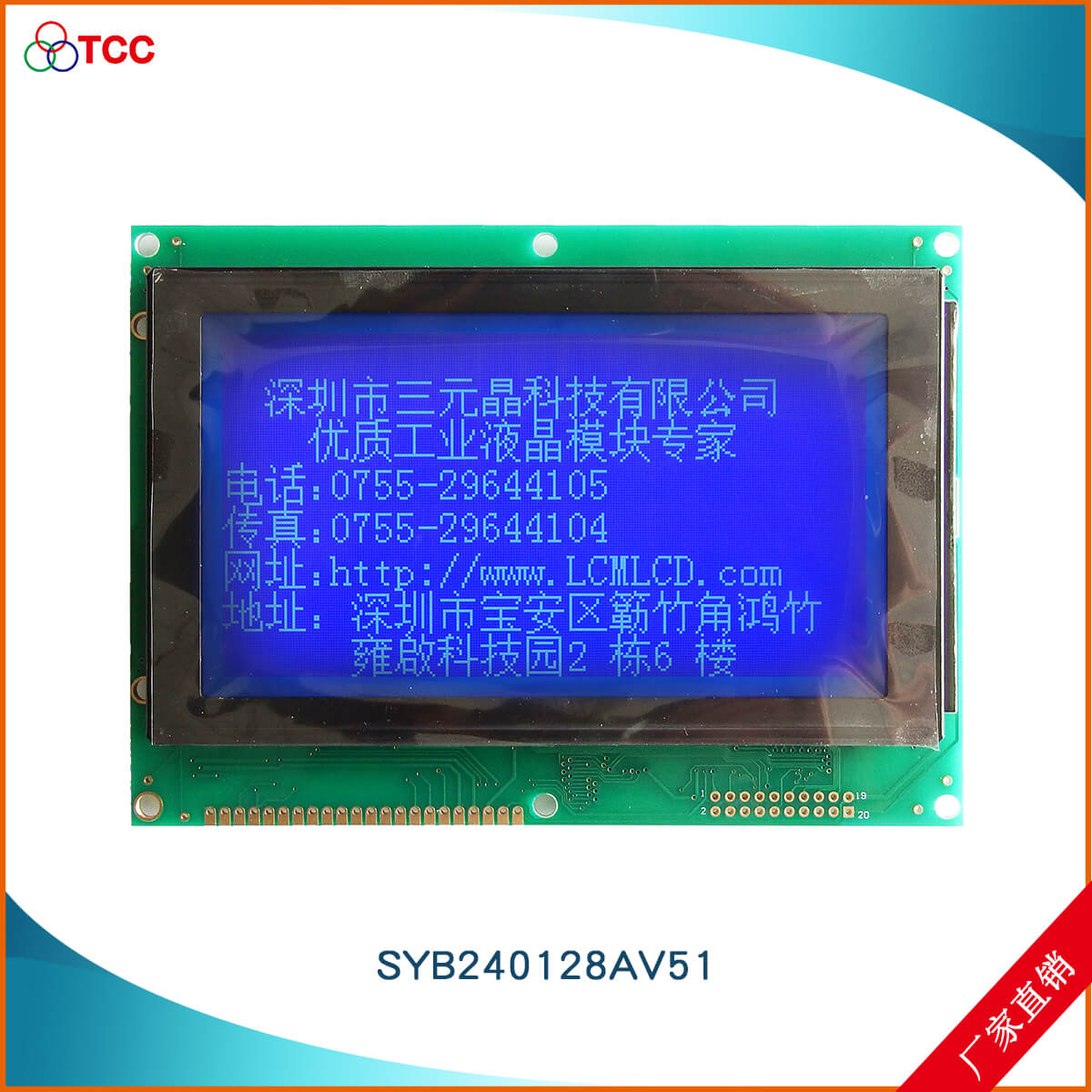

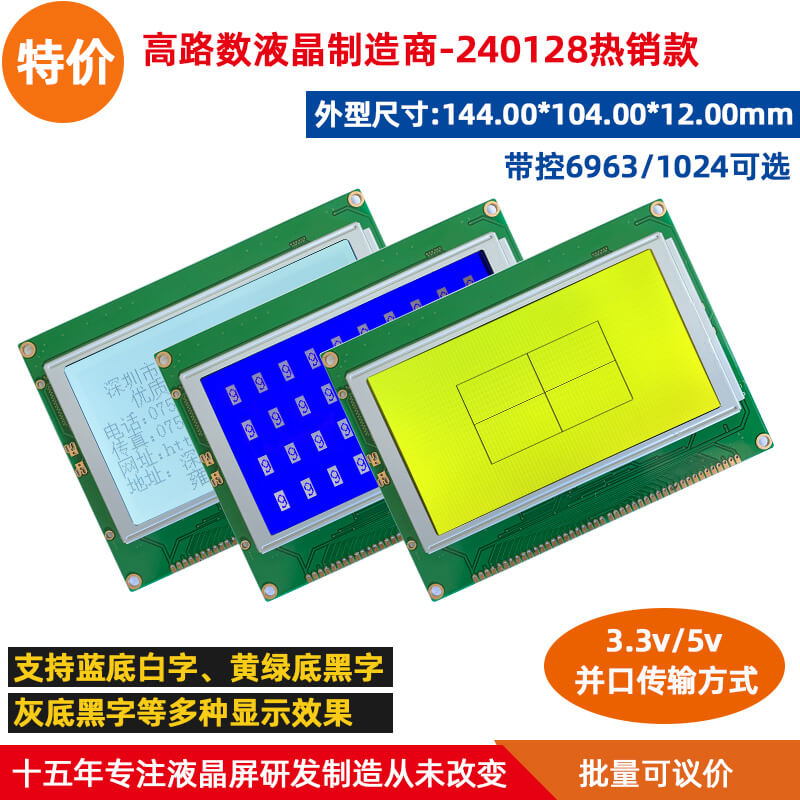

| SYB240128AV51 |
240*128 | 144.00*104.00*12.00mm | 114.00*64.00mm | 0.42*0.42 mm | VDD:5.0V | Edge White LED | T6963C or UCL6963 | 圖片 |

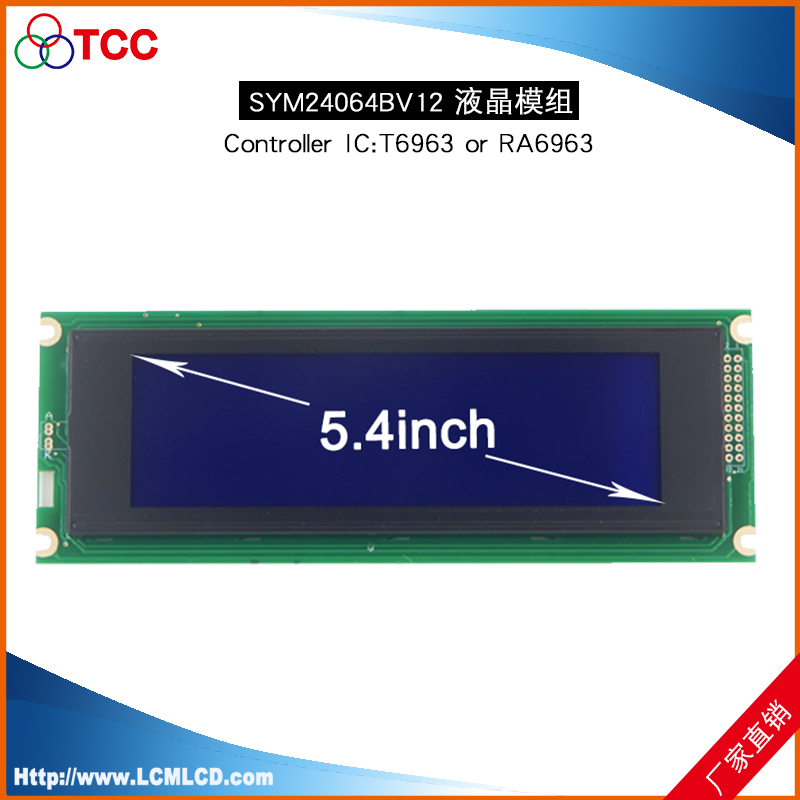

| SYM24064BV12 |
240*64 | 180.00*65.00*12.50 | 132.60*39.00 | 0.49*0.49 | VDD:5.0v | Array,Y-G | T6963 or RA6963 | 圖片 |
| SYM320240B8V20 |
320*240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 3.3V5V | LED | 8835 | 圖片 |
| SYB240128AV21 |
240*128 | 144.0*104*12.5 | 114.0*64.0 | 0.40*0.40 | 3.3V/5V | LED | 6963 | 圖片 |
| SYM320240B7V351 |
320*240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 3.3V5V | LED | 8835 | 圖片 |

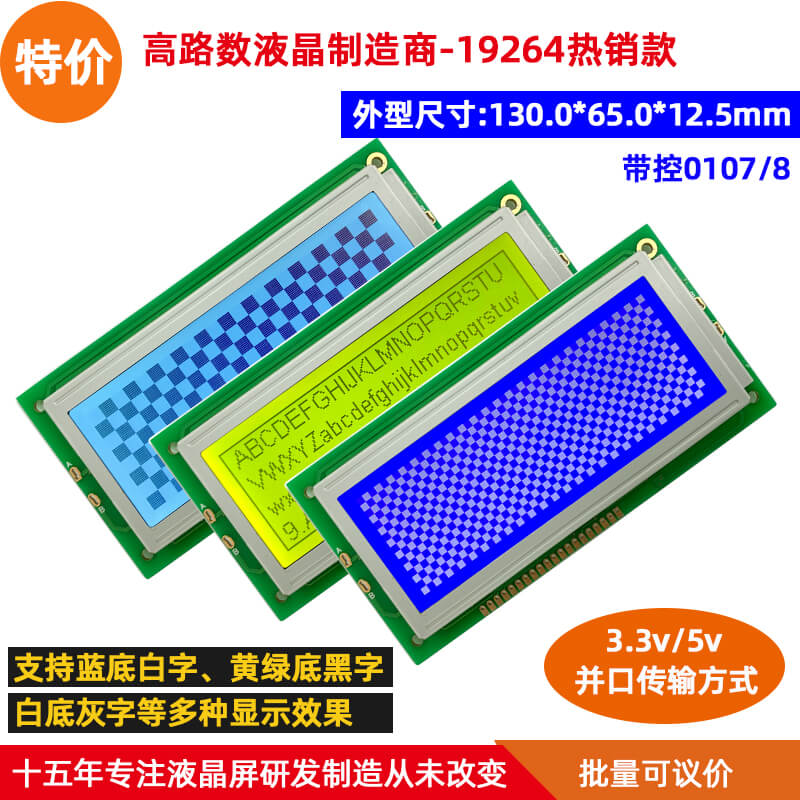

| 19264-999 |
192*64 | 130.0*65.0*12.5 | 104.0*39.0 | 0.458*0.458 | 5V | LED | AIP31107 | 圖片 |
| 240128-888V21 |
240*128 | 144.0*104.0*12.0 | 114.0*63.7 | 0.42*0.42 | 5V | LED | 6963 | 圖片 |
| 12864-888 |
128*64 | 93.0*70.0*12.5 | 72.0*40.0 | 0.48*0.48 | 5V | LED | AIP31107 | 圖片 |
| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |
| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |

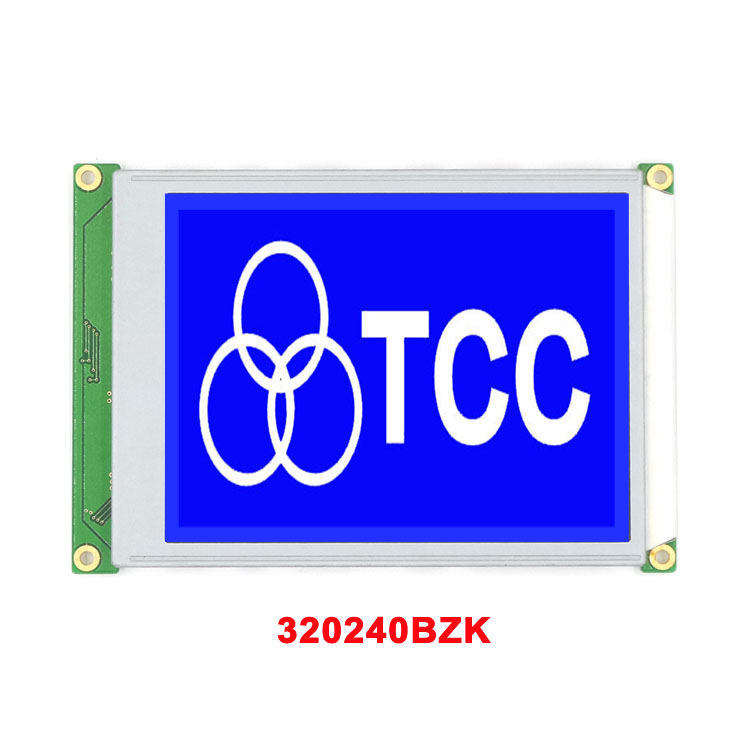

| 320240BZKB31 |
320240 | 160.0*109.0*11.0 | 122.0 x 92.0 | 0.33 x 0.33 | 5V | LED | RA8806 | 圖片 |
| SYT320240FZKV20 |
320240 | 94.0*66.6*8.5 | 78.8*59.6 | 0.23*0.23 | 5V | LED | RA8803\RA8806 | 圖片 |

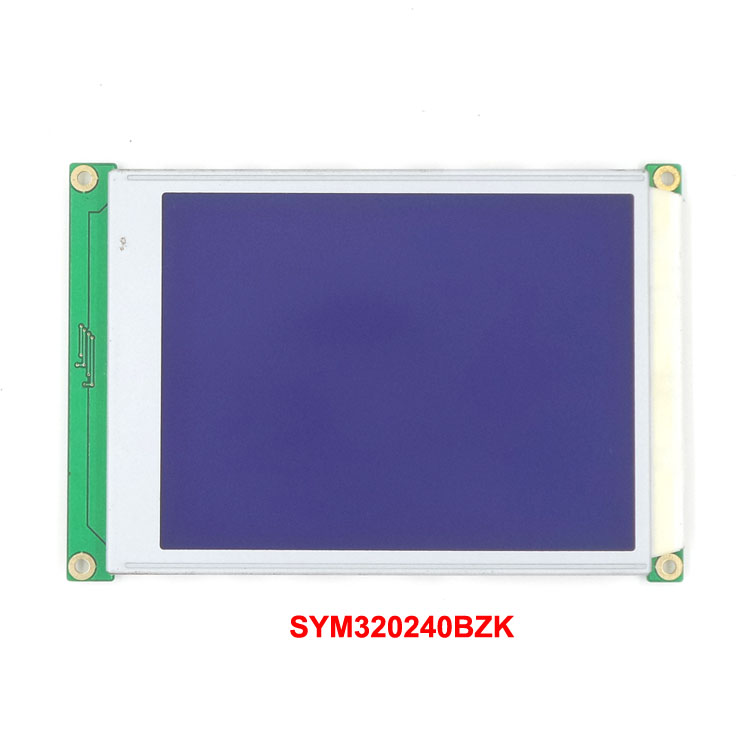

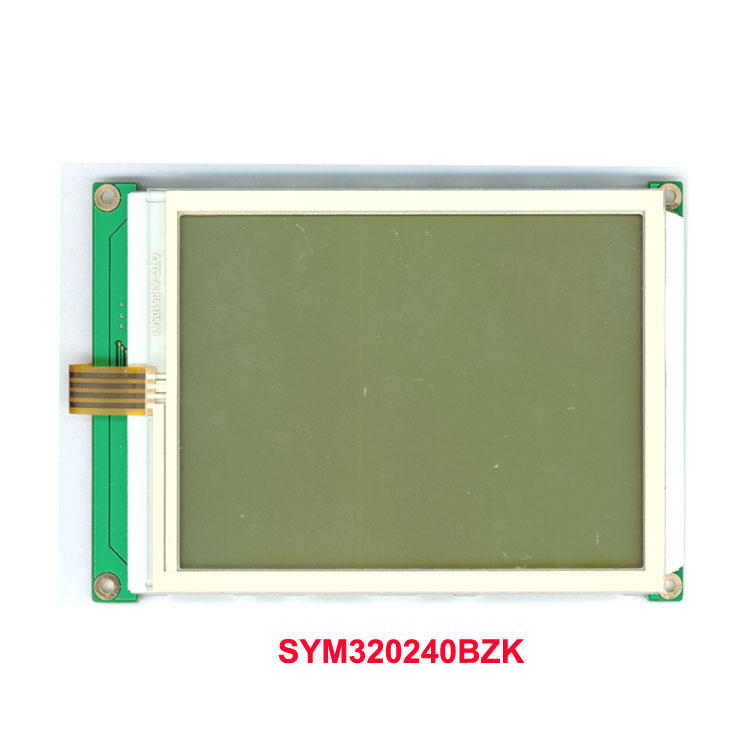

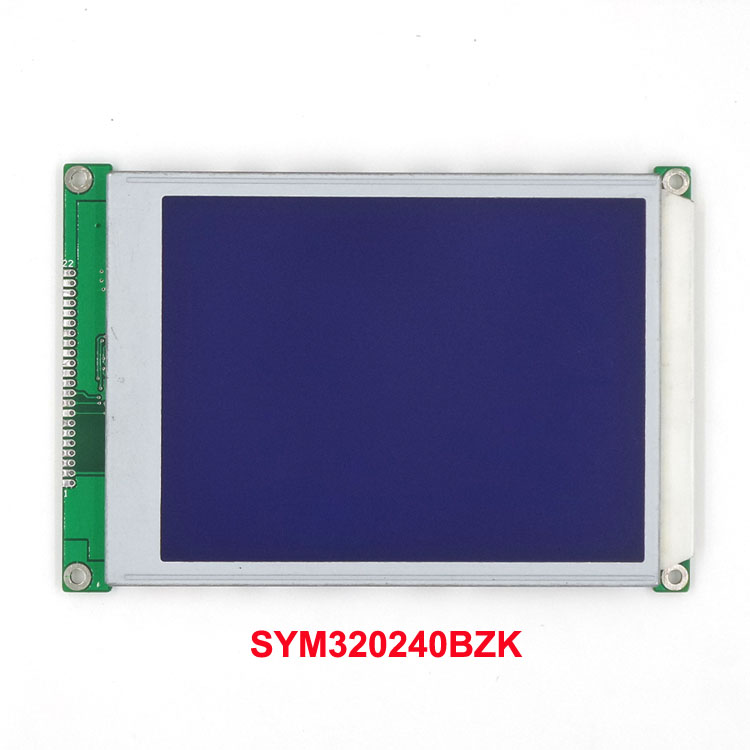

| SYM320240BZKV33 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8803\RA8806 | 圖片 |
| SYM320240BZKV30 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8803\RA8806 | 圖片 |
| SYM320240BZKV20 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8803\RA8806 | 圖片 |
| SYM320240BZKV13 |
320240 | 160.0*109.0*11.0 | 122.0*92.0 | 0.33*0.33 | 5Vor3.3V | LED/CCFL | RA8803\RA8806 | 圖片 |
| SYT320240B4V30 |
320240 | 167.0*109.0*8.6 | 122.0*92.0 | 0.33*0.33 | 5V | LED/CCFL | RA8806\S1D13700 | 圖片 |
| SYT320240B4V20 |
320240 | 167.0*109.0*8.6 | 122.0*92.0 | 0.33*0.33 | 5V | LED/CCFL | RA8835 | 圖片 |
| SYM240128IZKV10 |
240x128 | 140.0*82.0*14.0 | 121.4*63.5 | 0.42*0.42 | 5Vor3.3V | LED | RA8806 | 圖片 |
| SYB240128AZKV80 |
240128 | 144.0×104.0×13.0 | 114.0×64.0 | 0.40×0.40 | 5Vor3.3V | LED | RA8822 | 圖片 |
| SYB240128AZKV70 |
240128 | 144.0×104.0×13.0 | 114.0×64.0 | 0.40×0.40 | 5Vor3.3V | LED | RA8822 | 圖片 |

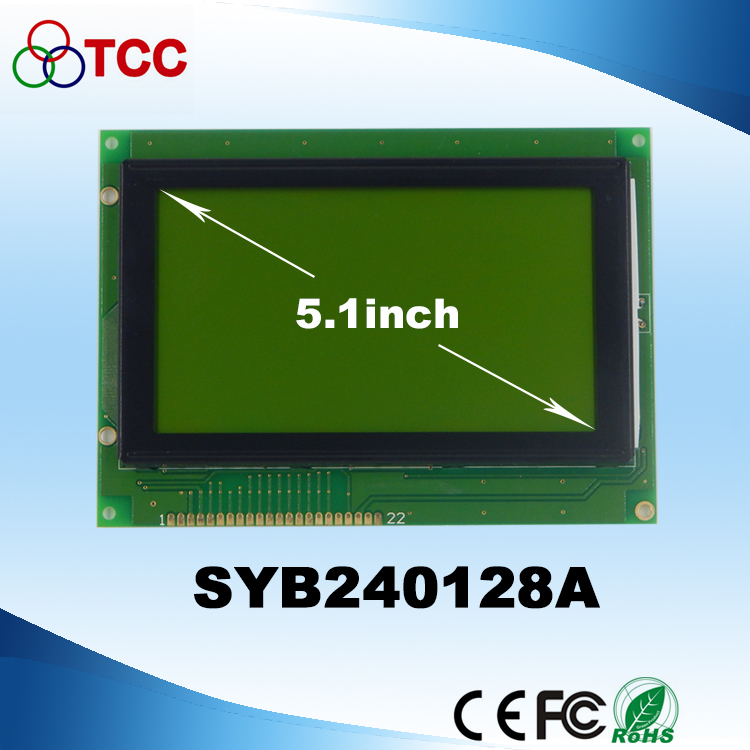

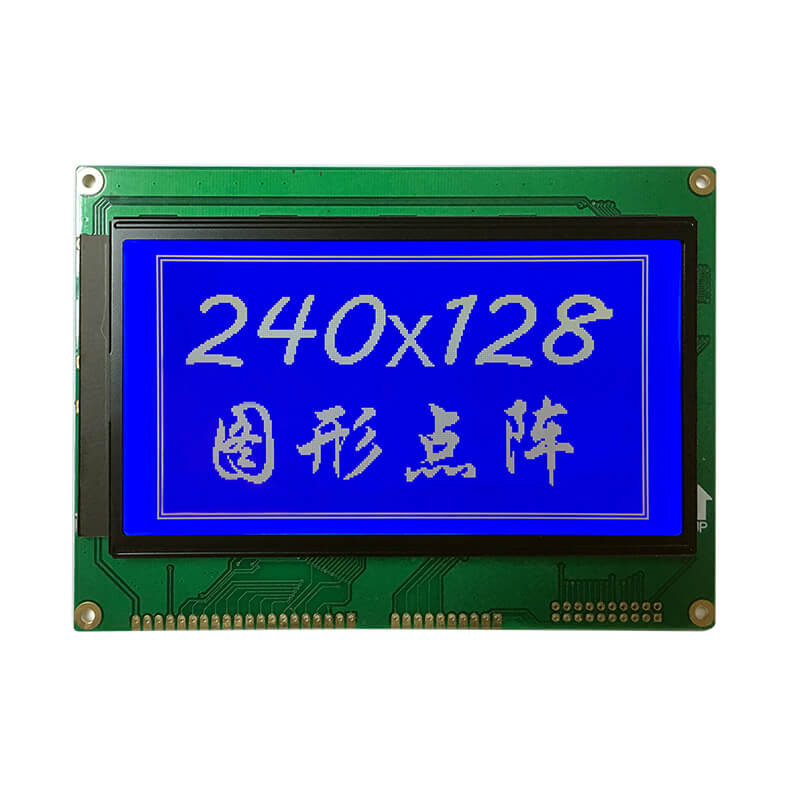

| SYB240128AZKV31 |
240x128 | 144.0x 104x13.0 | 114.0x64.0 | 0.40x0.40 | 5Vor3.3V | LED | RA8822 | 圖片 |
| SYM24064BZKV11 |
24064 | 180.0*65.0*13.5 | 132.6*39.0 | 0.49*0.49 | 5V | LED | RA8822 | 圖片 |
| SYB24064BZKV32 |
24064 | 180.0*65.0*13.5 | 132.6*39.0 | 0.48*0.48 | 5V | LED | RA8822 | 圖片 |
| SYB12864K5V20 |
128x64 | 93.0*70.0*14 | 72.0*39.0 | 0.48*0.48 | 5Vor3.3V | LED | ST7920 | 圖片 |

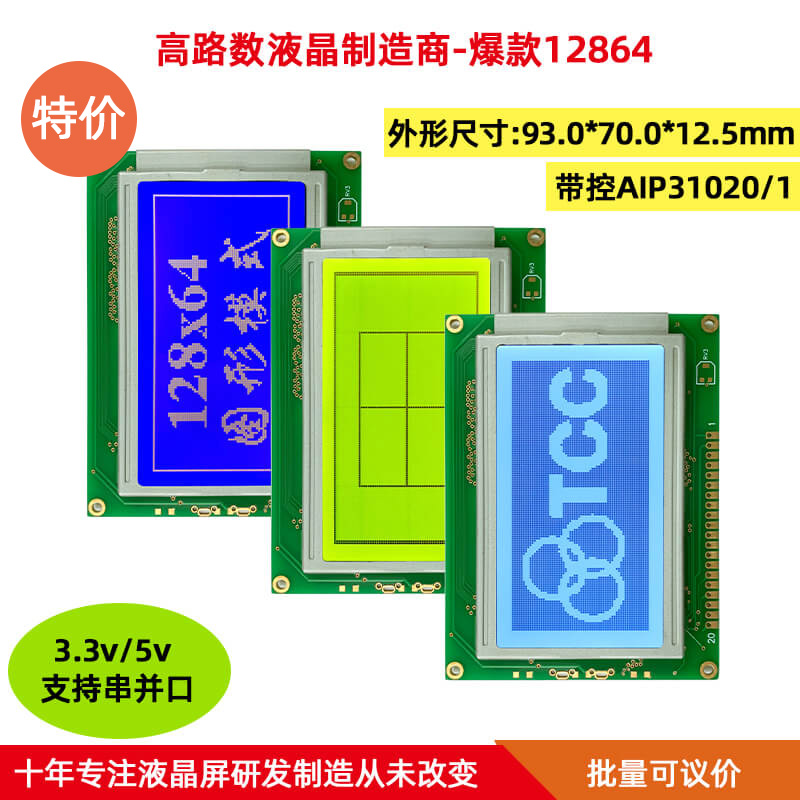

| SYB12864KZKV15 |
12864 | 93.0*70.0*12.5 | 72.0*39.0 | 0.48*0.48 | 5Vor3.3V | LED | ST7920 | 圖片 |
| SYB12864JZKV11 |
12864 | 78*70*12 | 62.0*44.0 | 0.39*0.44 | 3.3v，5v | LED | ST7920,ST7921 | 圖片 |
| SYB12864AZKV20 |
12864 | 113.0*65.0*13.0 | 73.4*38.80 | 0.46*0.46 | 5Vor3.3V | LED | ST7920 | 圖片 |
| SYB16032AZKV20 |
16032 | 122.0*44.0*13.0 | 99.0*24.0 | 0.55*0.55 | 5Vor3.3V | LED | ST7920 | 圖片 |

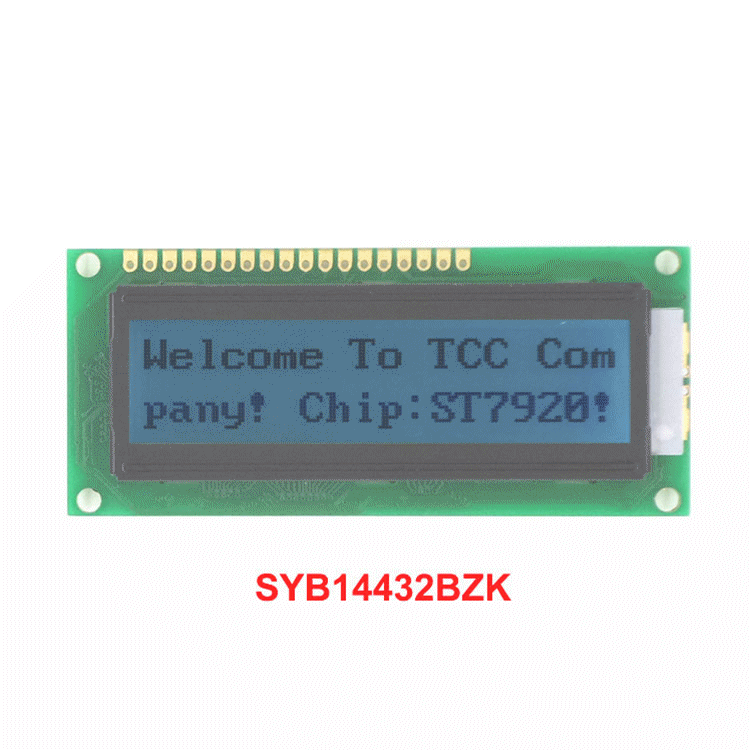

| SYB14432BZKV10 |
14432 | 80.8*35*11.5 | 64.0*16.0 | 0.39*0.39 | 5Vor3.3V | LED | ST7920 | 圖片 |
| SYB12832BZKV30 |
12832 | 80.6*42.8*13.0 | 60.0*18.0 | 0.36*0.41 | 5Vor3.3V | LED | ST7920 | 圖片 |
| SYB12232AZKV11 |
12232 | 84.0*44.0*12.5 | 60.0*18.0 | 0.36*0.42 | 5V | LED | ST7920 | 圖片 |
| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |
| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |

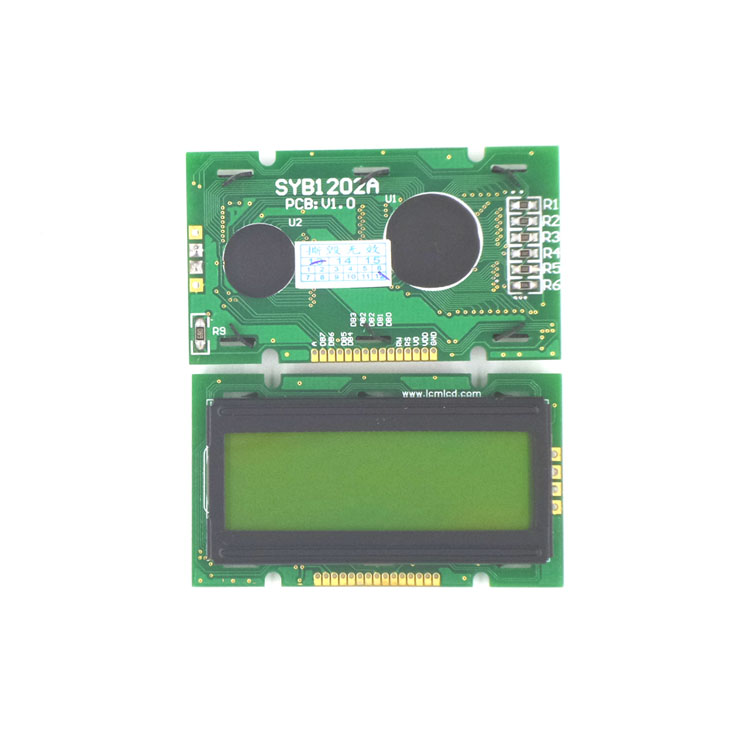

| SYB1202AV10 |
1202 | 55.7*32.0*12.8 | 46.0*15.5 | 0.45*0.60 | 5V | LED | SPLC780D | 圖片 |

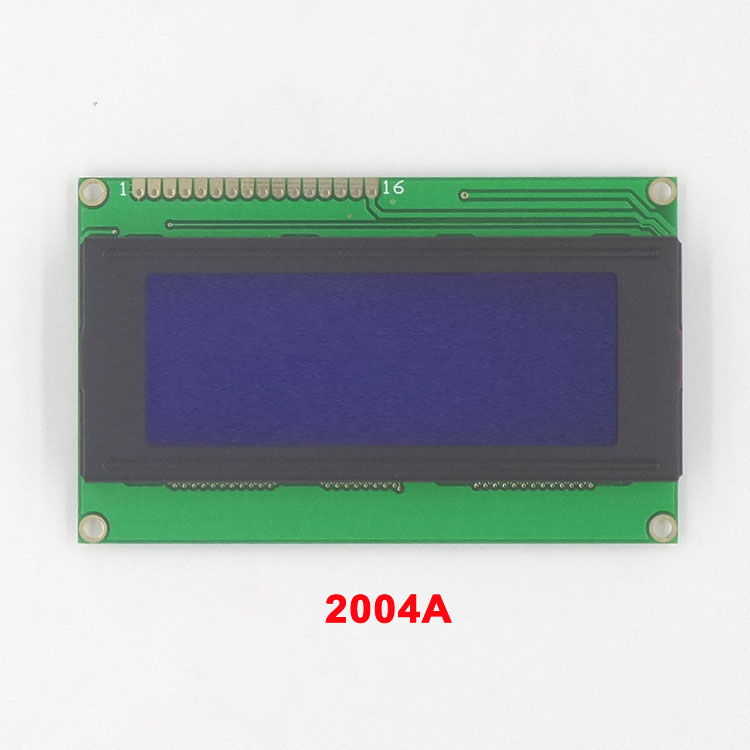

| SYB2004AV12 |
2004 | 98.0*60.0*14.0 | 76.0*25.2 | 0.55*0.55 | 5Vor3.3V | LED | SPLC780D | 圖片 |
| SYB2004AV10 |
2004 | 98.0*60.0*14.0 | 76.0*25.2 | 0.55*0.55 | 5Vor3.3V | LED | SPLC780D | 圖片 |

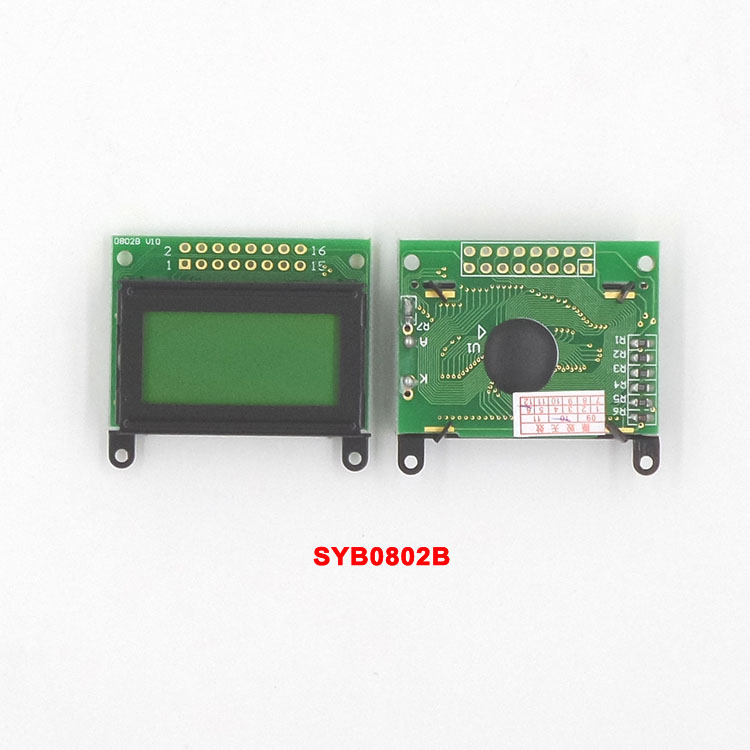

| SYB0802BV10 |
0802 | 40.0*35.5*6 | 30.0*14.0 | 0.49*0.49 | 5Vor3.3V | LED | SPLC780D | 圖片 |

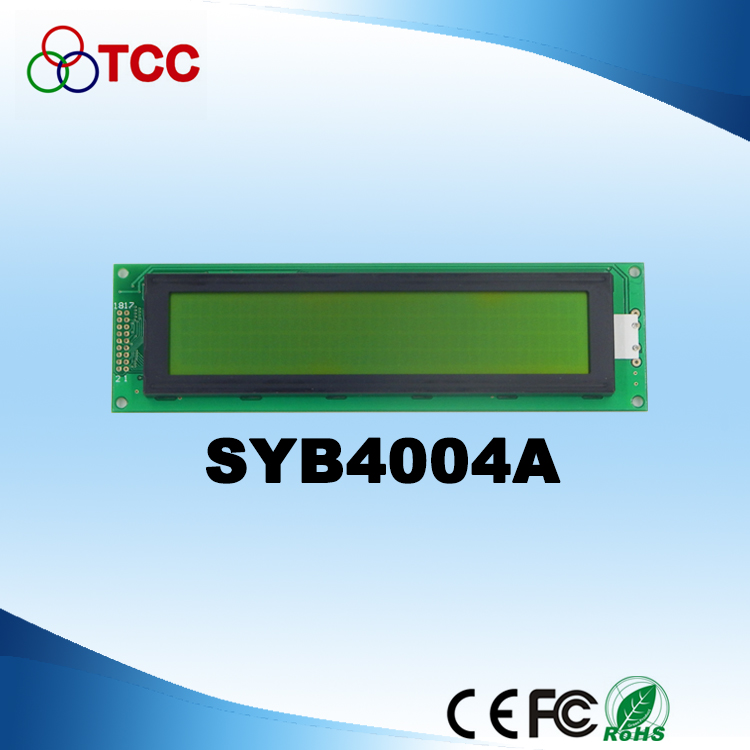

| SYB4004AV21 |
40x4 | 190.0*54.0*14.0 | 149.0*23.3 | 0.50*0.55 | 5V | LED | SPLC780D | 圖片 |

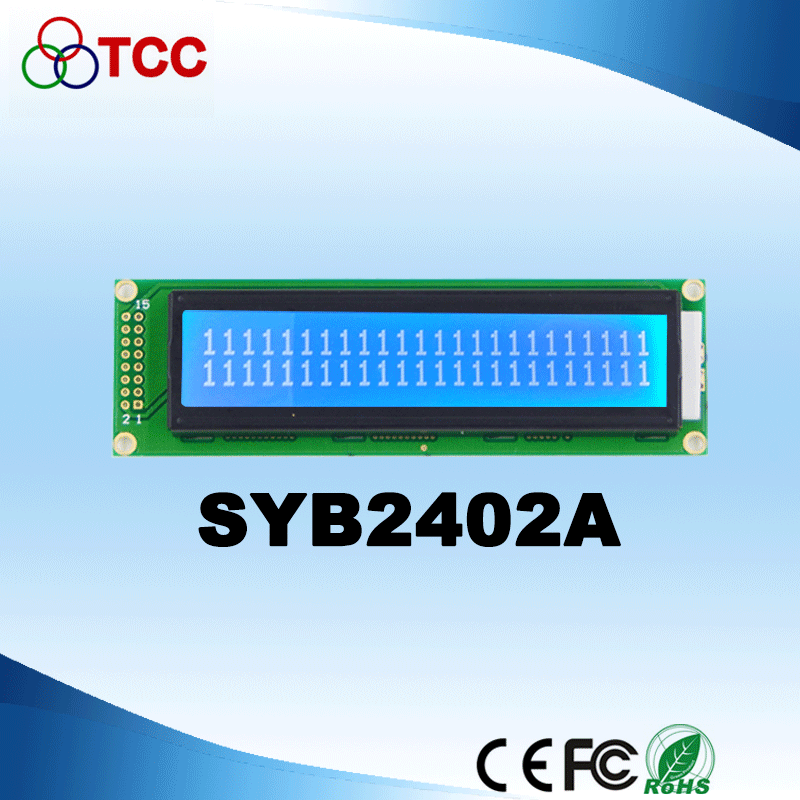

| SYB2402AV10 |
2402 | 118.0*36.0*14.0 | 95.0*17.0 | 0.60*0.65 | 5V | LED | SPLC780D | 圖片 |

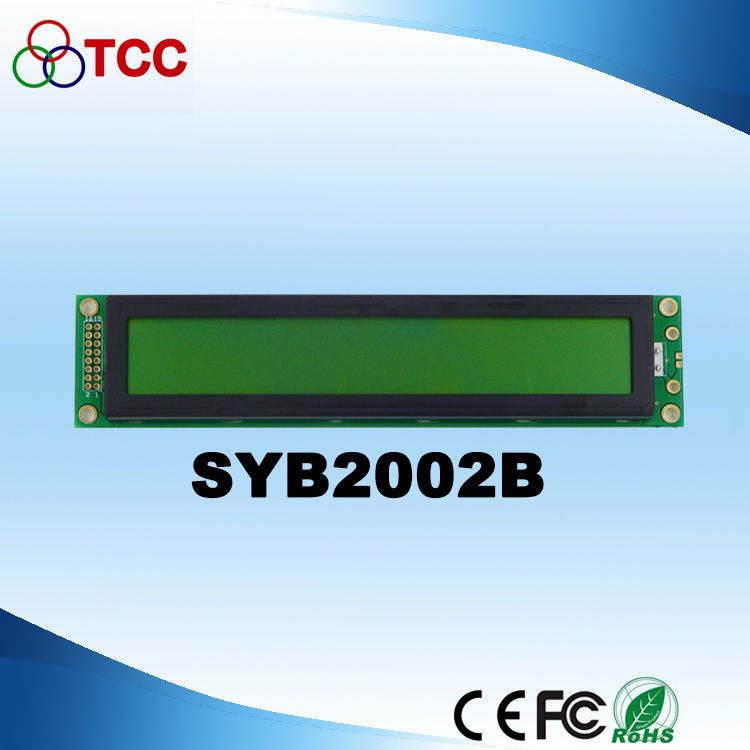

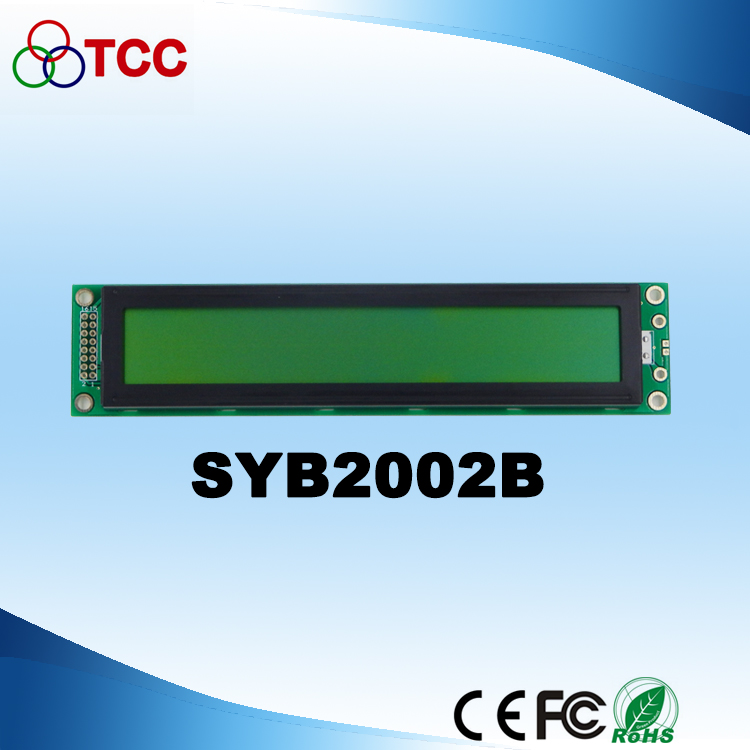

| SYB2002BV20 |
2002 | 180.0*40.0*14.0 | 149.0*23.0 | 1.10*1.10 | 5Vor3.3V | LED | SPLC780D | 圖片 |
| SYB2002BV11 |
2002 | 180.0*40.0*14.0 | 149.0*23.0 | 1.10*1.10 | 5Vor3.3V | LED | SPLC780D | 圖片 |
| SYB2002AV10 |
2002 | 116.0*37.0*14.0 | 83.0*18.5 | 0.61*0.63 | 5V | LED | SPLC780D | 圖片 |
| SYB1604CV10 |
16x4 | 70.0*58.0*11.0 | 61.7*25.2 | 0.55*0.55 | 5V | LED | SPLC780D | 圖片 |

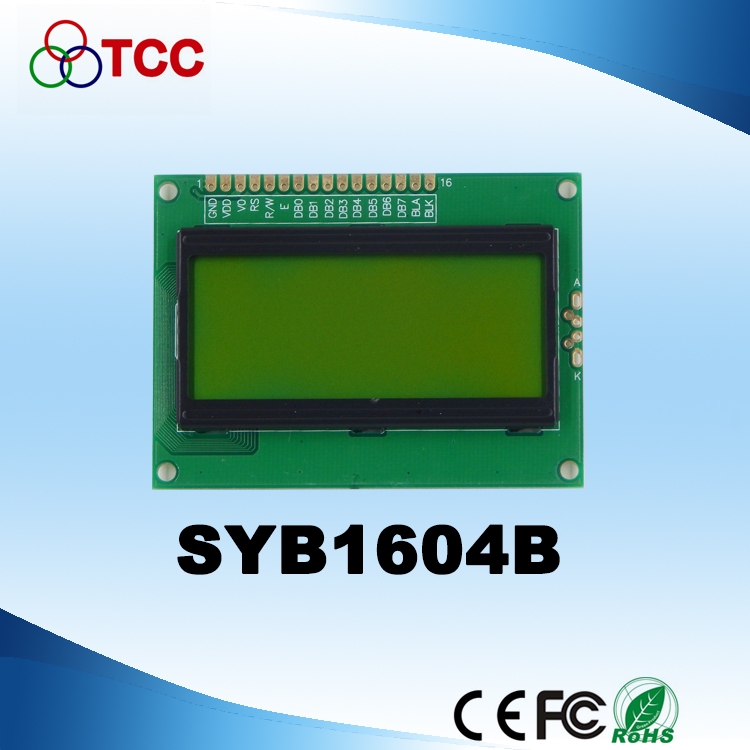

| SYB1604BV10 |
16x4 | 74.5*55.0*11.0 | 61.7*25.2 | 0.55*0.55 | 5V | LED | SPLC780D | 圖片 |

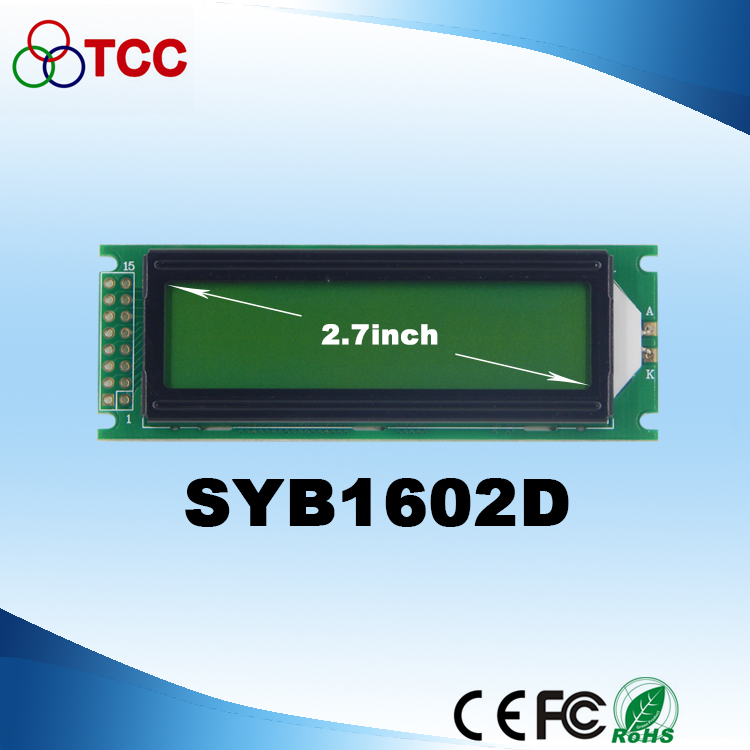

| SYB1602DV11 |
1602 | 85.0*30.0*12.0 | 66.0*16.0 | 0.56*0.66 | 5Vor3.3V | LED | SPLC780D | 圖片 |
| SYB1602DV10 |
1602 | 85.0*30.0*12.0 | 66.0*16.0 | 0.56*0.66 | 5Vor3.3V | LED | SPLC780D | 圖片 |
| SYB1602C1V10 |
1602 | 84.0*44.0*12.3 | 65.0*17.0 | 0.56*0.61 | 5Vor3.3V | LED | SPLC780D | 圖片 |

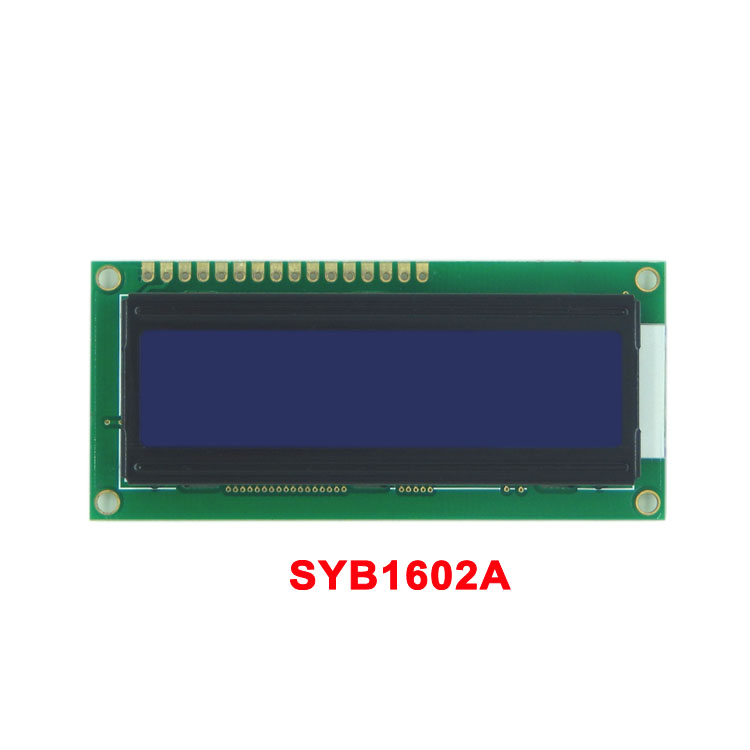

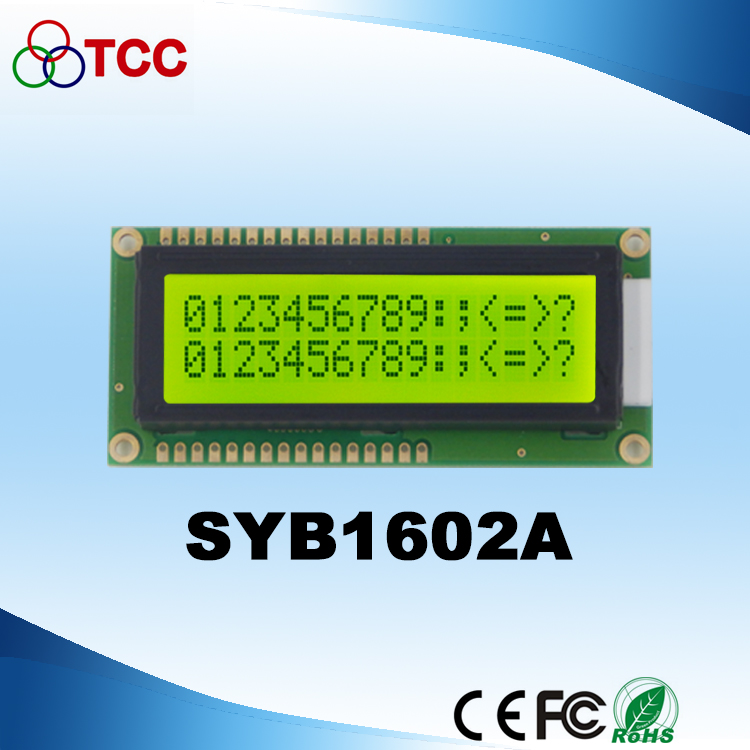

| SYB1602A4V10 |
1602 | 80.0*36.0*12.3 | 62.2*17.9 | 0.55*0.65 | 5Vor3.3V | LED | SPLC780D | 圖片 |
| SYB1602A3V11 |
1602 | 80.0*36.0*12.3 | 64.5*13.8 | 0.55*0.50 | 5Vor3.3V | LED | SPLC780D | 圖片 |
| SYB1602A2V10 |
16x2 | 80.0*36.0*13.5 | 62.2*17.9 | 0.55*0.65 | 5V | LED | SPLC780D | 圖片 |
| SYB1602AV30 |
1602 | 80.0*36.0*9.0 | 66.0*16.0 | 0.55*0.50 | 5Vor3.3V | LED | SPLC780D | 圖片 |

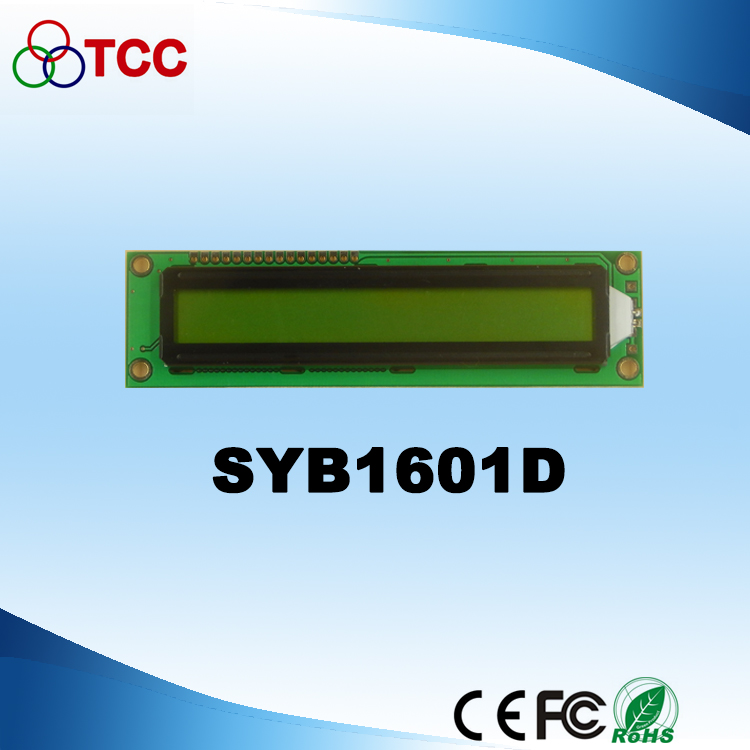

| SYB1601DV10 |
1601 | 122.0*33.0*11.0 | 99.0*13.0 | 0.92*1.12 | 5Vor3.3V | LED | SPLC780D | 圖片 |

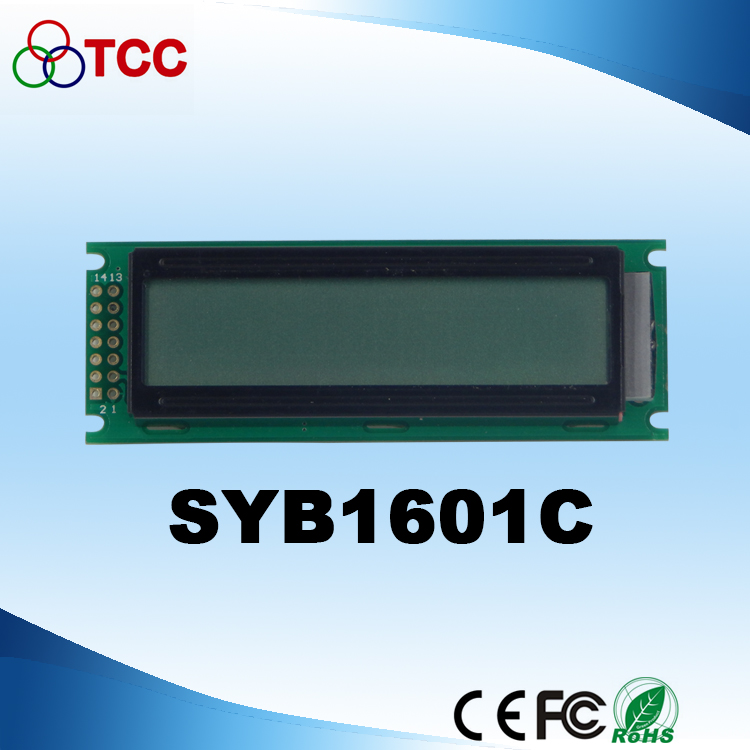

| SYB1601CV10 |
16x1 | 85.0x30.0x12.3 | 64 .5x13.5 | 0.60x0.70 | 5V or 3.3V | LED | SPLC780D | 圖片 |
| SYB1601A2V11 |
1601 | 80.0x36.0 | 64 .0x13.8 | 0.60x0.70 | 5Vor3.3V | LED | SPLC780D | 圖片 |

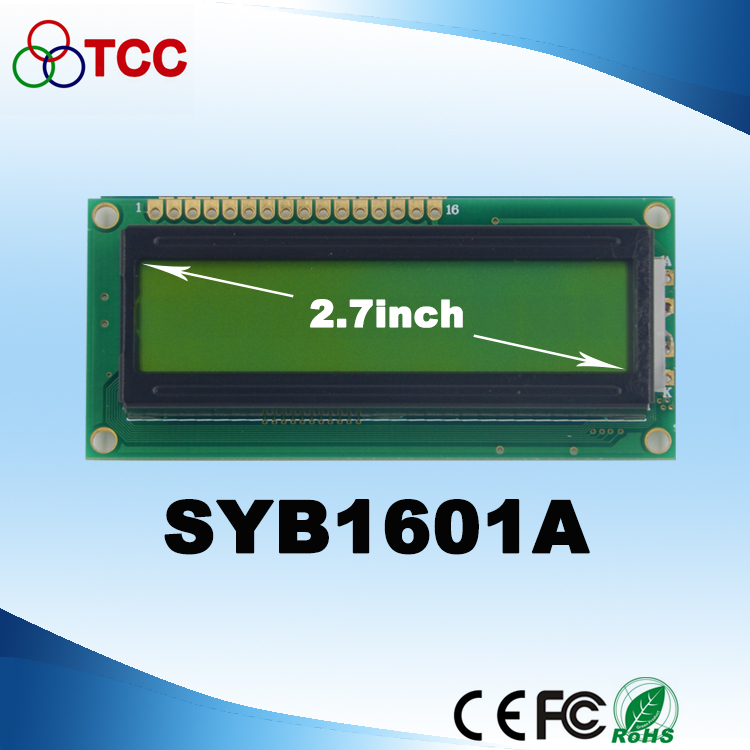

| SYB1601A1V10 |
1601 | 81.5x37.5x12.3 | 64 .5x13.5 | 0.60x0.70 | 5Vor3.3V | LED | SPLC780D | 圖片 |
| SYB0801BV10 |
8*1 | 60.5*33.0*11.0 | 44.0*13.0 | 0.83*0.93 | 5Vor3.3V | LED | SPLC780D | 圖片 |

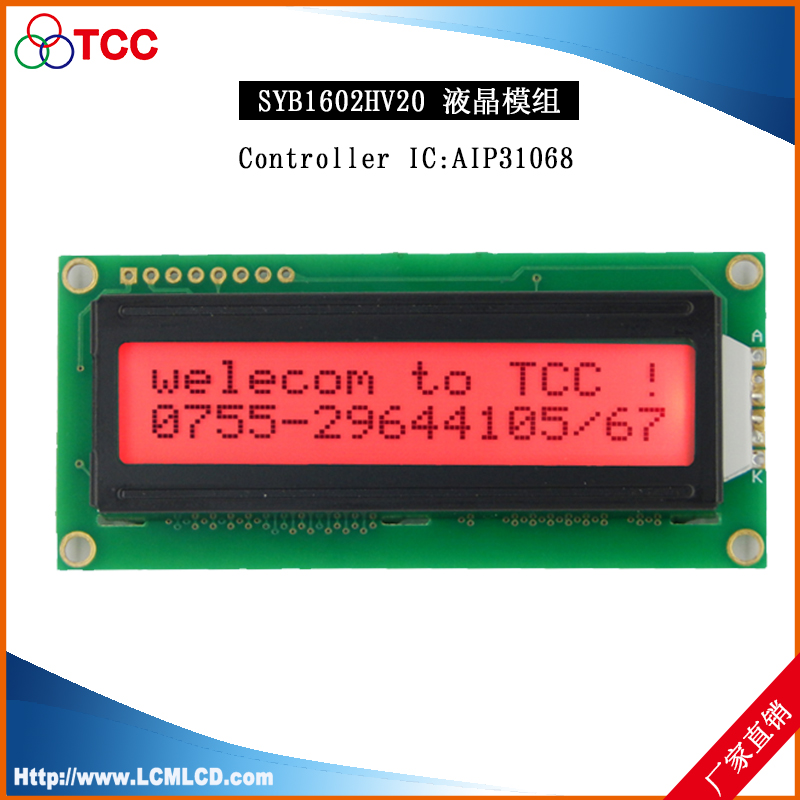

| SYB1602HV20 |
16x2 | 80.0x36.0x14.0 | 64.5x13.8 | 0.55x0.5 | VDD:5.0V | STN/Positive/Transflective/YG | AIP31068 | 圖片 |
| SYB1602DV11(藍膜) |
16x2 | 85.0X30.0X13.0 | 66.0X16.0 | 0.55X0.50 | VDD:5.0V | STN/Positive/Transflective/YG | SPLC780D1 | 圖片 |
| SYB0901AV13 |
9x1 | 100.00x27.00x11.35 | 69.00x13.00 | 1.05x1.20 | VDD:5V | Edge,YG LED | SPLC780 | 圖片 |
| SYB2004A2V10 |
20x4 | 98.00x60.00x13.06 | 77.0x26.3 | 0.55x0.55 | VDD:5.0V | STN/Blue/Negative/Transmissive | Compatible | 圖片 |
| SYB2004DV11 |
20x4 | 77.0x47.0x12.0 | 60.0x22.0 | 0.451x0.42 | VDD:5.0V | STN/Positive/Transflective/YG | SPLC780D1 | 圖片 |
| SYB2002A1V52 |
20x2 | 116.0*35.0*13.0 | 82.90*22.54 | 0.65*0.60 | 3.3v/5v可選 | Edge,white LED | 7066 | 圖片 |
| SYB1602BV11 |
16x2 | 122.0x44.0x13.0 | 99.0x24.0 | 0.92x1.1 | VDD:5.0V | STN/Positive/Transflective/YG | SPLC780D1 | 圖片 |

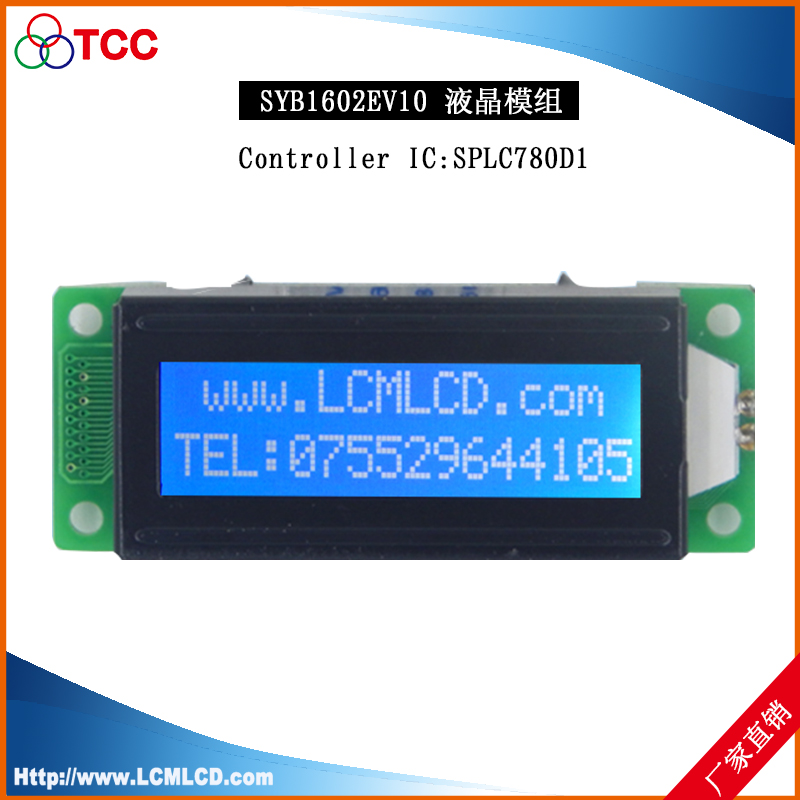

| SYB1602EV10(藍膜) |
16x2 | 53.0x20.0x11.1 | 36.0x10.0 | 0.33x0.35 | VDD:5.0V | LED | SPLC780D1 | 圖片 |
| SYB2002AV10(白底黑字) |
20x2 | 116.0x37.0x13.4 | 83.0x18.5 | 1.15x1.25 | VDD:5.0V | STN/Positive/Transflective/YG | SPLC780D1 | 圖片 |

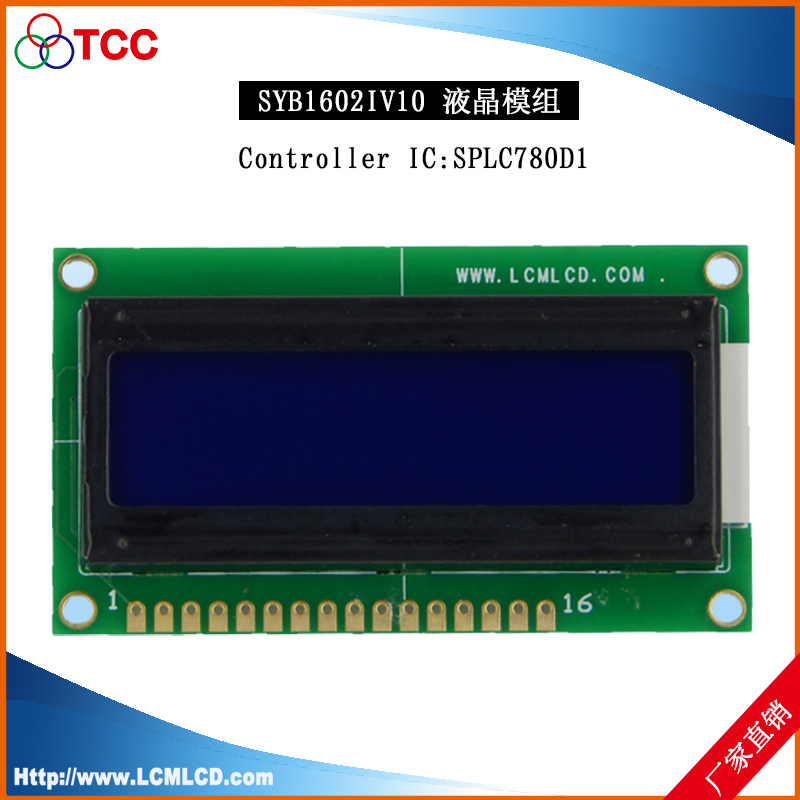

| SYB1602IV10 |
16x2 | 65.5x36.7x13.5 | 54.0x14.4 | 1.41x1.74 | Vlcm=3.0V | STN/Positive/Transflective/YG | SPLC780D1 | 圖片 |

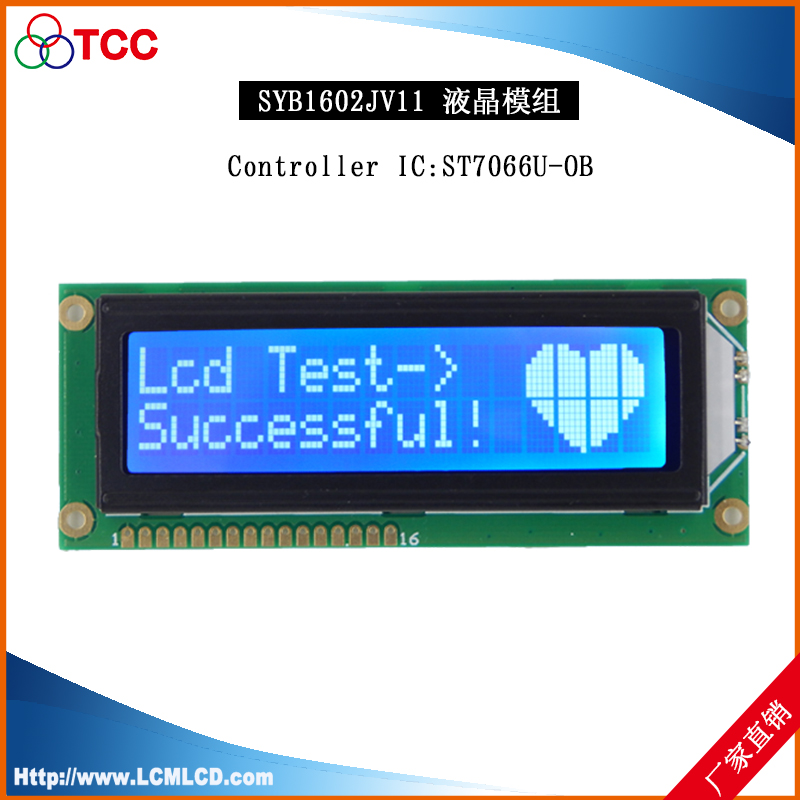

| SYB1602JV11 |
16x2 | 100.00x38.80x12.01 | 80.00x20.50 | 0.75x0.90 | VDD:5.0V | STN/Blue/Negative/Transmissive | ST7066U-OB | 圖片 |
| SYB0802C1V111 |
8x2 | 58.0x32.0x13.5 | 38.0x16.0 | 0.55x0.66 | VDD:3.3V | Edge White | SPLC780D1 | 圖片 |
| SYB1602A4V10 |
16*2 | 80.0*36.0*13.2 | 66.0*16.0 | 0.55*0.60 | 3.3v/5v | LED | SPLC780 | 圖片 |

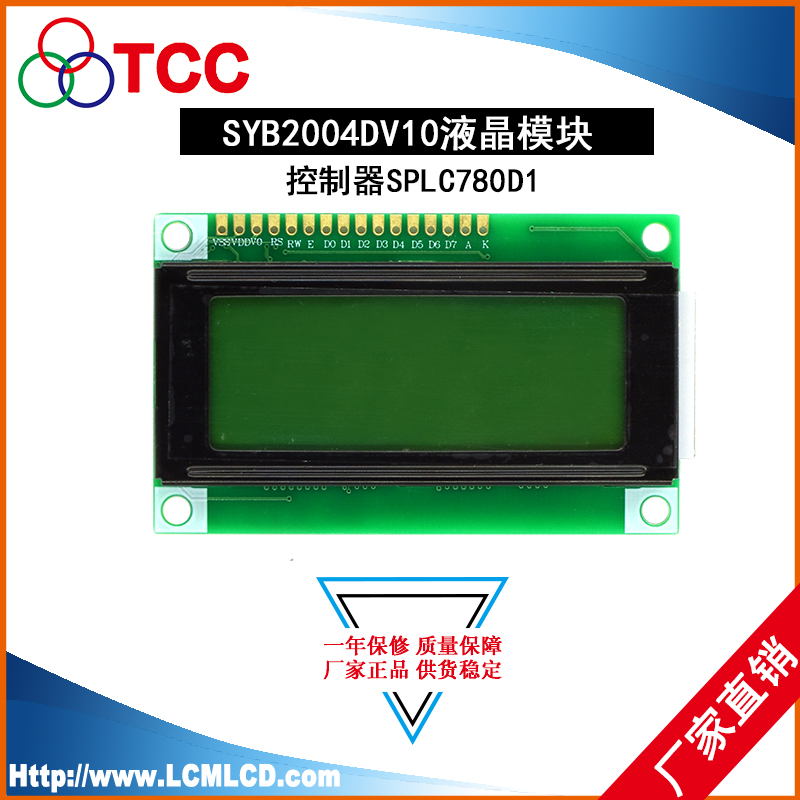

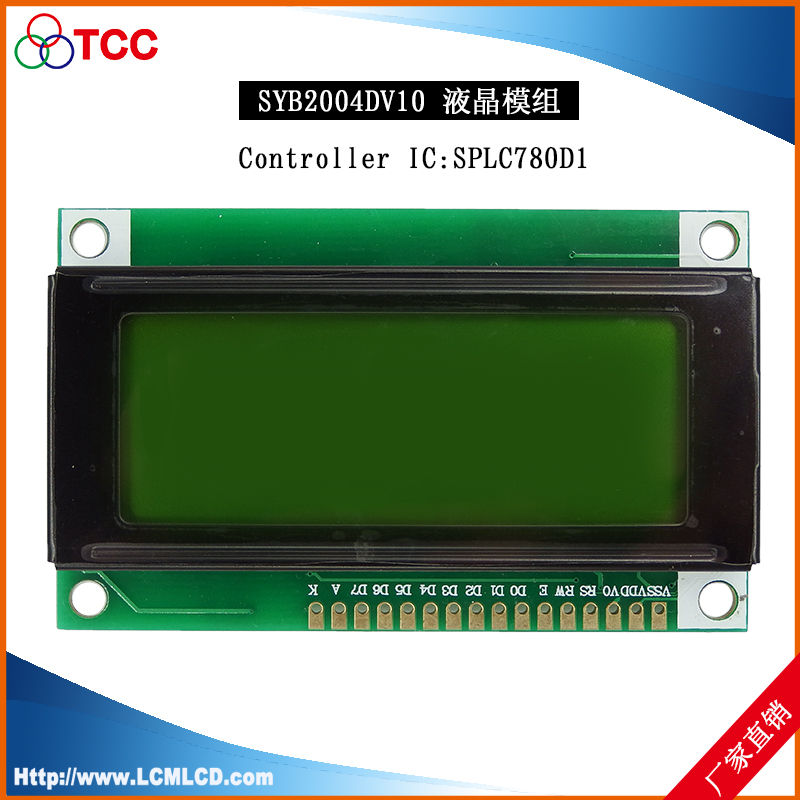

| SYB2004DV10 |
20x4 | 77.0x47.0x12.0 | 60.0x22.0 | 0.451x0.42 | VDD:5.0V | Edge,YG | SPLC780D1 | 圖片 |
| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |
| TM084SDHG01V10 |
800(RGB)×600 | 203*142.5*5.7 | 170.4*127.8 | ** | 5V | LED | NT52002+NT51008B*2 | 圖片 |
| TM080SDH01 |
800(RGB)*600 | 183*141*5.6 | 162.0*121.5 | 202.5(H)*202.5 (V) | 5V | LED | a-Si | 圖片 |
| 7寸彩屏800480 |
800x480 | 164.9*100*3.5 | 156.60*88.40 | 3.3 | led | ILI6128+ILI5960 | 圖片 | |
| AT070TN92 |
800(RGB)×480 | 164.9×100.0 | 154.08×85.92 | ** | 5V | LED | NO | 圖片 |
| AT070TN83 |
800(RGB)×480 | 165.0×104.0 | 152.40×91.44 | ** | 5V | LED | NO | 圖片 |
| SYC800480B070V20 |
800480 | 185.0×106.0×12.0 | 154.08×85.92 | 0.066*0.198 | 5V | LED | SSD1963 | 圖片 |

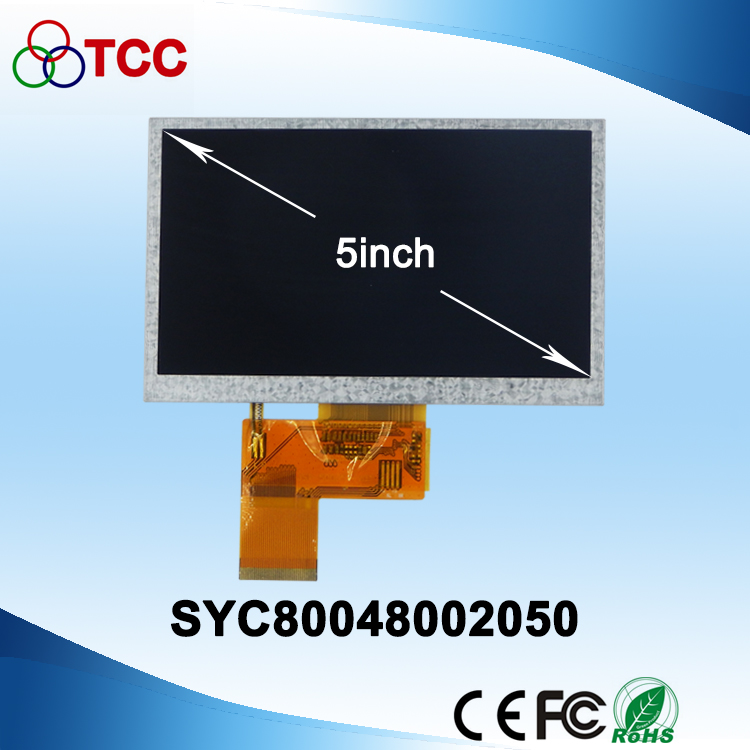

| SYC80048002050 |
800x480 | 120.7*75.8*3.10 | 108.0*64.8 | 0.135×0.135 | 5Vor3.3V | LED | OTD9960&OTA7001 | 圖片 |

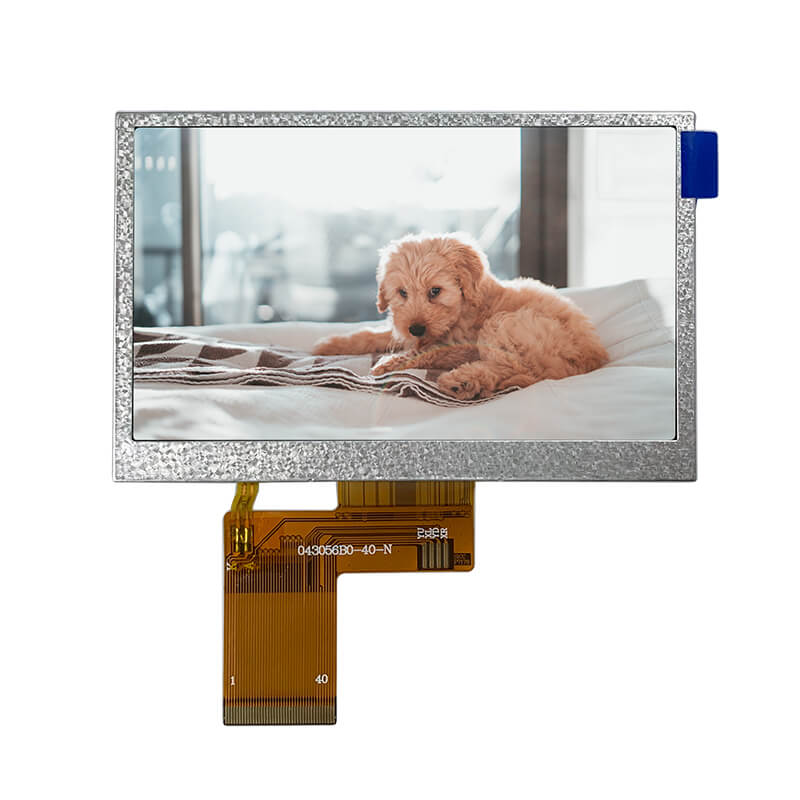

| 4.3-TFT |
480272 | 105.5*67.2*3.0 | 95.04*53.856 | 0.198*0.198 | 5Vor3.3V | LED | OTM5180A | 圖片 |
| 3.5-TFT |
320(RGB) X 240 | 76.9 x 63.9 x 3.15 | 70.08 x 52.56 | 0.219 x 0.219 | 3.3V | LED | NV3035C | 圖片 |

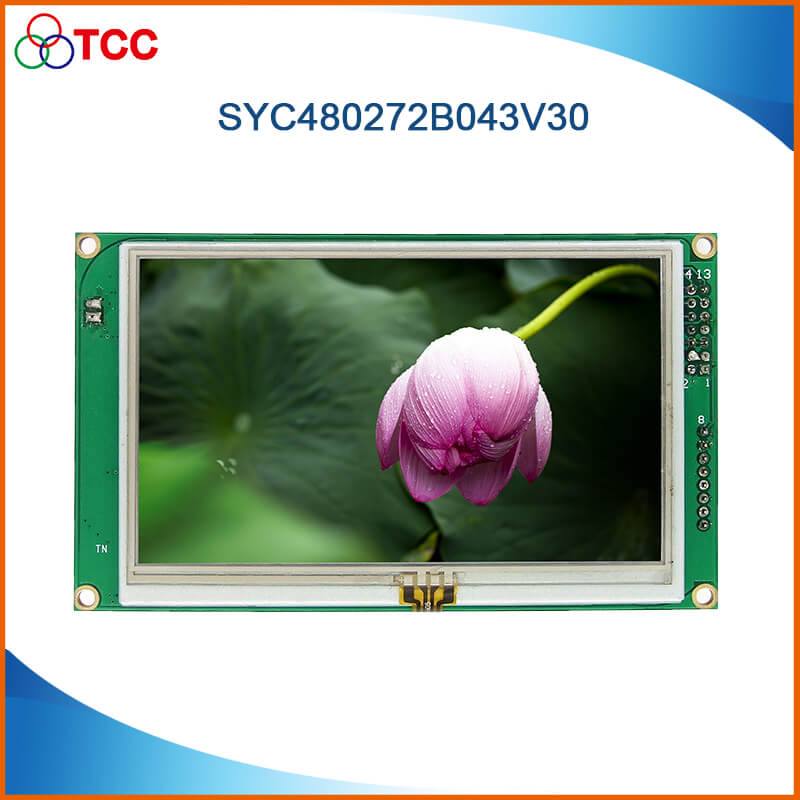

| SYC480272B043V30 |
480*272 | 123.5*72.2*8.2 | 98.7*57.5 | 3.3V | LED | 圖片 | ||
| SYC080SDH01 |
800*600 | 183.0*141.0*5.6 | 164.8 *124.3 | 0.0675×0.2025 | 3.3/12.5/22.0/-7.0V | LED | / | 圖片 |
| SYC4300J-05 |
480(RGB)x272 | 105.40x67.10x2.9 | 97.92x56.7 | / | 3.3v | 7chips white LEDS | ST7282E | 圖片 |
| SYC4300J-03 |
480(RGB)x272 | 105.40x67.10x2.9 | 97.92x56.7 | / | 3.3v | 7chips white LEDS | ST7282E | 圖片 |
| SYC800480B070 |
800*480 | 185.0*106.0*10.5 | 157.0*89.0 | 0.3*0.3 | 3.3V/5V | LED | RA8875 | 圖片 |

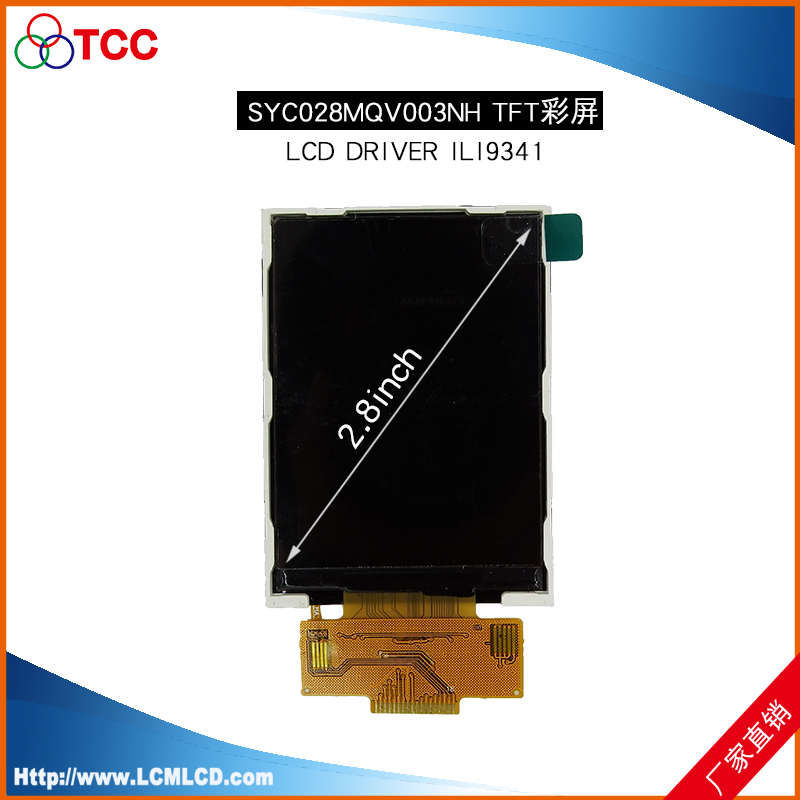

| SYC028MQV003NH |
240*320 | 50mm*69.2mm*3.6mm | 43.2mm*57.6mm | 3V | ILI9341 | 圖片 | ||

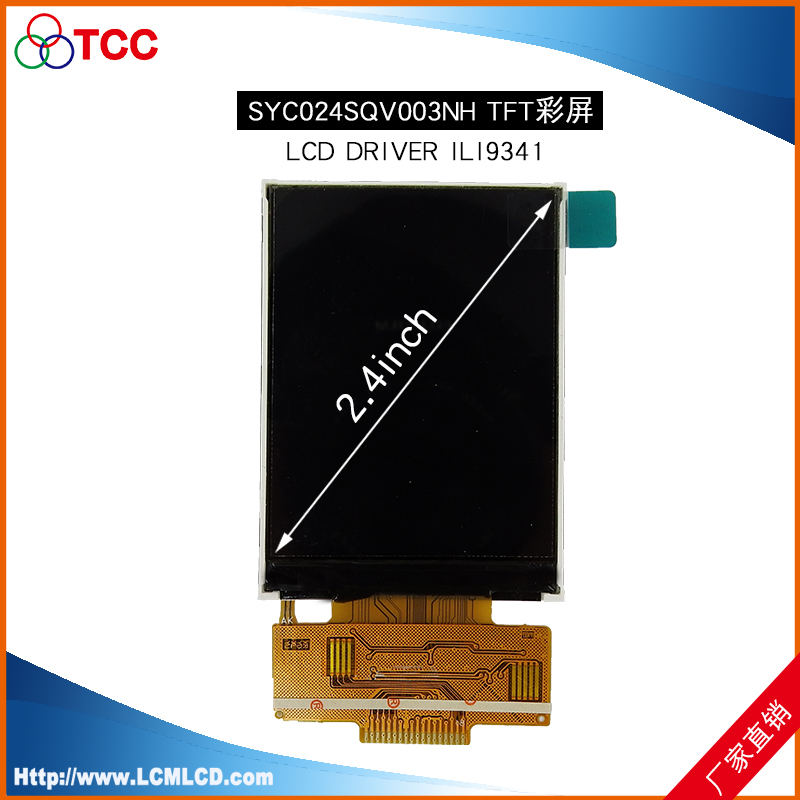

| SYC024SQV003NH |
240*320 | 42.72mm*60.26mm*3.45mm | 36.72mm*48.96mm | 3V | ILI9341 | 圖片 | ||

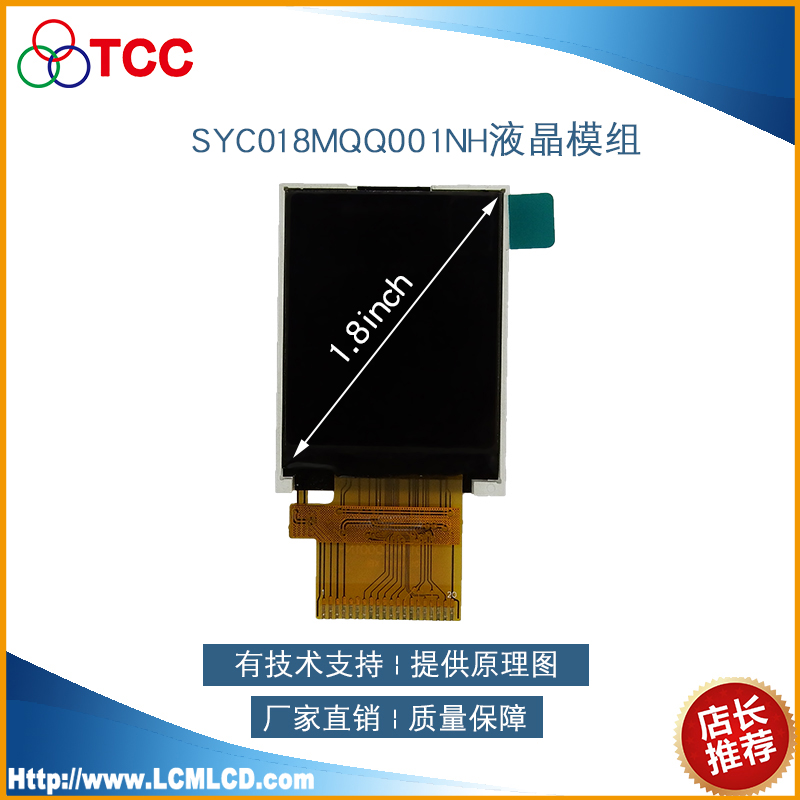

| SYC018MQQ001NH |
128*160 | 45.82*34*2.6 | 41.42*31.8 | 3V | ILI9163C | 圖片 | ||
| SYC177PQQ003SH |
128*160 | 46*34*2.6 | 41.42*31.8 | 3V | ST7735R | 圖片 | ||

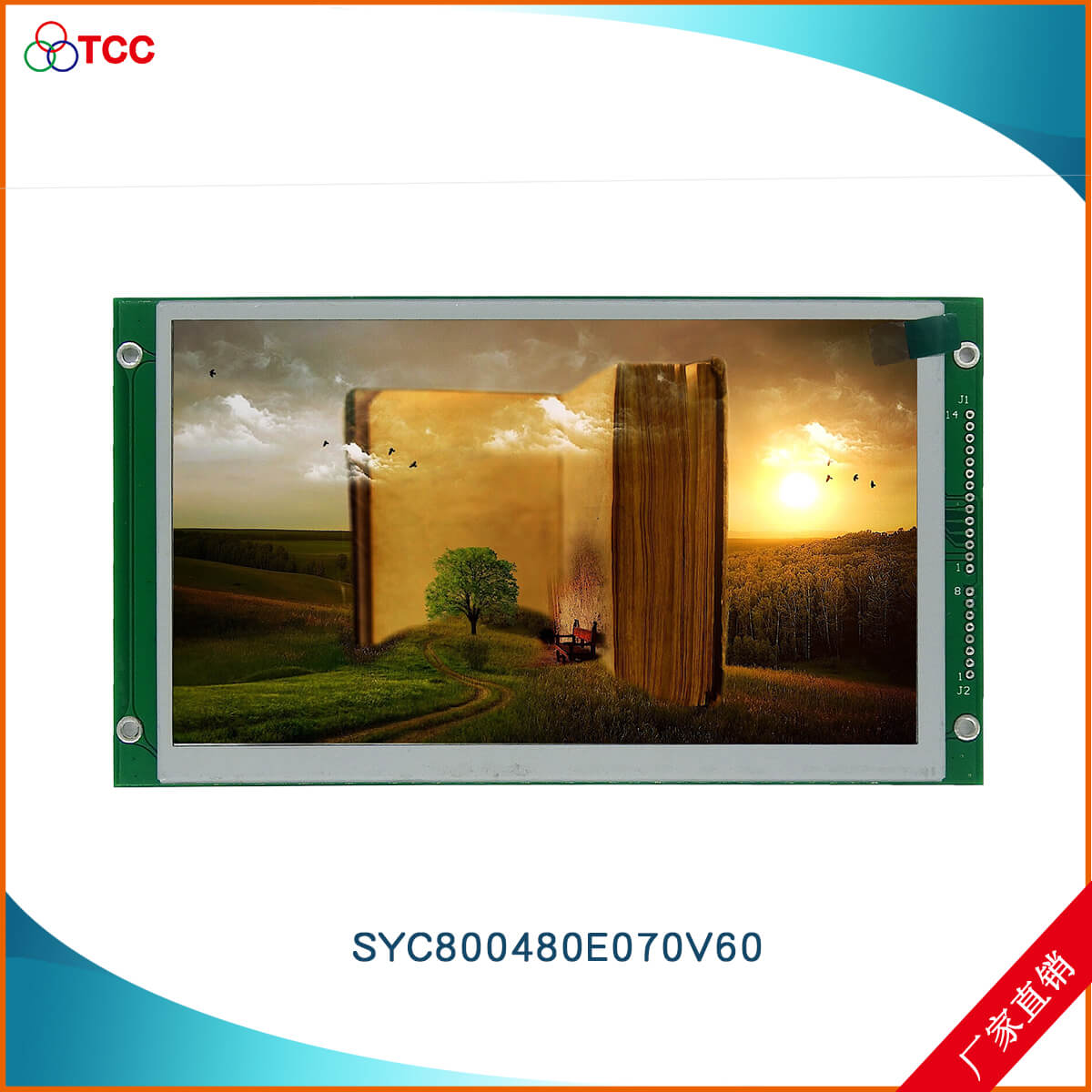

| SYC800480E070V60 |
800*480 | 187.50*104.90*12.80mm | 156.70*89.11mm | \ | VDD:3.3V | VBL:3.3v/ IBL:130mA 350cd/㎡ | TC76680 | 圖片 |

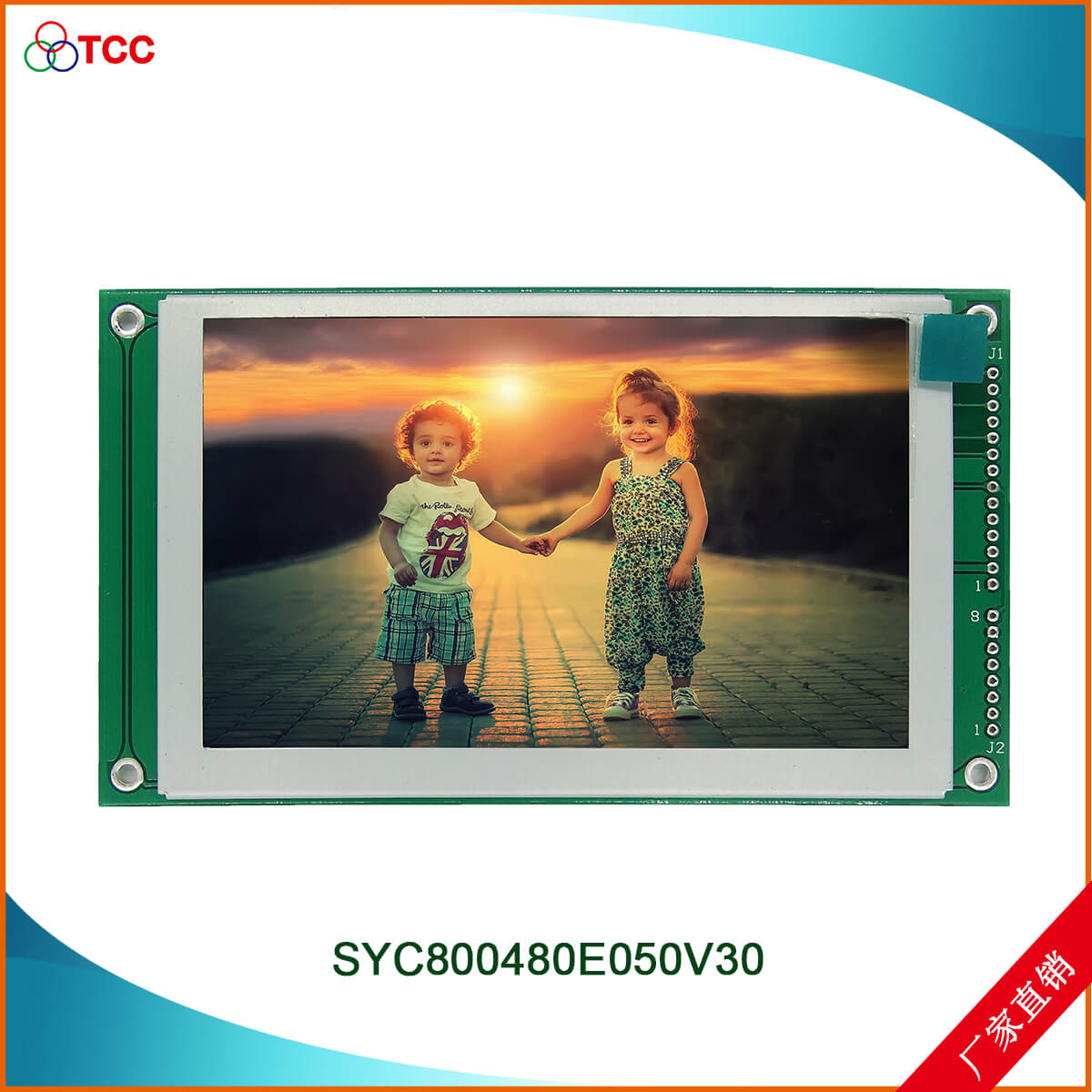

| SYC800480E050V30 |
800*480 | 143.51*80.91*7.60mm | 108.74*65.74mm | \ | VDD:3.3V | VBL:3.3v/ IBL:130mA 500cd/㎡ | TC76680 | 圖片 |

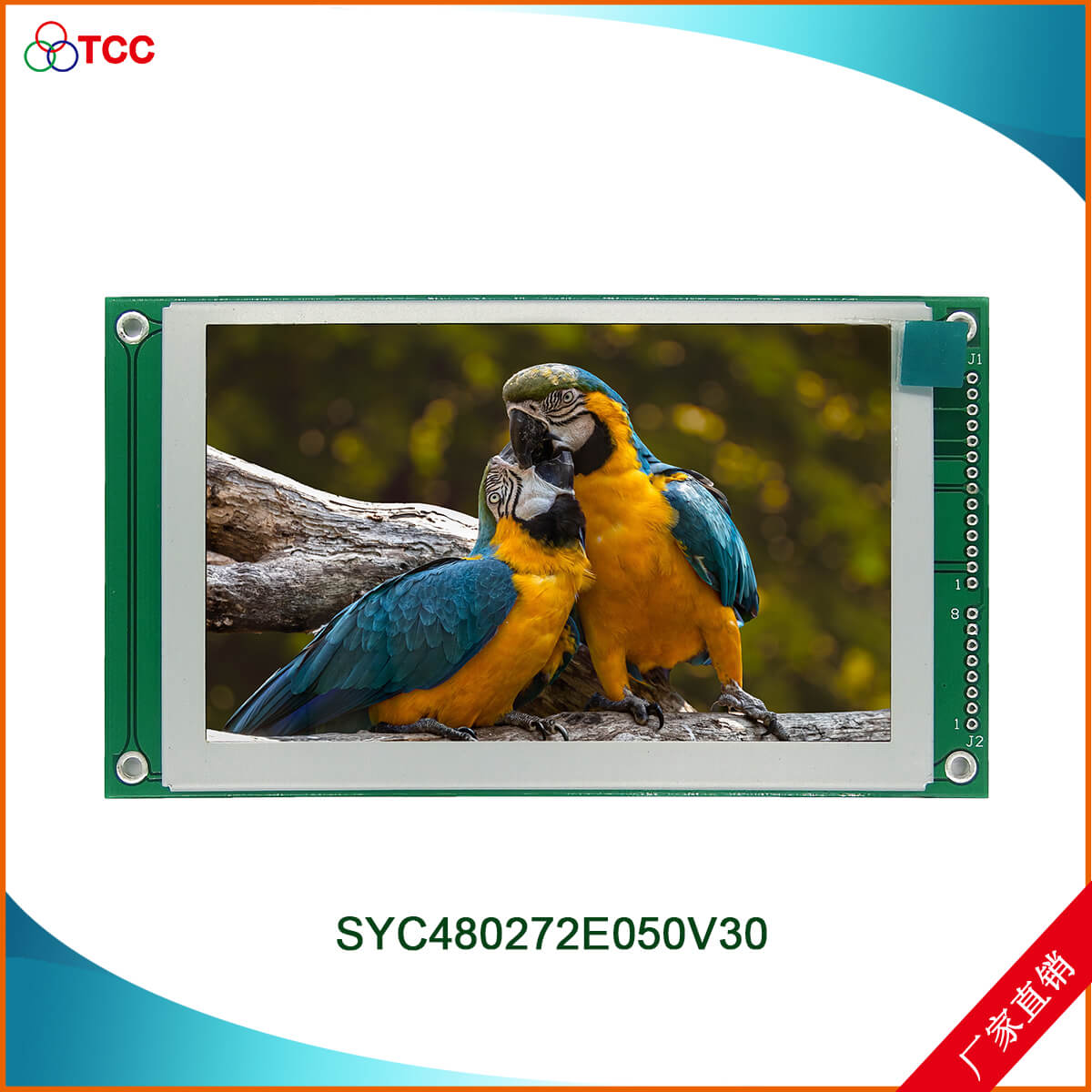

| SYC480272E050V30 |
480*272 | 143.51*80.91*7.60mm | 108.74*65.74mm | \ | VDD:3.3V | VBL:3.3v/ IBL:130mA 300cd/㎡ | TC76680 | 圖片 |
| SYC480272B043V31 |
480*272 | 122.02*74.68*7.10mm | 98.70*57.50mm | \ | VDD:3.3V | VBL:3.3v/ IBL:130mA 500cd/㎡ | TC76680 | 圖片 |
| SYC320240E035V30 |
320*240 | 92.98*70.17*7.30mm | 73.04*55.30mm | VDD:3.3V | VBL:3.3v/ IBL:130mA | TC76680 | 圖片 | |

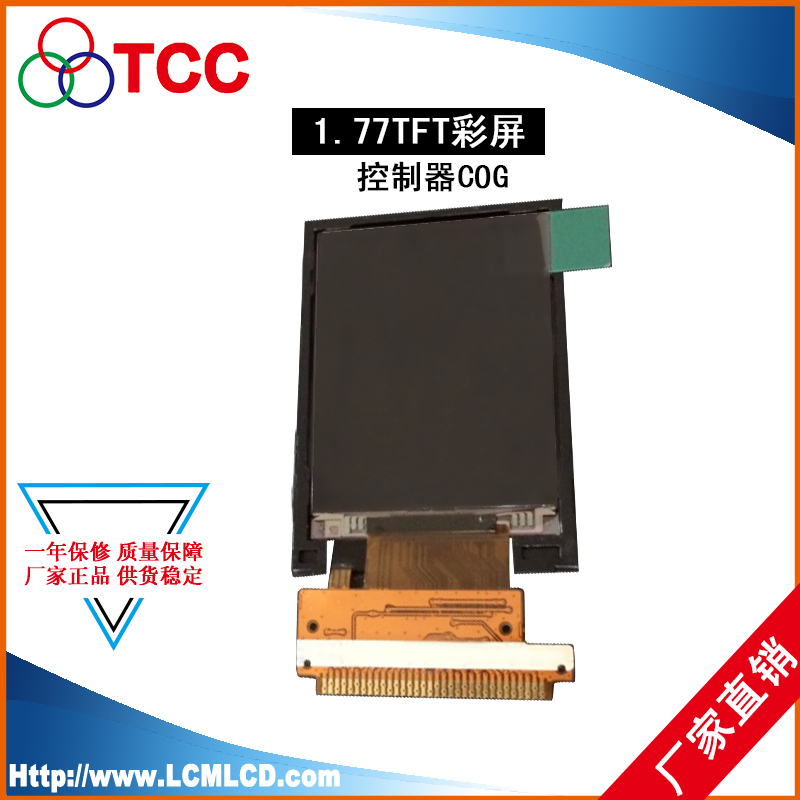

| 1.77TFT彩屏 |
128（rgb）*160 | 34.7*47*2.65 | 28.03*35.04 | 0.219*0.219 | LED | cog | 圖片 | |

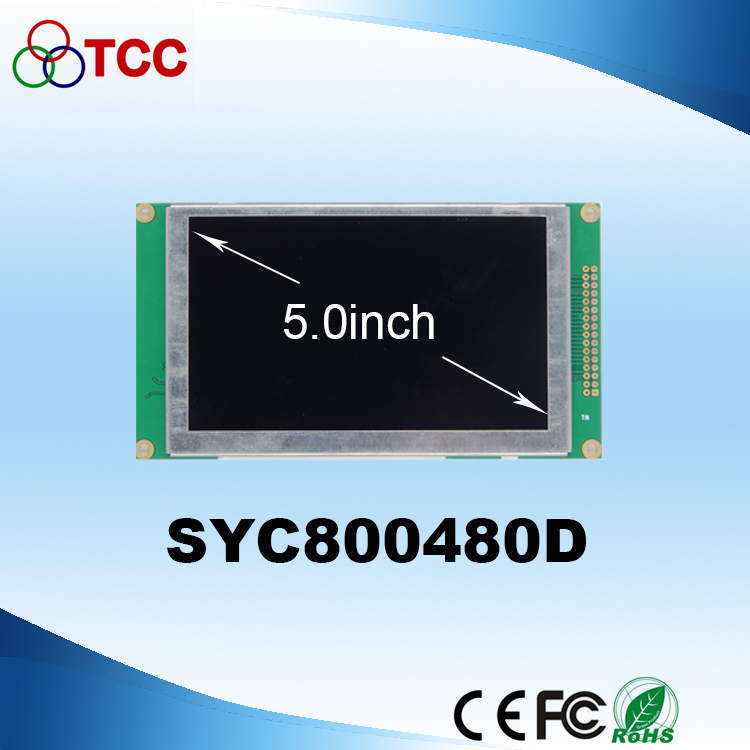

| SYC800480D050V8850 |
800*480mm | 120.7*75.9*7.0mm | 110.6*67.6mm | 0.198*0.198mm | 5vor3.3v | LED | RA8875 | 圖片 |

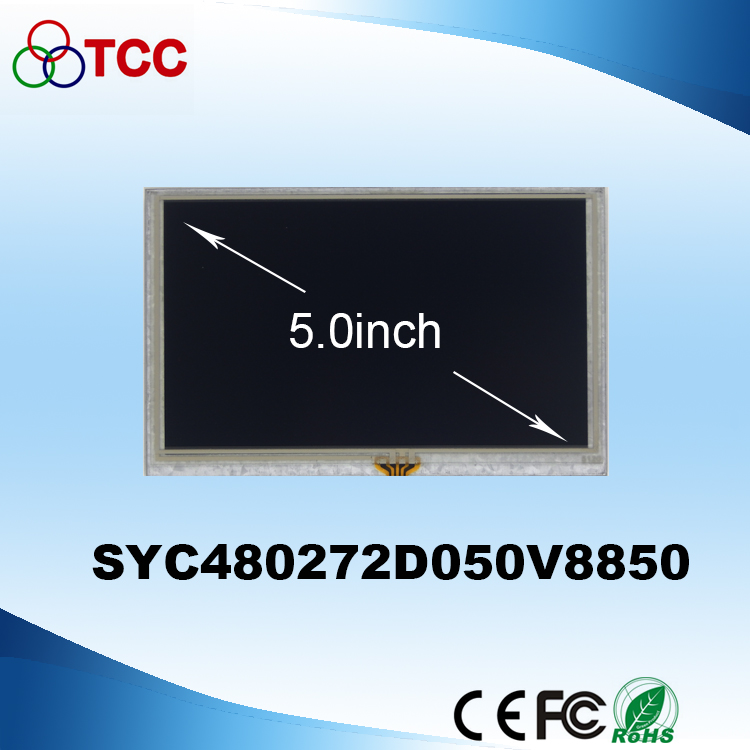

| SYC480272D050V8850 |
480*272mm | 120.7*75.9*7.0mm | 110.6*67.6mm | 0.198*0.198mm | 5Vor3.3V | LED | RA8875 | 圖片 |
| SYC800480B070V1970 |
800*480mm | 164.9*100*8.3mm | 156.6*89.25mm | 5v或3v | LED | SSD1963 | 圖片 | |
| SYC800480D050V1950 |
800*480mm | 120.7*75.9*5.5mm | 110.6*67.6mm | 0.198*0.198mm | 5vor3.3v | LED | SSD1963 | 圖片 |
| SYC480272B043V1943 |
480*272 | 105.5*67.2*5.5mm | 98.7*57.5mm | 0.198*0.198mm | 5vor3.3v | LED | SSD1963 | 圖片 |
| SYC480272B043V8843 |
480*272mm | 105.5*67.2*5.5mm | 98.7*57.5mm | 0.198*0.198mm | 5vor3.3v | LED | RA8875 | 圖片 |
| SYC800480OD050V10 |
800*480mm | 142*78.79*7.6mm | 108.74*65.74mm | 5Vor3.3V | LED | RA8875 | 圖片 | |

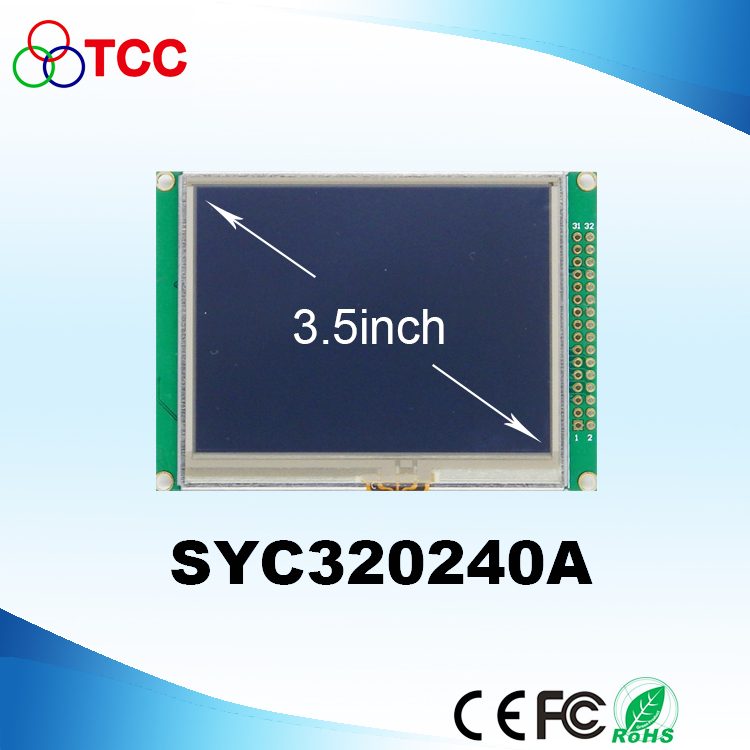

| SYC320240A035V21 |
320*240mm | 89.75*64.99*7.3mm | 73.04*53.0mm | 5Vor3.3V | LED | RA8875 | 圖片 | |

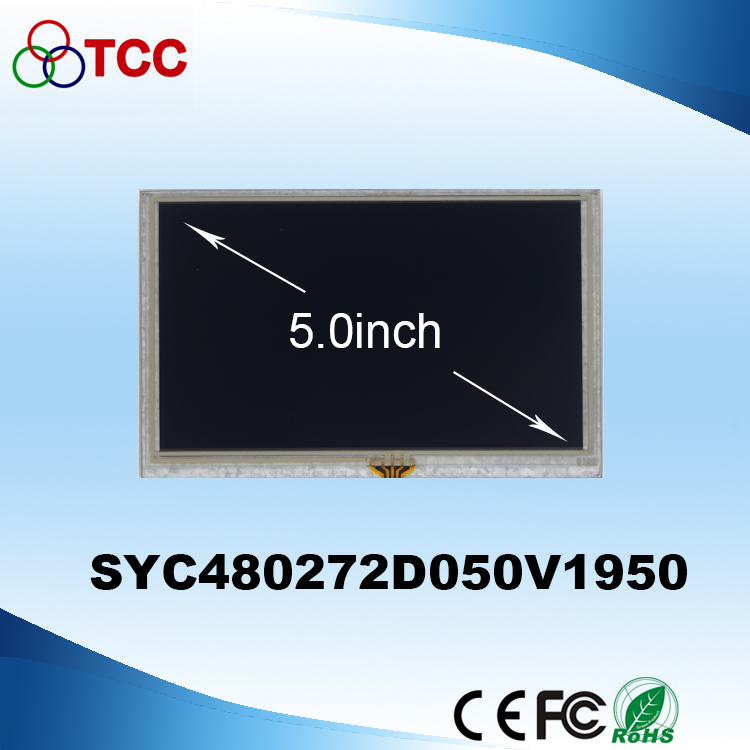

| SYC480272D050V1950 |
480*272mm | 120.7*75.9*5.5mm | 110.6*67.6mm | 0.198*0.198mm | 5vor3.3v | LED | SSD1963 | 圖片 |

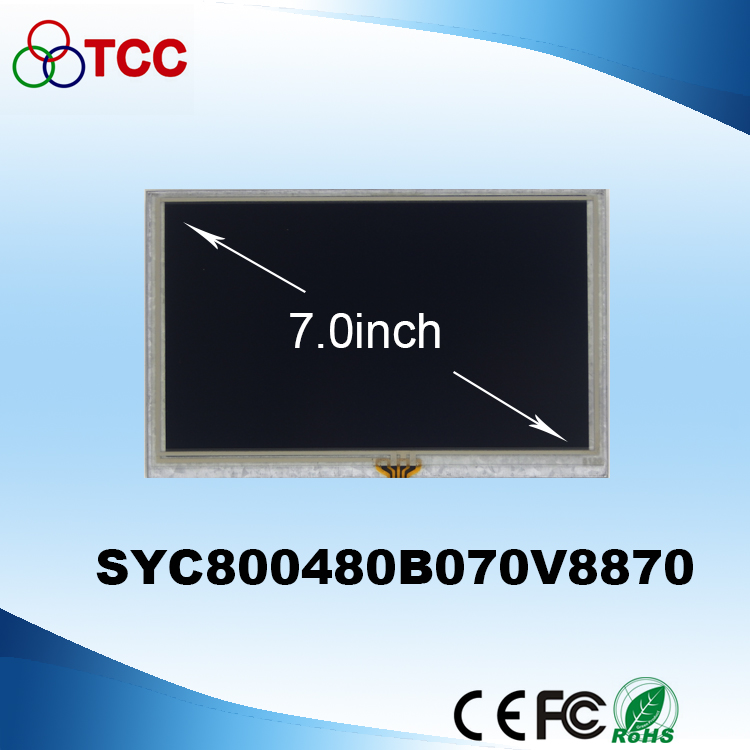

| SYC800480B070V8870 |
800*480mm | 164.9*100*10mm | 156.6*89.25mm | 5Vor3.3V | LED | RA8875 | 圖片 | |
| SYC320240A035V11 |
320*240mm | 89.8*65.0*7.3mm | 73.0*55.3mm | 5Vor3.3V | LED | SSD1963 | 圖片 |
| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |
| SYD段碼液晶模塊定制 |
段碼液晶模塊定制 | 段碼LCD | 筆段式LCD | VA TN HTN STN | 5Vor3.3V | LED | 圖片 | |
| SYD46571 |
465*71 | 63.16*27*1 | 3.3V | HT1621 | 圖片 | |||
| SYM1035V1V10 |
段碼 | 100*60*10 | 85*32 | ** | 5V | LED | HT1621 | 圖片 |
| SYD71189 |
段碼 | 248*167*7.2 | 198*110 | ** | 5V | LED | ** | 圖片 |
| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |
| SYO128646001 |
128x64 | 26.70×19.26×1.45 | 21.744×10.864 | 0.154×0.154 | 3.0V | NO | SSD1306 | 圖片 |
| SYO128640242001 |
128x64 | 60.5x37.0x2.0 | 57.0x29.4 | 0.40x0.40 | Passive Matrix | SSD1309 | 圖片 | |

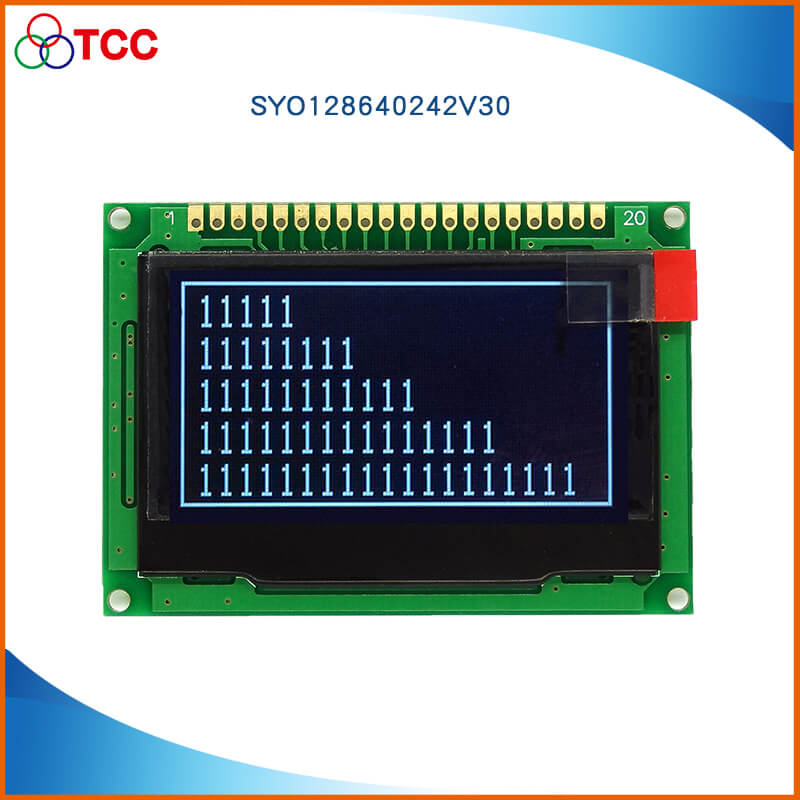

| SYO128640242V30 |
128x64 | 70.5x49.6x5.9 | 57.0x29.5 | 0.39x0.39 | SSD1309 | 圖片 | ||

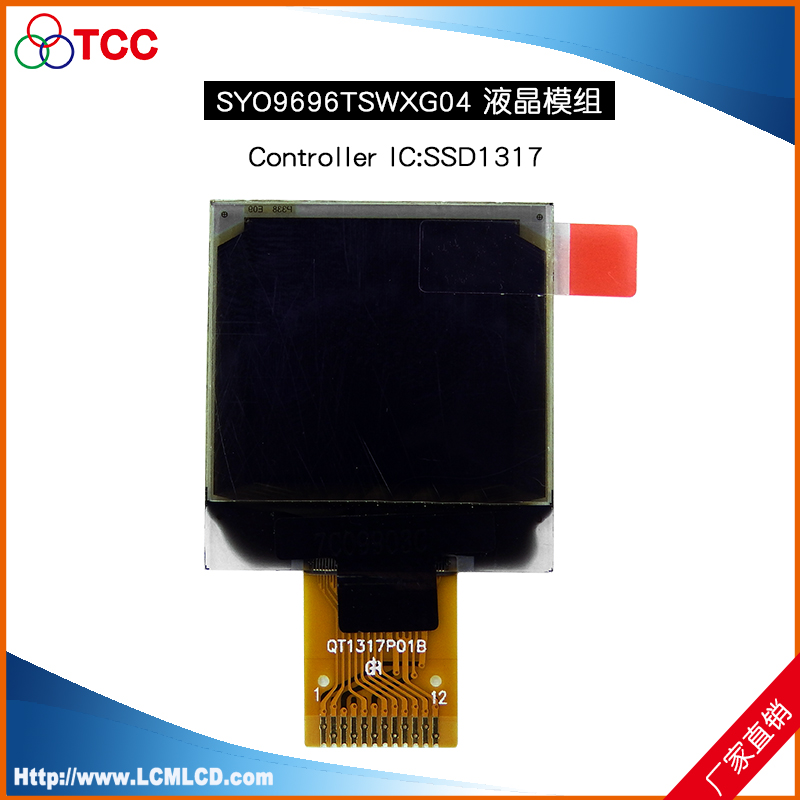

| SYO9696TSWXG04 |
96x96 | 24.0x25.7x1.2 | 19.2x19.2 | 0.16x0.16 | 圖片 | |||

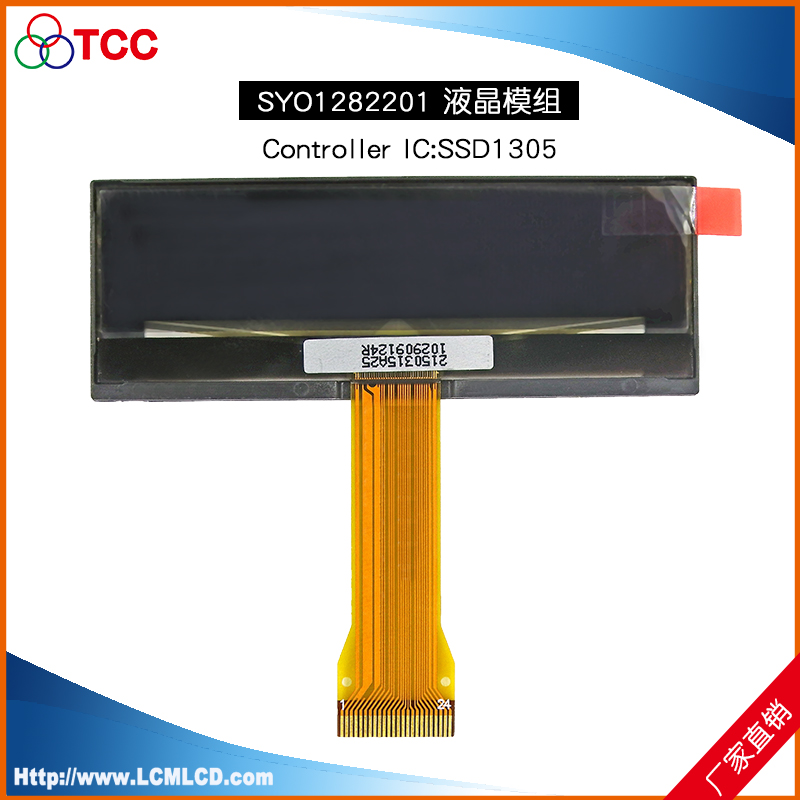

| SYO1282201 |
128x22 | 64.8x23.5x2.1 | 60.8x13.8 | 0.43x0.51 | Oled(Yellow) | SSD1305 | 圖片 | |
| SYO128640242V10 |
128*64 | 72.0*43.0*6.0 | 57.0x29.5 | 0.4*0.4 | _ | OLED White | SSD1309 | 圖片 |

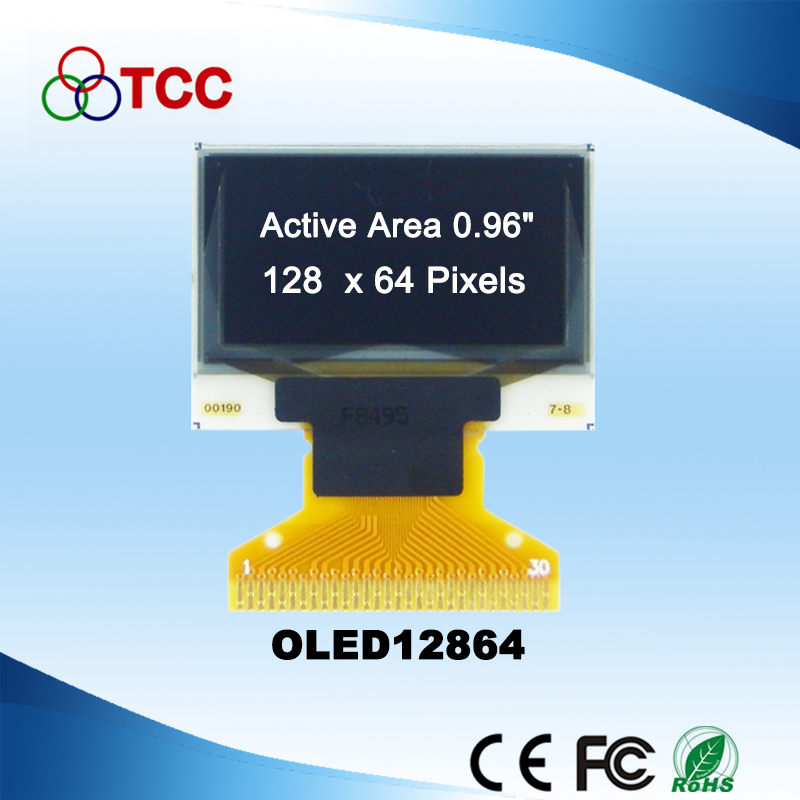

| SYO12864B03-3C135WN2-WCE |
128*64 | 26.7*19.26 | 23.74*12.864 | 0.154*0.154 | 3.3V | SSD1306 | 圖片 | |

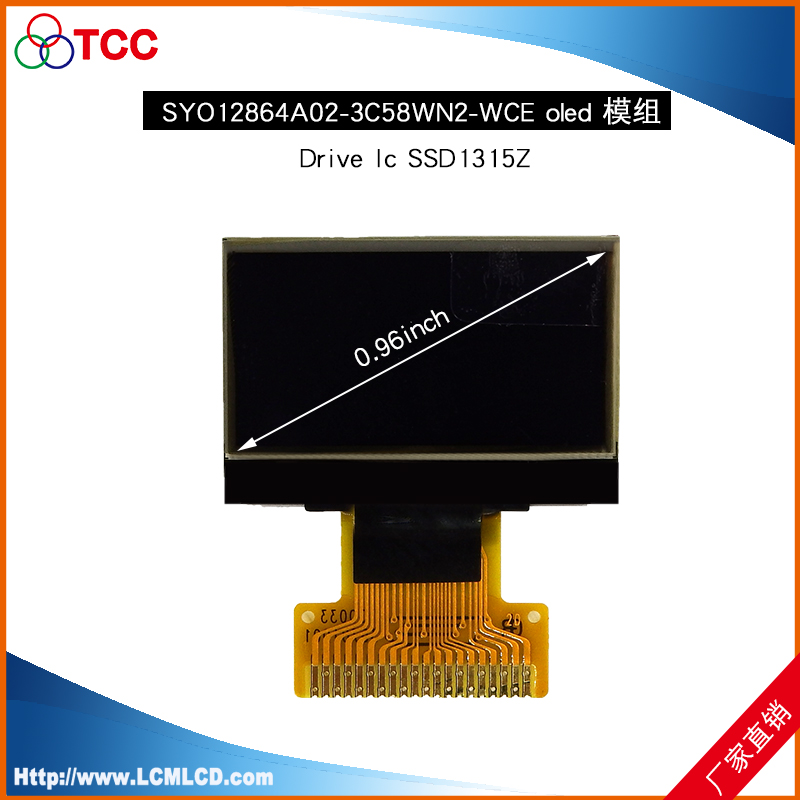

| SYO12864A02-3C58WN2-WCE |
128*64 | 24.74*16.9*1.42 | 22.74*11.86 | 0.15*0.15 | 3.3V | SSD1315Z | 圖片 | |

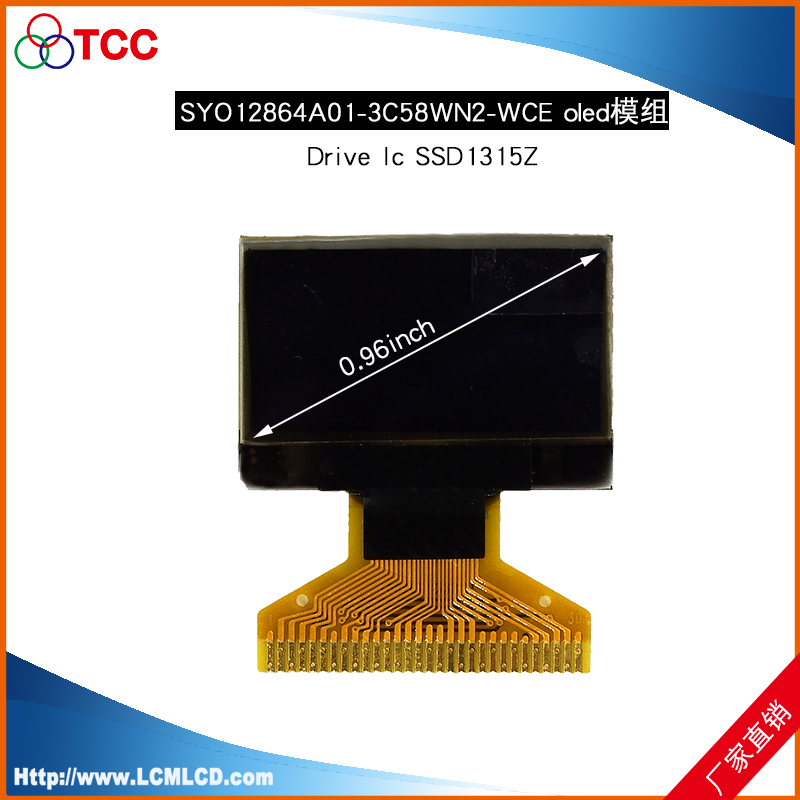

| SYO12864A01-3C58WN2-WCE |
128*64 | 24.74*16.9*1.42 | 22.74*11.86 | 0.15*0.15 | 3.3V | SSD1315Z | 圖片 | |

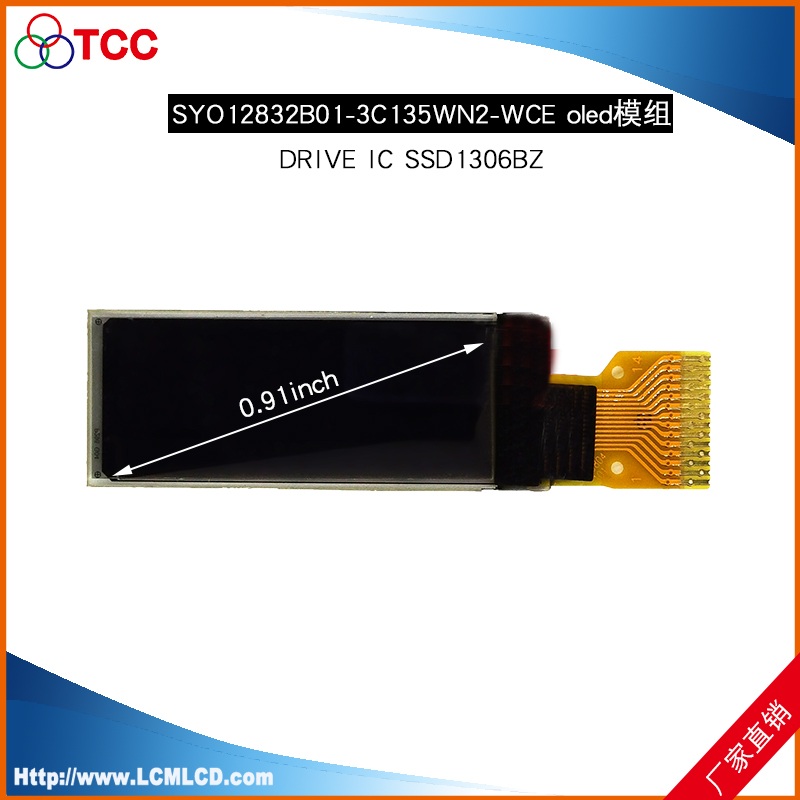

| SYO12832B01-3C135WN2-WCE |
128*32 | 30*11.5*1.22 | 24.384*7.584 | 0.159*0.159 | 3.3V | SSD1306BZ | 圖片 | |
| SYO12832A00-3C61WN2-WCE |
128*32 | 29*8.7*1.22 | 22.856*6.82 | 0.147*0.147 | 3.3V | SSD1316Z | 圖片 | |

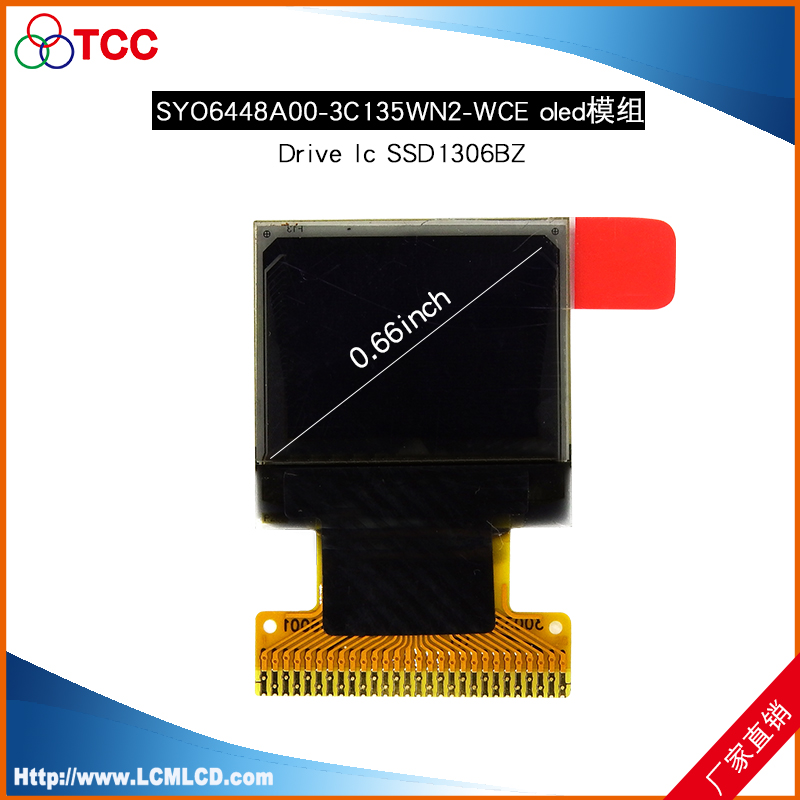

| SYO6448A00-3C135WN2-WCE |
64*48 | 18.46*18.1*1.21 | 15.42*12.06 | 0.19*0.19 | 3.3V | SSD1306BZ | 圖片 | |

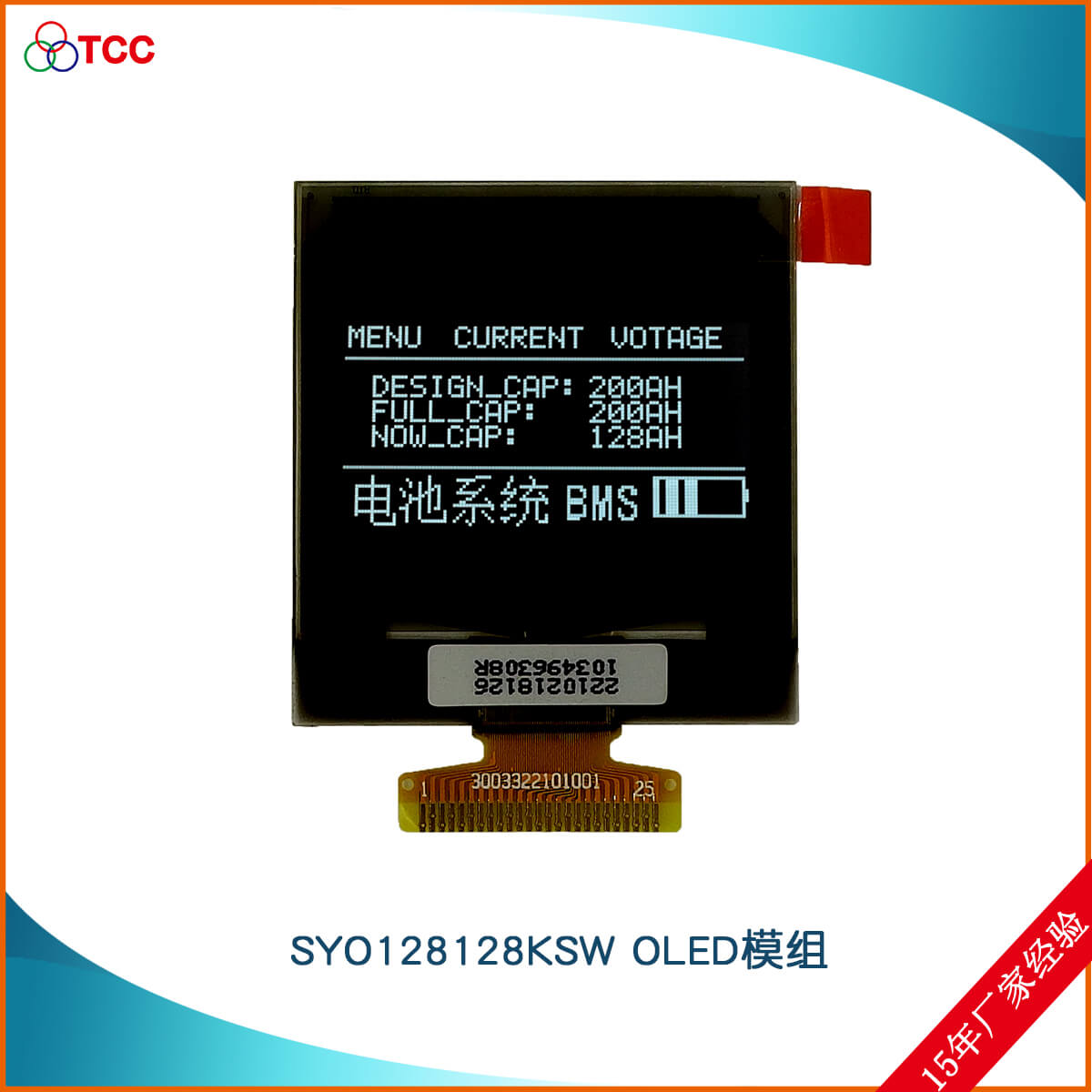

| SYO128128KSWHG01015A |
128*128 | 33.80*36.50*1.41mm | 28.86*28.86mm | 0.19*0.19mm | \ | NO | SSD1327 | 圖片 |
| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |
| 型號 | 字符X行數 | 外形尺寸 WxHxT(mm) |
視域尺寸 WxH(mm) |
點尺寸 WxH(mm) |
模塊電壓 | 背光類型 | 控制器 | 產品圖片 |
網站首頁 | 關于三元晶 | 產品中心 | 產品圖片 | 新聞中心 | 技術支持 | 聯系我們
電話：0755-29644105
傳真：0755-29644104
地址：深圳市寶安區西鄉勒竹角鴻竹雍啟科技園2棟6樓
友情鏈接：
三元晶淘寶店
三元晶阿里店
三元晶液晶專銷店
液晶顯示屏工廠店
三元晶中國制造網店
三元晶阿里巴巴國際站
深圳lcd
高路數液晶屏店
深圳Lcm
TFT彩屏
320240液晶屏
友鏈QQ：
